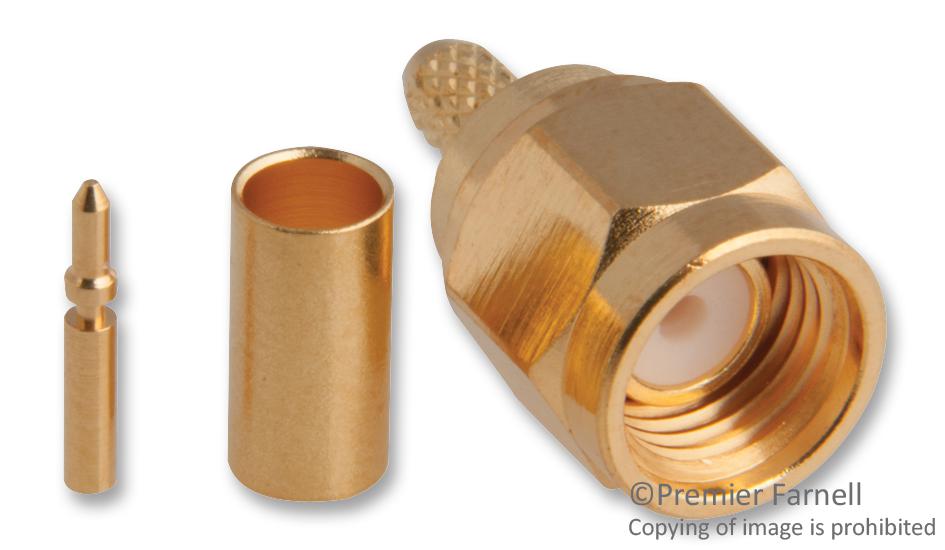

Johnson-Cinch Connectivity Solutions 1420403011 RF Coaxial Connector
The RF/Coaxial Connector is an SMA straight crimp type plug with a gold-plated brass body and contacts, providing high reliability for RF applications up to 12.4 GHz. Designed for full crimp termination, it supports cables like RG161, RG174, RG188, and RG316, ensuring excellent electrical performance and durability. Its 50-ohm impedance makes it ideal for demanding environments such as aerospace, military, defense, signal processing, and 5G wireless communications. Precision-engineered for secure connection, it offers superior VSWR and low insertion loss, ensuring signal integrity across wide frequency ranges.
Johnson-Cinch Connectivity Solutions 1420403011 RF Coaxial Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-12.4 GHz
- Insertion Loss: 0.06 *f(GHz), tested at 6 GHz for flexible cable connectors
- VSWR: 0.05 ° (GHz), tested at 10 GHz for cabled connectors
- Insulation Resistance: 5000 megohms minimum
- Contact Resistance: 3.0 milliohms initial, 4.0 milliohms after environmental testing
- Working Voltage: 170 Vrms at sea level, 45 Vrms at 70,000 feet
- Power Rating: 0.5 watt @ +25°C, derated to 0.25 watt @ +125°C
- Temperature Range: -65°C to +165°C
- Mechanical Engagement: MIL-C-39012 standard, engagement/disengagement force max 2 inch-pounds
- Bulkhead Mounting Nut Torque: 15 inch-pounds
- Materials: Brass body with gold plating, beryllium copper contacts, PTFE insulators
- Durability: 500 cycles minimum
Buy the Buy Emerson SMA Part Number 1420403011 Online
Order the Emerson SMA RF coaxial connector part number 1420403011 online today. This 50-ohm, gold-plated brass connector supports frequencies up to 12.4 GHz and features high durability, low insertion loss, and excellent environmental resistance. Perfect for aerospace, military, defense, and wireless communication systems, its precision design ensures stable connections and signal integrity. Easy to install with full crimp capabilities, it guarantees reliable performance in demanding applications. Enhance your RF systems by purchasing this high-quality connector online now for fast delivery and dependable operation.
Get Emerson SMA connector part number 1420403011 today—built for high-frequency reliability and lasting durability in RF applications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420403011?
You can click on the BUY or RFQ button to purchase 1420403011 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420403011?
You can download the 1420403011 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420403011?
Johnson-Cinch Connectivity Solutions
