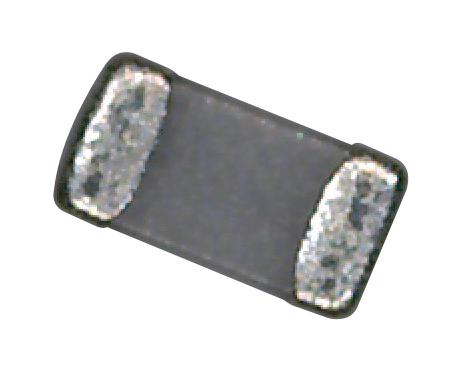

KEMET C0402C470J3GACTU Ceramic Capacitor
KEMET's C0402C470J3GACTU ceramic capacitor features a 47 pF capacitance, 5% tolerance, and 25 VDC voltage rating. It belongs to the C Series C0G dielectric family, known for high stability and low loss, suitable for resonant and high-Q circuits. This ultra-stable, Class I dielectric material exhibits negligible capacitance variation from -55°C to +125°C, with a maximum temperature of 125°C. The component is RoHS compliant, tin-terminated, and designed with a small 0402 chip size. It offers excellent thermal stability, low ESR/ESL, and zero piezoelectric noise, making it ideal for precision applications.
KEMET C0402C470J3GACTU Ceramic Capacitor Specifications:
- Capacitance: 47 pF
- Capacitance Tolerance: 5%
- Voltage DC: 25 VDC
- Dielectric: C0G/NP0, Class I
- Temperature Range: -55°C to +125°C
- Maximum Operating Temperature: 125°C
- Dimensions: 0402 chip size (1.0 x 0.5 mm)
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- RoHS Compliant: Yes
- Termination: Tin
- Marking: No
- Shelf Life: 78 Weeks
- MSL: 1
- Packaging: T&R, 180 mm paper tape
- Withstand Voltage: 62.5 VDC
- Maximum Peak Voltage: 62.5 VDC
- Weight: 1060 micrograms
Buy the KEMET Series COG Ceramic Capacitor: C0402C470J3GACTU
Enhance your electronic designs today by ordering the KEMET Series COG ceramic capacitor. With a 47 pF capacitance, 5% tolerance, and a rated voltage of 25 VDC, this ultra-stable, low-loss capacitor is ideal for resonant and high-Q circuits. Its Class I C0G dielectric offers exceptional thermal stability over a temperature range of -55°C to +125°C, with negligible capacitance change. Perfect for applications requiring high precision, low ESR, ESL, and no piezoelectric noise. Secure your supply now through our online store for reliable performance in your critical electronics projects.
Order your KEMET Series COG ceramic capacitor today and ensure high stability and low loss performance for your precision electronics projects.
Frequently Asked Questions
Where can I buy KEMET C0402C470J3GACTU?
You can click on the BUY or RFQ button to purchase C0402C470J3GACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0402C470J3GACTU?
You can download the C0402C470J3GACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0402C470J3GACTU?
KEMET
