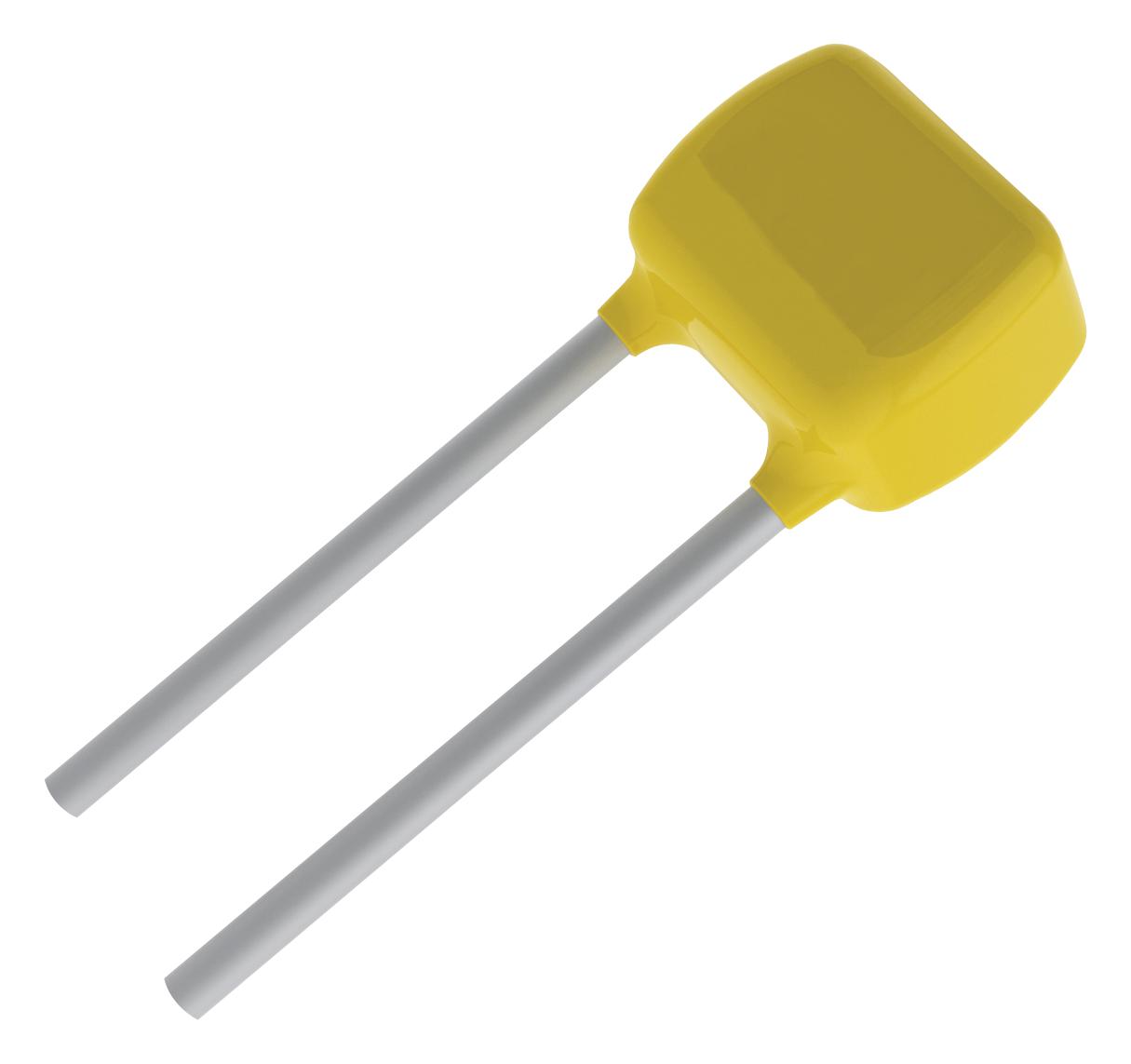

KEMET C316C101J1G5TA7301 100pF Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor designed for commercial applications requiring high stability and reliability. It offers a capacitance of 100 pF with a 5% tolerance and a voltage rating of 100 VDC. The C0G dielectric provides excellent temperature stability, making it suitable for a wide range of electronic circuits. Typical applications include decoupling, filtering, and timing circuits in consumer electronics, industrial equipment, and automotive systems. Its radial lead configuration allows for easy mounting on printed circuit boards.
KEMET C316C101J1G5TA7301 100pF Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 100 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 5.84mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- H0: 16mm +/-0.5mm
- F: 0.51mm +0.1/-0.025mm
- E: 5.08mm NOM
- Packaging: T&R, 305mm
- Packaging Quantity: 2500
