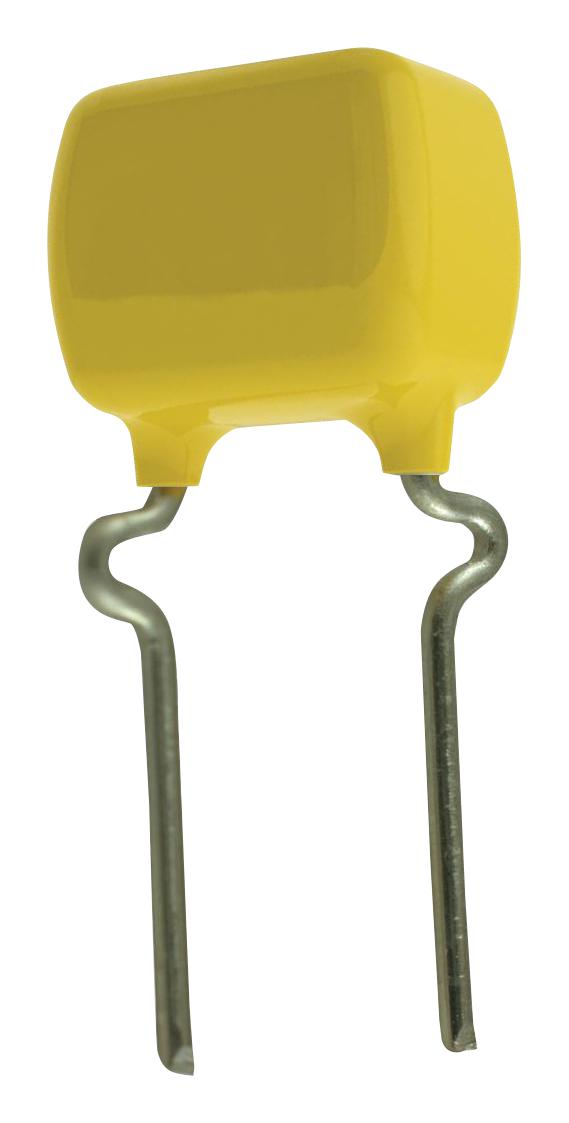

KEMET C316C103K5R5TA7303 Ceramic Capacitor
The KEMET GoldMax 300 Comm X7R ceramic capacitor offers reliable performance in a compact radial package. Designed for commercial applications, this capacitor provides stability and durability. Its X7R dielectric ensures predictable capacitance change over temperature, while the tin termination facilitates easy integration into various circuits. With a capacitance of 0.01uF and a voltage rating of 50VDC, it's suitable for a wide range of electronic devices and systems. The capacitor's robust construction and adherence to industry standards make it a dependable choice for demanding applications.
KEMET C316C103K5R5TA7303 Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 0.01 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 0.15, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 5.84mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- H0: 18mm MIN
- F: 0.51mm +0.1/-0.025mm
- E: 5.08mm NOM
- Packaging: T&R, 305mm
- Packaging Quantity: 2500
