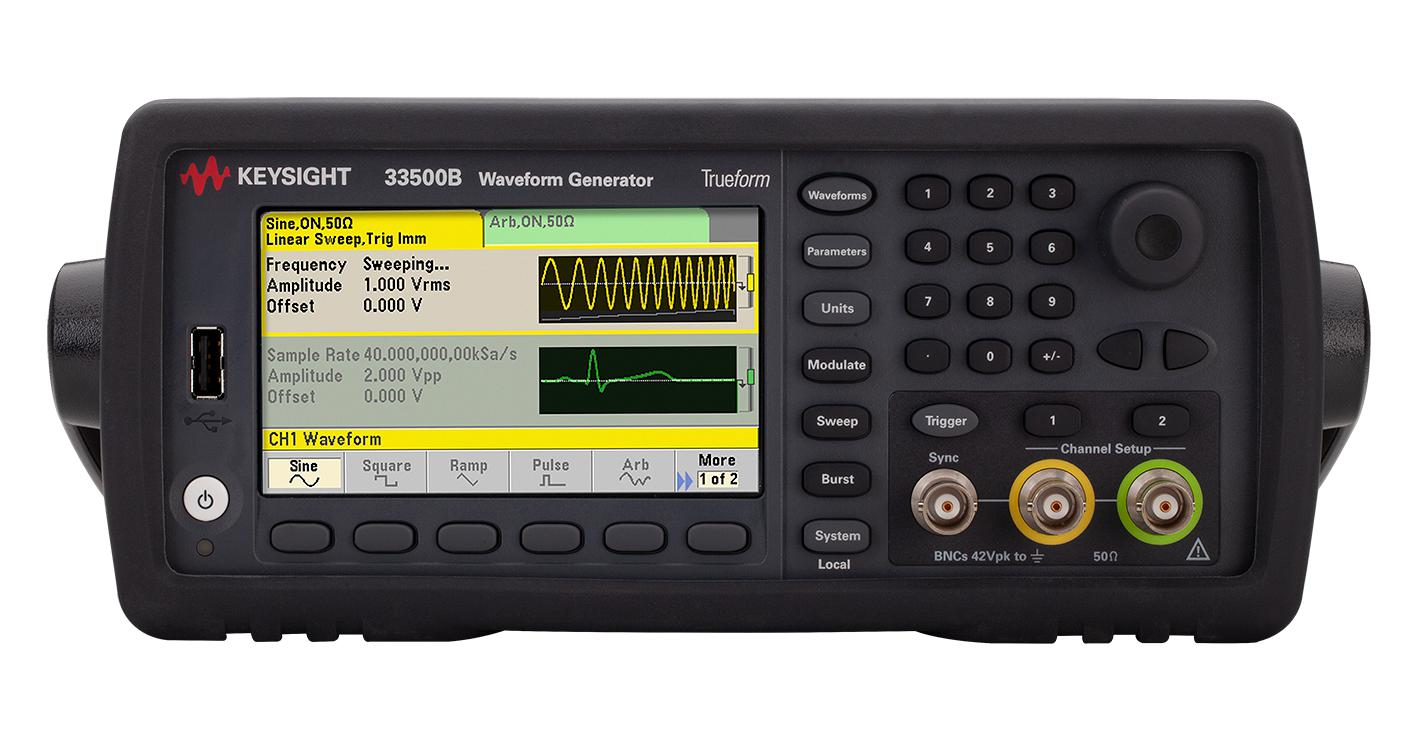

KEYSIGHT TECHNOLOGIES 33512B Waveform Generator
The 33500B Series waveform generators provide essential signals and features such as modulation, sweep, and burst capabilities, along with advanced options for enhanced flexibility. Features include an intuitive front-panel user interface for easy operation, built-in LAN, USB, and GPIB interfaces for remote control and waveform transfer. The device offers a 20 MHz, 2-channel output with independent setting of leading and trailing edge times, dual-channel coupling (including frequency, amplitude, and phase), and the ability to set start phase and phase shift between channels. It supports waveform summation, multi-tone generation, and noise on pulse functionalities. Memory capacity is up to 1 million samples standard, expandable to 16 million, with option to connect arbitrarily generated waveforms into sequences of up to 512. The instrument features a voltage range as low as 1 mVpp, with high and low voltage limits to protect your device under test. It also includes standard PRBS patterns and custom PN sequences, allowing selection of PN type, bit rate, and edge time, making it suitable for applications in sensing and instrumentation, signal processing, and test and measurement environments.
KEYSIGHT TECHNOLOGIES 33512B Waveform Generator Specifications:
- Maximum frequency: 20 MHz
- Number of channels: 2
- Memory: 1 MSa standard, upgradeable to 16 MSa
- Waveform length: Up to 1 MSa (16 MSa with option MEM)
- Sample Rate: 1 Sa/s to 160 MSa/s (models vary)
- Voltage Range: 1 mVpp to 10 Vpp into 50Ω, 2 mVpp to 20 Vpp open circuit
- Impedance: 50Ω
- Frequency resolution: 1 Hz
- Output impedance: 50Ω
- Output levels: 0 to +1.5 V or +3.0 V (nominal)
- Phase accuracy: ±1°, phase shift resolution: 0.1°
- Jitter: <1 ps
- Waveform types: Sine, Square, Ramp, Triangle, Gaussian Noise, PRBS, User-defined arbitrary
- Interface: LAN, USB, GPIB, USB thumb drive
- Size: 261.1 mm W x 103.8 mm H x 303.2 mm D
- Weight: 3.3 kg
- Operation temperature: 0°C to 55°C
- Storage temperature: -40°C to 70°C
Buy the Buy Keysight 33512B Part Number 33512B Online
Purchase the Keysight 33512B waveform generator online today and streamline your testing process. Featuring high memory capacity, advanced modulation, and flexible waveform sequencing, it meets demanding measurement needs. Its dual-channel output allows precise synchronization and phase control, ideal for signal analysis, communications, and instrumentation. Connect effortlessly via LAN, USB, or GPIB, making remote operation simple. Invest now to enhance your testing accuracy and efficiency in signal generation tasks, with easy upgrades available for future requirements.
Buy Keysight 33512B now and experience unmatched flexibility and precision for your signal testing needs.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES 33512B?
You can click on the BUY or RFQ button to purchase 33512B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 33512B?
You can download the 33512B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of 33512B?
KEYSIGHT TECHNOLOGIES
