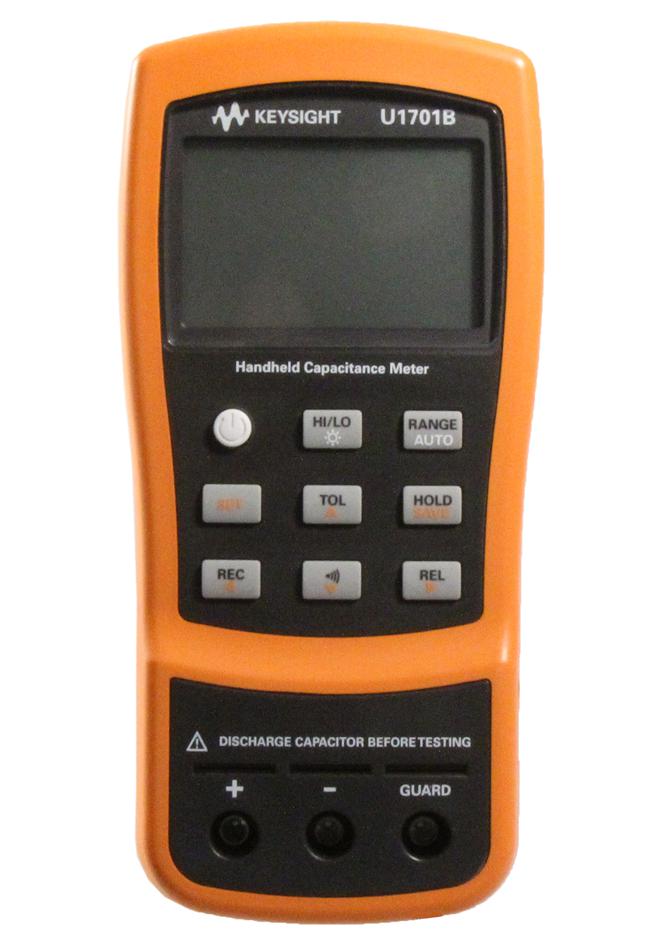

KEYSIGHT TECHNOLOGIES U1701B Capacitance Meter
The Keysight U1701B handheld capacitance meter is a versatile and reliable tool designed for fast, precise capacitance testing across various electronic applications. Featuring an 11,000 counts resolution, a measurement range up to 199.99 mF, dual backlit display, and functions like tolerance, compare mode with up to 25 limit sets, and data logging, this robust device enhances capacitor sorting and troubleshooting. Its sealed, overmolded body, low power consumption, and comprehensive accessories make it ideal for maintenance, assembly, and repair tasks, ensuring dependable performance in industrial environments.
KEYSIGHT TECHNOLOGIES U1701B Capacitance Meter Specifications:
- Display: 4-digit liquid crystal display with maximum 11,000 counts and automatic polarity indication
- Measurement Range: up to 199.99 mF
- Resolution: 0.01 mF at max range, 0.1 pF at lower ranges
- Accuracy: 1% +10 counts at 23°C ±5°C under 80% R.H.
- Power Supply: 9V alkaline battery (NEDA 1604A or IEC 6LR61), optional AC adapter
- Battery Life: Approximately 80 hours without backlight
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Dimensions: 184mm x 87mm x 41mm
- Weight: 320g
- Safety: IEC 61010-1 compliant, Pollution Degree 2
Buy the Buy Keysight U1701B Handheld Capacitance Meter Part Number U1701B Online
Purchase the Keysight U1701B capacitance meter online and ensure precise, quick measurements for electronic testing, repair, and troubleshooting. This portable device features an 11,000 counts resolution and measures up to 199.99 millifarads, making capacitor sorting and testing efficient. Its dual backlit display, multiple modes including tolerance and relative, and data logging capacity enhance your workflow. Built with a rugged overmolded design, it offers exceptional reliability, safety, and ease of use. Get yours now and elevate your electronic maintenance and repair projects with confidence.
Order your Keysight U1701B handheld capacitance meter today and experience accurate, portable testing for electronic components and maintenance tasks.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES U1701B?
You can click on the BUY or RFQ button to purchase U1701B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part U1701B?
You can download the U1701B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of U1701B?
KEYSIGHT TECHNOLOGIES
