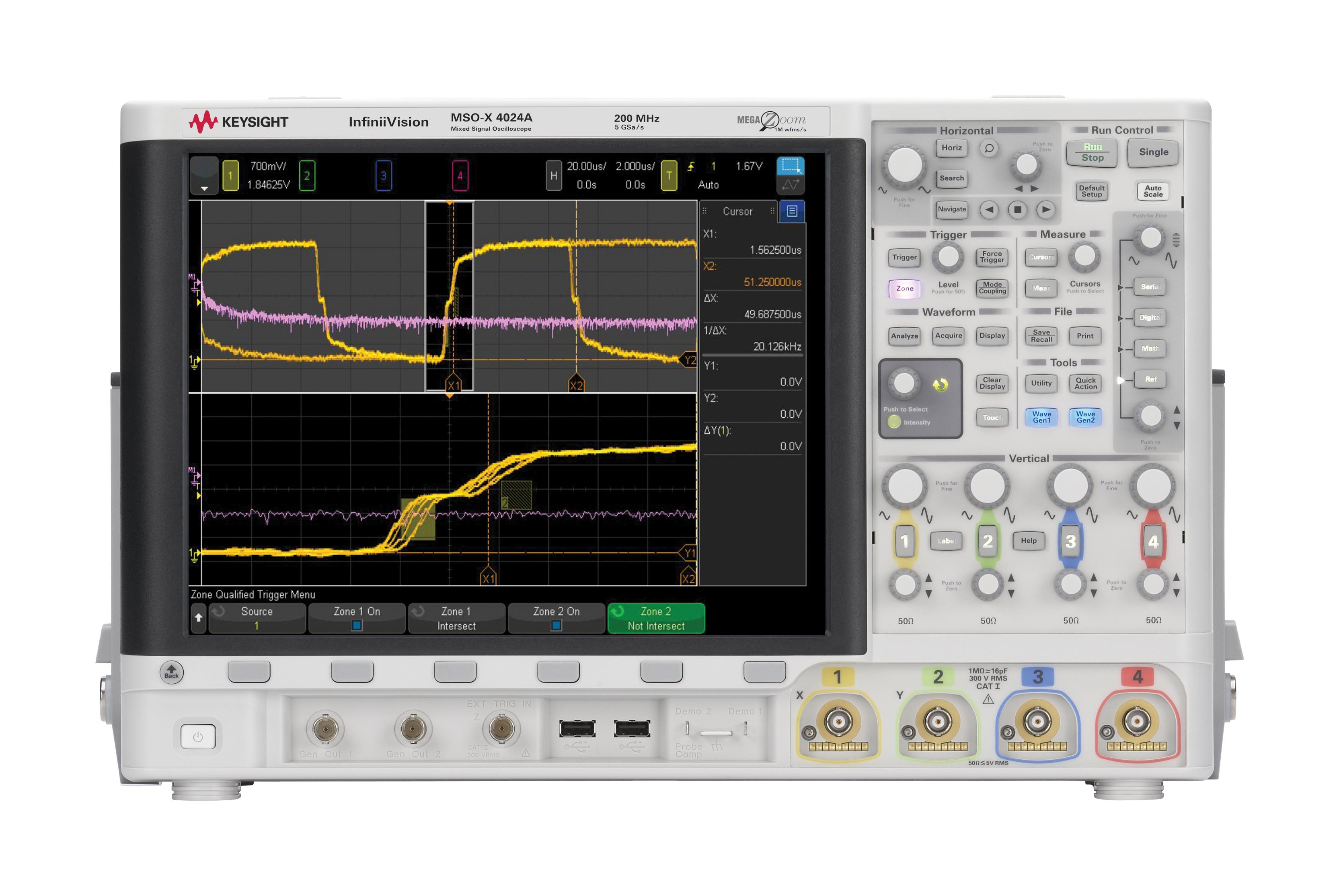

KEYSIGHT TECHNOLOGIES DSOX4024A oscilloscope
The InfiniiVision 4000 X-Series features the industry's largest 12.1-inch capacitive touch screen, designed for intuitive touch-based operation. This oscilloscope simplifies setup and enhances testing efficiency with capabilities such as the InfiniiScan Zone touch trigger, allowing users to easily draw a box around signals of interest to generate automatic triggers. Its MegaZoom IV smart memory technology offers an industry-leading update rate of one million waveforms per second, enabling detailed analysis of elusive and complex signals. The standard segmented memory provides deep data capture, making it an effective tool for maintenance, repair, and advanced testing applications.
KEYSIGHT TECHNOLOGIES DSOX4024A oscilloscope Specifications:
- Display: 12.1-inch high-definition capacitive touch LCD with 800 x 600 pixel resolution
- Waveform update rate: > 1,000,000 waveforms per second
- Bandwidth: 200 MHz to 1.5 GHz depending on model (e.g., 4024A: 350 MHz, 4054A: 1.5 GHz)
- Input channels: 2 or 4 analog channels; optional 16 digital channels (MSO models)
- Maximum sample rate: 5 GSa/s (half channel interleaved)
- Memory depth: 4 Mpts standard, segmented memory
- Triggering: InfiniiScan Zone trigger, edge, pulsed, serial bus, and complex conditions
- Measurement functions: 36 automatic, 4 math functions, FFT and gated FFT
- Connectivity: USB 2.0, LAN, VGA, GPIB (optional), remote control support
- Power: 100-240 V, 50/60 Hz, 120 W
- Dimensions: 454 mm x 275 mm x 156 mm
- Weight: 6.3 kg (13.9 lbs), shipping weight 11.4 kg
- Warranty: 3-year standard, calibration interval 2 years
Buy the Buy Keysight InfiniiVision 4000 X-Series Oscilloscope Part Number DSOX4024A Online
Discover the Keysight InfiniiVision 4000 X-Series oscilloscope online. Featuring a 12.1-inch capacitive touch screen, industry-leading speed of over 1 million waveforms/sec, zone touch trigger, segmented memory, and advanced measurement tools, it is perfect for detailed and complex signal analysis. Upgradeable bandwidth up to 1.5 GHz, multiple connectivity options, and a robust design make it ideal for maintenance, debugging, and high-precision testing. Purchase now for reliable, efficient testing for your engineering projects.
Order your Keysight InfiniiVision 4000 X-Series DSOX4024A today and experience industry-leading speed, intuitive touch operation, and advanced testing capabilities.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX4024A?
You can click on the BUY or RFQ button to purchase DSOX4024A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX4024A?
You can download the DSOX4024A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX4024A?
KEYSIGHT TECHNOLOGIES
