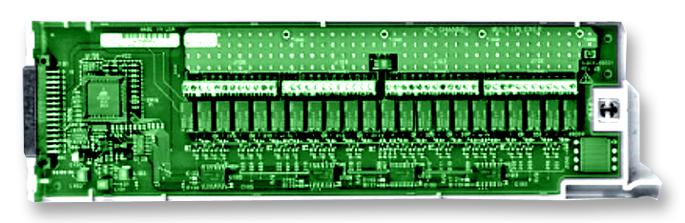

KEYSIGHT TECHNOLOGIES 34908A Single-Ended Switch Module
This Keysight 34908A module is designed for high-density, low-application testing, including battery testing, component characterization, and benchtop setups. It features 40 single-wire inputs per module, supports all two-wire internal measurements except current, and provides isolation from earth ground with the ability to float up to 300 V. The module offers 60 channels per second scanning, single-wire switching optimized for common low-application tasks, and includes a built-in thermocouple reference junction. Suitable for use in communications, networking, sensing, instrumentation, and signal processing applications.
KEYSIGHT TECHNOLOGIES 34908A Single-Ended Switch Module Specifications:
- Number of channels: 40
- Scanning speed: 60 ch/sec
- Bandwidth: 10 MHz
- Switching voltage: 300 V
- Switching current: 1 A
- Input resistance: 1 MΩ
- Isolation: >10 GΩ (ch-ch, ch-earth)
- Thermocouple reference junction: Built-in
- Connections: Internal screw terminals, BNC to SMB adapters
- Supported measurements: 2-wire, 4-wire Ohms, temperature with thermocouples
- Float voltage: Up to 300 V
- Operating temperature: 0°C to 55°C
- Storage temperature: -20°C to 70°C
- Dimensions: Detailed mounting dimensions
Buy the Buy Keysight 34908A Module Part Number 34908A Online
Order the Keysight 34908A today to access a high-density single-ended switching solution with 40 channels, 60 channels/sec, and built-in thermocouple reference. Designed for battery testing, component characterization, and benchtop setups, it offers excellent isolation up to 300 V, supports all two-wire measurements except current, and features screw-terminal connections for easy wiring. Compatible with various measurement and switching configurations, this module provides reliable performance in communications, sensing, and instrumentation applications. Purchase online now for fast delivery and integration into your test system.
Buy Keysight 34908A module now and enhance your low-application testing with high-density, reliable single-wire switching supporting up to 300 V isolation and thermocouple measurements.
