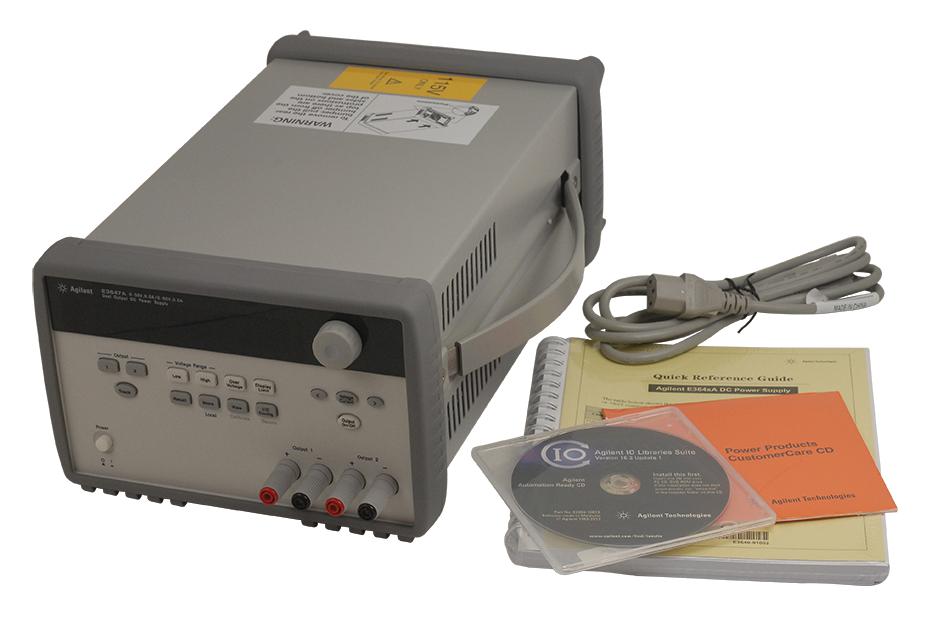

KEYSIGHT TECHNOLOGIES E3647A Dual Output Power Supply
The Keysight 60W dual output E3647A power supply provides stable, reliable performance for bench testing and automated measurements. It features dual voltage ranges, front and rear output terminals, adjustable overvoltage protection, remote sensing, and save/recall functions. Its highly visible vacuum fluorescent display, rugged handle for easy transportation, and built-in GPIB and RS-232 interfaces enable flexible remote control and easy operation. The cooling fan with automatic speed regulation ensures quiet operation, making it ideal for electronics testing, power management, and prototyping applications requiring precise power regulation.
KEYSIGHT TECHNOLOGIES E3647A Dual Output Power Supply Specifications:
- Maximum power: 60 W
- Number of outputs: 2
- DC output ratings: Two 0 to 8V/3A or 0 to 35V/0.8A or 0 to 8V/5A or 0 to 35W/1.4A
- Net weight: 8.2 kg
- Dimensions (without bumper): 212.8 mm W x 133.0 mm H x 348.3 mm D
- Voltage regulation: < 0.01% + 3 mV
- Current regulation: < 0.01% + 250 pA
- Ripple and noise (20 Hz to 20 MHz): < 5 mVpp/0.5 mVrms for 8 V/20 V models
- Accuracy: Voltage < 0.05% + 10 mV, Current < 0.2% + 10 mA
- Settling time: < 90 msec
- Over-voltage protection accuracy: < 0.5% + 0.5 V
- Temperature coefficient per °C: Voltage < 0.01% + 3 mV, Current < 0.02% + 3 mA
- Input voltage: 100 Vac ± 10%, 115 Vac ± 10%, 230 Vac ± 10%
- Warranty: One year
Buy the Keysight E3647A – Reliable Dual Output Power Supply for Industrial Applications
Purchase the Keysight E3647A dual output power supply online today and experience reliable performance for your testing and measurement needs. With adjustable voltage ranges, remote control capabilities via GPIB and RS-232 interfaces, and versatile terminals, this 60W bench-top device ensures precise power regulation. Its sturdy design, visual display, and automatic cooling fan offer ease of use and low noise operation. Ideal for electronics testing, automation, and research applications, this power supply provides outstanding value and dependable performance for demanding industrial and laboratory environments.
Get Keysight E3647A today—built for precision and long-lasting durability in demanding testing environments.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3647A?
You can click on the BUY or RFQ button to purchase E3647A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3647A?
You can download the E3647A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3647A?
KEYSIGHT TECHNOLOGIES
