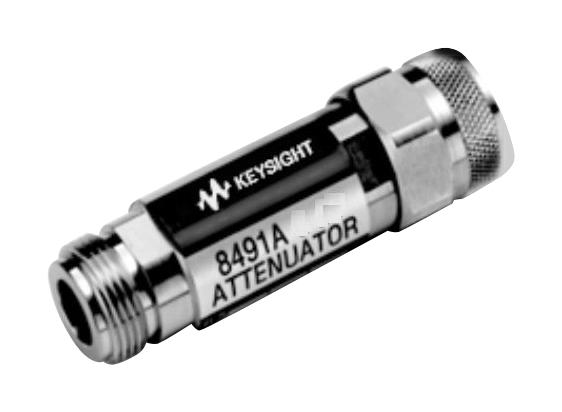

KEYSIGHT TECHNOLOGIES 8491A020 Coaxial Attenuator
The 8491A/020 coaxial fixed attenuator offers precise attenuation with a flat frequency response and low Standing Wave Ratio (SWR) over a wide frequency range from DC to 12.4 GHz. It features Type-N connectors (male and female) and provides a 10 dB attenuation. The unit undergoes swept-frequency testing to ensure it meets all specifications across the entire frequency spectrum. Calibration points are displayed on a nameplate chart attached to each device.
KEYSIGHT TECHNOLOGIES 8491A020 Coaxial Attenuator Specifications:
- Frequency Range: dc to 12.4 GHz
- Attenuation: 10 dB
- Connector Type: Type-N (Male and Female)
- Calibration: Swept-frequency tested with calibration points on nameplate
- Environmental: Operating temperature 0°C to +55°C, Storage -55°C to +85°C
- Humidity: Operating and storage <95% relative at 40°C
- Max Input Power: 2W average, 100W peak
- Dimensions: 67 x 21 mm (2.64 x 0.83 inches)
- Weight: 110 g (3.88 oz)
- Material: Stainless steel connectors, aluminum body
Buy the Buy Keysight Coaxial Attenuator Part Number 8491A020 Online
Enhance your RF measurement setup with the Keysight coaxial attenuator, offering accurate attenuation and flat frequency response from DC to 12.4 GHz. Its Type-N connectors ensure reliable connections, while thorough swept-frequency testing guarantees performance consistency. Perfect for calibration, system matching, and power level reduction, this attenuator combines high quality with affordability. Whether for laboratory or field use, it provides dependable performance in a compact, rugged design. Order online now to secure fast delivery and technical support for your RF and microwave projects.
Order your Keysight 8491A020 broadband coaxial attenuator today and ensure precise signal reduction with exceptional performance across a broad frequency range.
