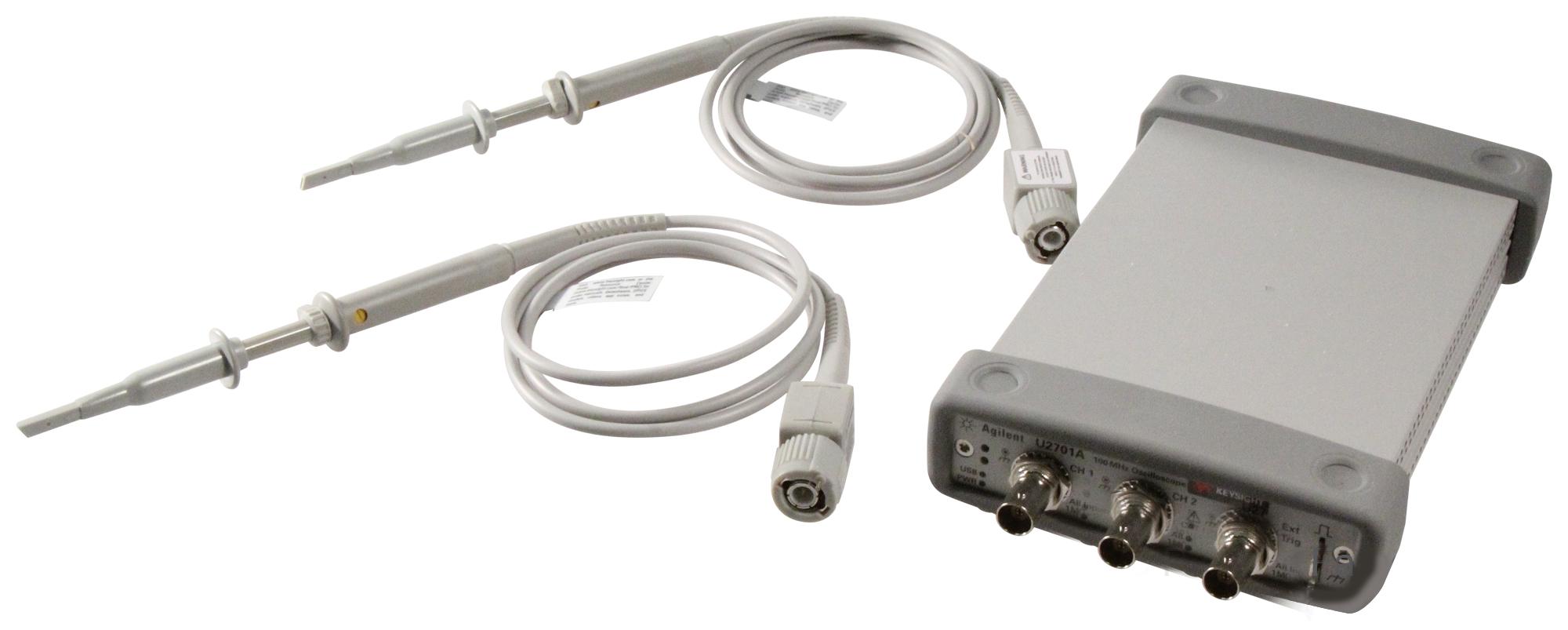

KEYSIGHT TECHNOLOGIES U2701A USB Oscilloscope
The U2701A modular oscilloscope features a 100 MHz bandwidth, up to 1 GSa/s maximum sample rate, and 32 million points of waveform memory. It offers advanced triggering options including edge, pulse width, and TV trigger. The device supports high-speed USB 2.0 and USBTMC 488.2 standards for connectivity. It includes four standard math functions, including FFTs, and can operate in standalone or modular configurations with the addition of the U2781A module. This oscilloscope is ideal for maintenance, repair, testing, and measurement applications, providing flexible and powerful debugging capabilities.
KEYSIGHT TECHNOLOGIES U2701A USB Oscilloscope Specifications:
- Bandwidth: DC to 100 MHz
- Sample Rate: Up to 1 GSa/s (interleaved channels) or 500 MSa/s per channel
- Memory Depth: 32 Mpts (interleaved), 16 Mpts per channel
- Input Impedance: 1 MΩ, 16 pF
- Vertical Resolution: 8 bits
- Trigger Modes: Edge, pulse width, TV
- Input Voltage Range: Up to CAT 130 Vrms / 42 Vpk
- Coupling: AC, DC, Ground
- Display: Dots and vectors, Sin(x)/x interpolation
- FFT Maximum Frequency: 250 MHz
- Connectivity: USB 2.0, USBTMC-488.2
- Physical Dimensions: 117.00 x 180.00 x 41.00 mm (with bumpers)
- Weight: 534 g (with bumpers)
Buy the Buy Keysight U2701A USB Modular Oscilloscope Part Number U2701A Online
Purchase the Keysight U2701A USB Modular Oscilloscope online and elevate your testing and measurement processes. Featuring a 100 MHz bandwidth, up to 1 GSa/s sampling rate, 32 Mpts memory, advanced triggering including TV and pulse width, and four math functions like FFTs, this compact device provides exceptional signal analysis power. Supported by high-speed USB 2.0 and USBTMC standards, it offers flexible standalone and modular operation modes, ideal for maintenance, repair, and design validation. Order now for reliable, high-performance debugging and measurement.
Order your Keysight U2701A USB Modular Oscilloscope today and experience high-resolution signal analysis with advanced triggering and long memory capabilities.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES U2701A?
You can click on the BUY or RFQ button to purchase U2701A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part U2701A?
You can download the U2701A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of U2701A?
KEYSIGHT TECHNOLOGIES
