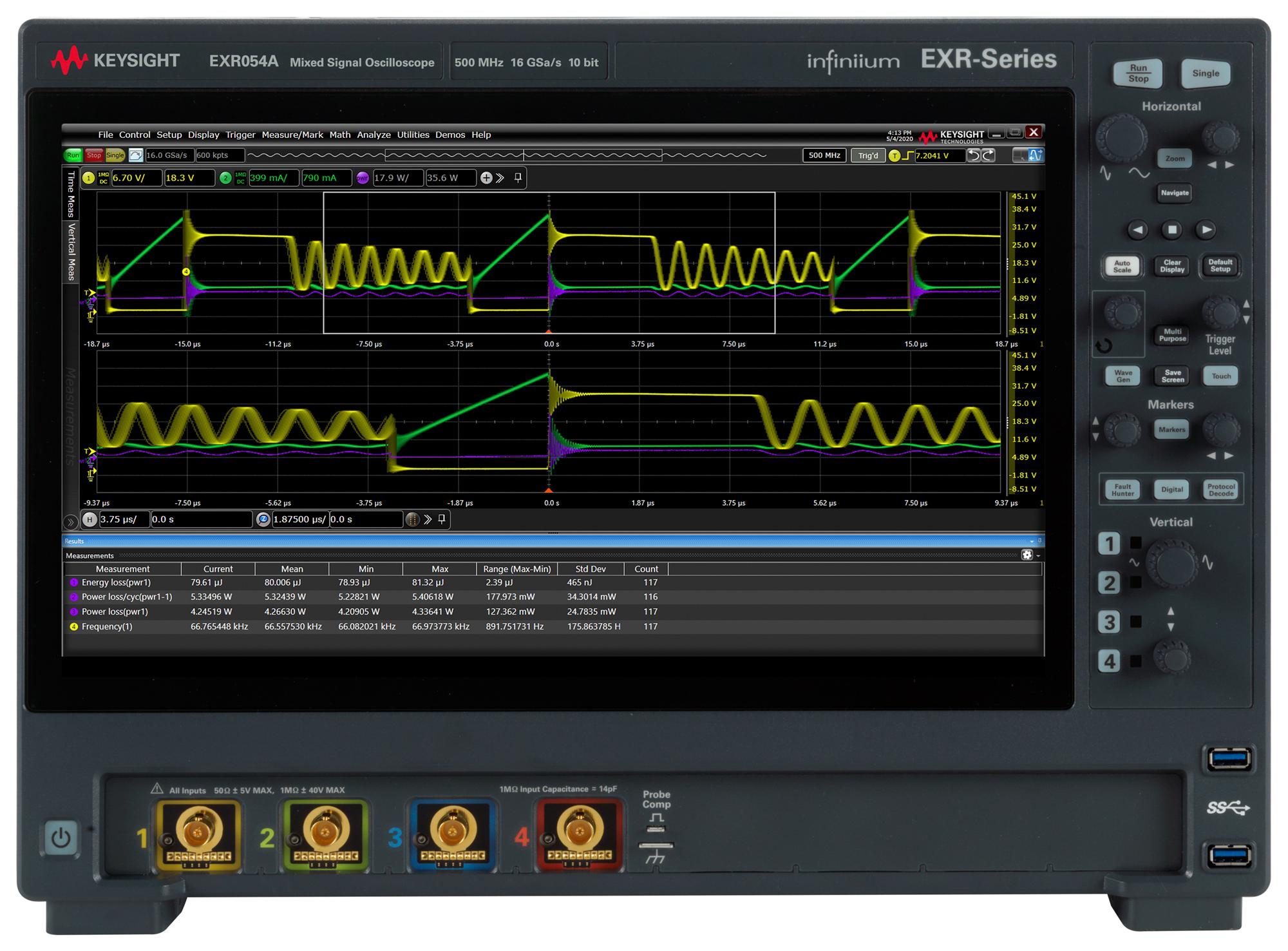

KEYSIGHT TECHNOLOGIES EXR054A oscilloscope
The Infiniium EXR Series is a line of high-performance oscilloscopes available in eight models ranging from 500 MHz to 2.5 GHz bandwidth. These instruments feature four or eight analog channels with a 10-bit ADC sampling at 16 GSa/s, providing high-resolution signal capture. Each model comes with 100 Mpts of standard memory, which can be upgraded to 400 Mpts, and offers flexible three-stage triggering, over 50 standard measurement options, and a comprehensive library of application-specific packages. The oscilloscopes include a 15.6-inch full HD touchscreen display, capable of updating 200,000 waveforms per second, and optional 16 digital logic channels. Their low-noise front end utilizes custom ICs, including a 130 nm BiCMOS IC, enabling improved vertical resolution—up to 16 bits in high-resolution mode—and low noise levels as low as 43 µV. The design allows for bandwidth upgrades via software licenses, making these oscilloscopes powerful, intuitive, and well-suited for detailed signal analysis.
KEYSIGHT TECHNOLOGIES EXR054A oscilloscope Specifications:
- Analog channels: 4 or 8, upgradeable
- Bandwidth: 500 MHz to 2.5 GHz, upgradeable
- Sample rate: 16 GSa/s on all channels
- Memory: 100 Mpts, upgradeable to 400 Mpts
- Resolution: 10 bits, up to 16 bits in high-res mode
- ENOB: Up to 9.0
- Timebase accuracy: 8 parts per billion
- Intrinsic jitter: as low as 118 fs
- Noise: as low as 43 pV (1 mV/div)
- Digital channels: 16 (optional, upgradeable)
- Update rate: over 200,000 waveforms/sec
- Display: 15.6-inch Full HD touchscreen
- Vertical resolution: up to 16 bits
- Vertical noise: as low as 43 µV
- Bandwidth upgrades: software licenses available
- Connectivity: USB, LAN, DisplayPort, VGA
Buy the Buy Keysight Infiniium EXR-Series Part Number EXR054A Online
Enhance your testing capabilities with the Keysight Infiniium EXR-Series oscilloscope. Featuring up to 2.5 GHz bandwidth, 16 GSa/s sampling, and high-resolution mode, it offers detailed, accurate signal analysis. With optional digital channels and large HD display, this scope simplifies complex measurements. Its modular design allows easy upgrades, ensuring longevity and adaptability for evolving testing needs. Purchase online now for reliable, high-performance signal analysis tailored for advanced electronic testing and development.
Order your Keysight Infiniium EXR054A series high-performance oscilloscope today and experience powerful, intuitive signal analysis with advanced measurement options.
