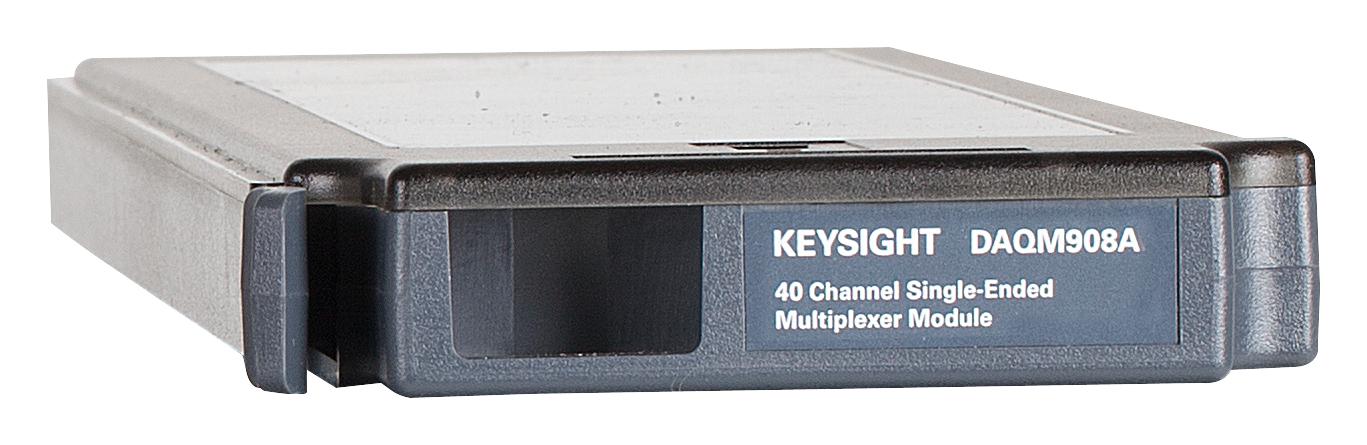

KEYSIGHT TECHNOLOGIES DAQM908A 40-Channel Multiplexer
This is a 40-channel single-ended multiplexer module designed for the DAQ970A data acquisition system. It provides high-density switching for common-low applications such as battery testing, component characterization, and benchtop measurement. Features include single-wire switching suitable for low-voltage signals, an scanning rate of 80 channels per second, and a built-in thermocouple reference junction for temperature measurements. The package includes the multiplexer module and a certificate of calibration.
KEYSIGHT TECHNOLOGIES DAQM908A 40-Channel Multiplexer Specifications:
- Number of channels: 40
- Switching type: Single-wire
- Maximum voltage: 300 V
- Maximum current: 1 A
- Scan rate: 80 channels/sec
- Built-in thermocouple reference junction
- Input impedance: High, suitable for low-voltage signals
- Isolation: >10 GΩ ch-ch, ch-earth
- Connector: On-module screw terminals
- Dimensions: Compact design for easy integration
- Environmental: Operates at 0 to 55 °C, non-condensing
- Power consumption: 20 W
- Certification: Compliant with safety standards
Buy the Keysight Series DAQ970A Multiplexer: DAQM908A
Enhance your data acquisition setup with the Keysight DAQM908A 40-Channel Multiplexer. Designed for low-voltage, high-density applications, it offers an 80 channels/sec scan rate, built-in thermocouple reference junction, and ease of integration. Perfect for battery testing, component characterization, and benchtop measurements, this module ensures accurate, reliable switching with minimal wiring complexity. Order online now to upgrade your system’s performance with a compact, robust, and high-precision multiplexer, ideal for laboratory and industrial environments.
Get Keysight DAQM908A multiplexer today—built for high-density, reliable signal switching in your data acquisition system.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DAQM908A?
You can click on the BUY or RFQ button to purchase DAQM908A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DAQM908A?
You can download the DAQM908A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DAQM908A?
KEYSIGHT TECHNOLOGIES
