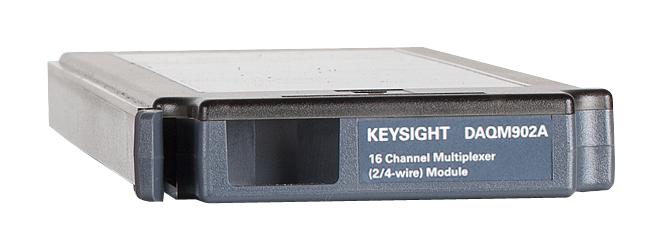

KEYSIGHT TECHNOLOGIES DAQM902A 16-channel multiplexer
This is a 16-channel multiplexer module designed for the DAQ970A data acquisition system. It supports 2-wire and 4-wire scanning for high-throughput automated testing, data logging, and monitoring applications. The module features a scanning rate of 250 channels per second and includes a built-in thermocouple reference junction. Suitable for test and measurement environments, it comes with the multiplexer module and a certificate of calibration.
KEYSIGHT TECHNOLOGIES DAQM902A 16-channel multiplexer Specifications:
- Number of channels: 16
- Scanning speed: 250 channels/sec
- Input voltage (dc, ac rms): 300 V
- Input current (dc, ac rms): 50 mA
- Max bandwidth: 10 MHz
- Built-in thermocouple reference junction
- Input impedance: >10 G ohms
- Input isolation: >10 G ohms ch-ch, ch-earth
- Capacitance: <50 pF
- Switching speed: 120/sec
- Build: Surface mount, high-density design
- Power: 2 W, 50 VA
- Dimensions: 88.5 mm x 212.6 mm x 348.3 mm
- Applicable for high-throughput, automated testing, and data logging
Buy the Buy Keysight DAQ970A Part Number DAQM902A Online
Order the Keysight DAQ970A DAQM902A today to enhance your automated testing, high-speed data logging, and measurement accuracy with its 250 channels/sec scanning rate and integrated thermocouple reference. Compact, reliable, and easy to configure, this versatile module supports 2-wire and 4-wire scanning, ensuring precise measurements in demanding environments. Its high bandwidth and excellent isolation make it ideal for lab and field applications, providing flexible integration with the DAQ system for improved productivity and data quality.
Buy Keysight DAQ970A DAQM902A now and experience precise high-speed data acquisition with built-in thermocouple reference junction and reliable performance.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DAQM902A?
You can click on the BUY or RFQ button to purchase DAQM902A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DAQM902A?
You can download the DAQM902A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DAQM902A?
KEYSIGHT TECHNOLOGIES
