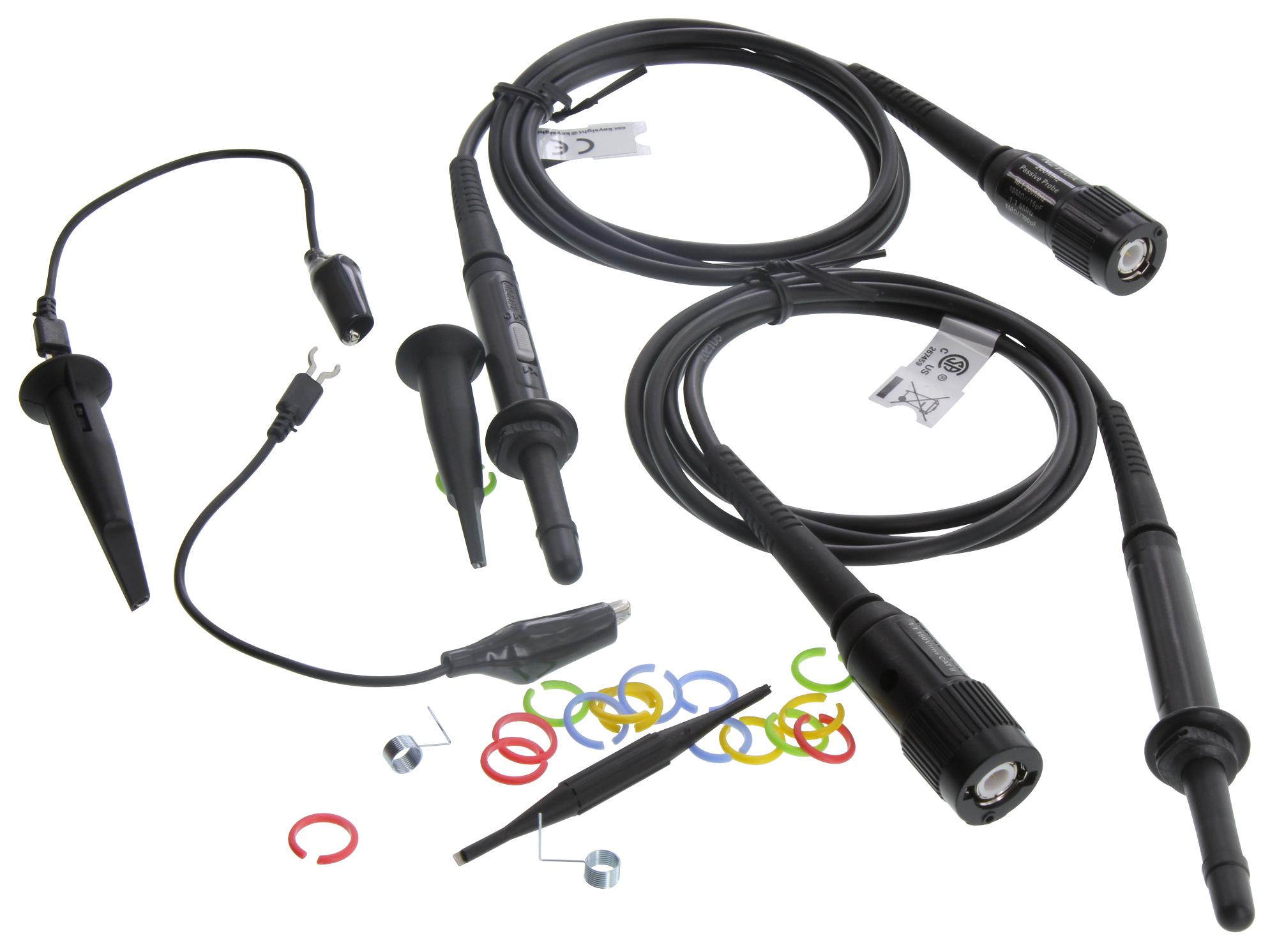

KEYSIGHT TECHNOLOGIES N2140A Oscilloscope Probe
The N2140A from Keysight Technologies is a versatile switchable passive oscilloscope probe supporting 1:1 and 10:1 attenuation ratios with a 200 MHz bandwidth. Designed for precise measurements, it features high input impedance with approximately 100 pF capacitance at 1:1 and 15 pF at 10:1. The probe's maximum voltage ratings are 150 Vrms for 1:1 and 300 Vrms for 10:1 under CAT II conditions. It has input resistances of 1 MΩ (1:1) and 10 MΩ (10:1), with a body length of 95 mm, a cable length of 1200 mm, and weighs 55 grams. Compatible with Keysight InfiniiVision DSOX1102A and DSOX1102G oscilloscopes, it can be recalibrated for input capacitances between 15 and 40 pF, making it ideal for a wide range of test and measurement applications.
KEYSIGHT TECHNOLOGIES N2140A Oscilloscope Probe Specifications:
- Bandwidth: 200 MHz
- Attenuation Ratios: 1:1 and 10:1 switchable
- Input Capacitance: approximately 100 pF at 1:1, 15 pF at 10:1
- Maximum Voltage Rating: 150 Vrms (1:1), 300 Vrms (10:1) (CAT II)
- Input Resistance: 1 MΩ at 1:1, 10 MΩ at 10:1
- Probe Body Length: 95 mm
- Cable Length: 1200 mm
- Weight: 55 grams
- Compatibility: Keysight InfiniiVision DSOX1102A and DSOX1102G
- Recalibration Range: Input capacitance between 15 and 40 pF
- Connector: BNC with pin hole, designed without a pin
Buy the Keysight Series 1000 X-Series Oscilloscope Probe: N2140A
Enhance your measurement accuracy with the Keysight N2140A passive oscilloscope probe, supporting 1:1 and 10:1 attenuation ratios with 200 MHz bandwidth. Its high input impedance and compatibility with Keysight InfiniiVision oscilloscopes make it ideal for general electronics testing and precise signal analysis. The probe features a durable design with a body length of 95 mm, a 1200 mm cable, and weighs just 55 grams. Recalibration options ensure flexible performance, offering reliable operation across a variety of measurement environments. Purchase online today to upgrade your test equipment with this versatile probe.
Get Keysight N2140A today—supporting 200 MHz bandwidth and switchable attenuation for precise measurement tasks.
