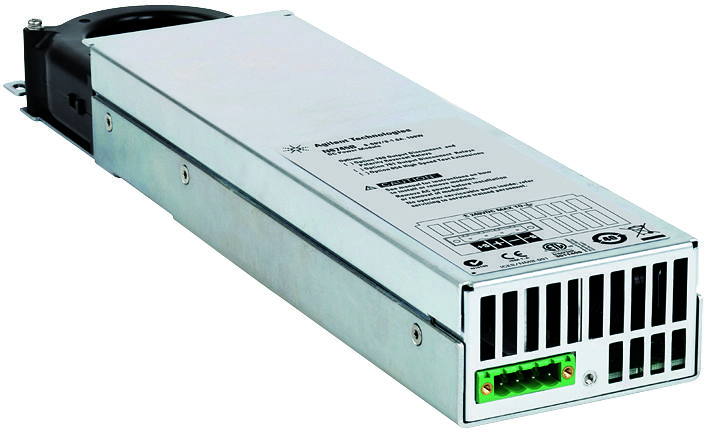

KEYSIGHT TECHNOLOGIES N6745B DC Power Module
The Keysight N6745B is a 60V, 1.6A, 100W basic DC power module designed for programmable voltage and current delivery in automated test systems. It offers measurement, protection, fast response times, and modular configuration, making it ideal for R&D, validation, and manufacturing applications. Its compact, 1U rack size allows up to four outputs for versatile power solutions, with connectivity via GPIB, LAN, and USB, fully compliant with LXI Class C standards. Suitable for critical testing and basic power management in measurement and test environments.
KEYSIGHT TECHNOLOGIES N6745B DC Power Module Specifications:
- Voltage Range: 0-60 V
- Current Range: 0-1.6 A
- Power: 100 W
- Ripple & Noise (PARD): 8 mV peak-to-peak, 1.2 mV rms
- Load Effect Regulation: Voltage 2 mV, Current 2 mA
- Source Effect Regulation: Voltage 1 mV, Current 1 mA
- Programming Accuracy (@ 23°C): Voltage 0.025% + 1.8 mV, Current 0.1% + 1.8 mA
- Measurement Accuracy (@ 23°C): Voltage 0.05% + 5 mV, Current 0.1% + 75 pA
- Transient Recovery Time: < 45 ps, < 45 μs
- Response Time to Over-voltage: 50 μs
- Remote Sense: Up to 0.5 V drop, maintains output
- Operation: Series/Parallel capable (disconnect relays option)
- Connectivity: GPIB, LAN, USB (full LXI Class C compliance)
Buy the Keysight Series N6745B DC Power Module: 60V 1.6A 100W
Order the Keysight N6745B now and enhance your test system with this 60V, 1.6A, 100W programmable DC power module. Its modular design offers fast command processing, accurate measurement, and protective features, making it ideal for R&D, validation, and manufacturing environments. Its compact 1U rack size allows up to four outputs, with connectivity options including GPIB, LAN, and USB, all fully LXI Class C compliant. Improve efficiency and reliability in your power testing applications by purchasing online today.
Get Keysight N6745B power module today—perfect for automated test setups with fast response and reliable measurements.
