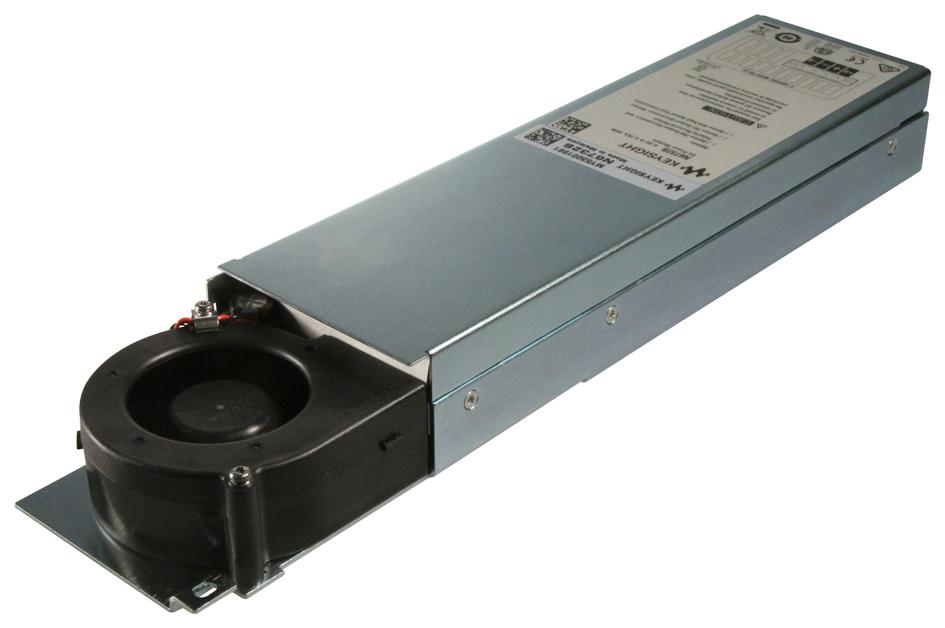

KEYSIGHT TECHNOLOGIES N6732B DC Power Module
The Keysight N6732B is a compact, 50W basic DC power module capable of providing up to 8V and 6.25A. It offers programmable voltage and current, along with measurement and protective features. Designed for automated test equipment in research and development, design validation, and manufacturing, it features a small form factor with up to four outputs in a single 1U rack space. The modular system provides flexible configuration, supporting fast command processing, Ethernet, USB, GPIB connectivity, and LXI Class C compliance, making it ideal for basic DC power and test applications.
KEYSIGHT TECHNOLOGIES N6732B DC Power Module Specifications:
- Voltage Range: Up to 8 V
- Current Range: Up to 6.25 A
- Power Rating: 50 W
- Measurement Accuracy: 0.1% + 19 mV (voltage), 0.15% + 20 mA (current)
- Ripple & Noise: 12 mV p-p (voltage)
- Connectivity: GPIB, LAN, USB 2.0
- Standards: LXI Class C-compliant
- Form Factor: 1U rack space, small size, supports up to four outputs
- Safety: Over-voltage, over-current, over-temperature protection
- Operation Temperature: 0°C to 55°C
- Input Voltage: 100-240 VAC, 50/60/400 Hz
- Power Consumption: Up to 50 W
- Dimensions: Height 44.45 mm, Width 432.5 mm, Depth 585.6 mm
- Weight: Approximate 12.73 kg
Buy the Keysight Series N6700 Basic DC Power: N6732B
Enhance your test setup with the Keysight N6732B basic DC power module. This 50W, compact module delivers up to 8V and 6.25A, supporting flexible programming, measurement accuracy, and multiple connectivity options including GPIB, LAN, and USB. Ideal for R&D, design validation, and manufacturing, it fits seamlessly into a modular system with up to four outputs, optimizing space and performance. Its protective features ensure safe operation under various testing conditions, making it a perfect choice for precise and reliable DC power sourcing in automated testing environments.
Buy Keysight N6732B now and experience reliable performance for basic DC power testing and automated test equipment applications.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6732B?
You can click on the BUY or RFQ button to purchase N6732B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6732B?
You can download the N6732B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6732B?
KEYSIGHT TECHNOLOGIES
