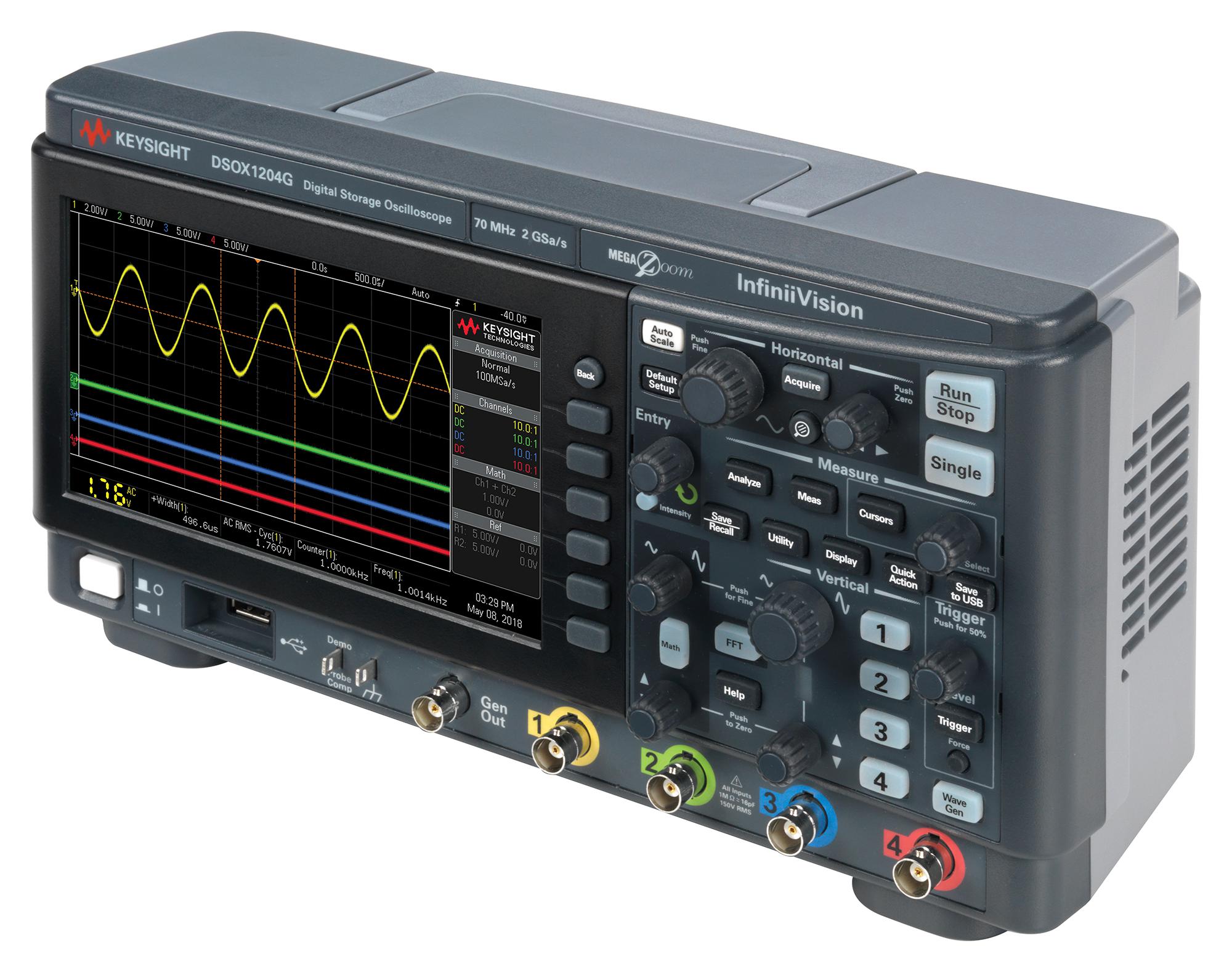

KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A100 Digital Storage Oscilloscope
The InfiniiVision 1000 X-Series DSO is a versatile digital storage oscilloscope featuring four analog channels, a maximum sampling rate of 2 GSa/s, and 1 million points memory depth. Equipped with a 7-inch WVGA TFT LCD display, it offers an update rate of up to 50,000 waveforms/sec for precise signal analysis. This model includes an integrated 20 MHz function generator, built-in education signals, onboard help, and software compatibility with BenchVue for quick data logging. Its compact size (314mm x 165mm x 130mm) and multiple interface options make it ideal for education and industrial testing environments.
KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A100 Digital Storage Oscilloscope Specifications:
- Bandwidth: 100 MHz (pre-installed upgrade)
- Channels: 4 analog + external trigger/digital input
- Maximum sample rate: 2 GSa/s (all channels)
- Memory depth: 1 million points
- Display: 7-inch WVGA TFT LCD
- Waveform update rate: 50,000 waveforms/sec
- Input coupling: DC, AC (10 Hz cutoff)
- Input impedance: 1 MΩ ±2%, 16 pF
- Vertical sensitivity: 500 μV/div to 10 V/div
- Vertical resolution: 8 bits
- Horizontal range: 5 ns/div to 50 s/div
- Horizontal resolution: 25 ps
- Trigger types: Edge, Pattern, Pulse, Video, RS-232, SPI, CAN, LIN
- Built-in functions: DVM, Frequency Counter, Serial Protocol Decode
- Connectivity: USB 2.0, LAN
- Dimensions: 314mm x 165mm x 130mm
- Weight: 3.23 kg
- Power: 100-240 V, 50/60 Hz
- Environmental rating: Oto +50°C, 3,000 m max altitude
- Included accessories: scope unit, 4 probes, power cord, calibration certificate, 3-year warranty
Buy the Keysight Series InfiniiVision DSOX1204G: 100 MHz Oscilloscope
Experience the powerful performance of the Keysight InfiniiVision DSOX1204G digital storage oscilloscope with four channels and 100 MHz bandwidth. Its 2 GSa/s sampling rate enables precise signal capture, while a 7-inch WVGA display provides clear visualization. The scope features an integrated 20 MHz function generator, advanced software analysis including serial protocols, and built-in educational signals. Compact and versatile, it supports USB and LAN connectivity, making it ideal for education, R&D, and industrial testing. Buy online now for reliable, professional-grade measurements.
Get Keysight DSOX1204G today—built for precision and long-lasting durability with integrated functionality and industry-leading analysis features.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1204GDSOX1200A100?
You can click on the BUY or RFQ button to purchase DSOX1204GDSOX1200A100 from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1204GDSOX1200A100?
You can download the DSOX1204GDSOX1200A100 datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1204GDSOX1200A100?
KEYSIGHT TECHNOLOGIES
