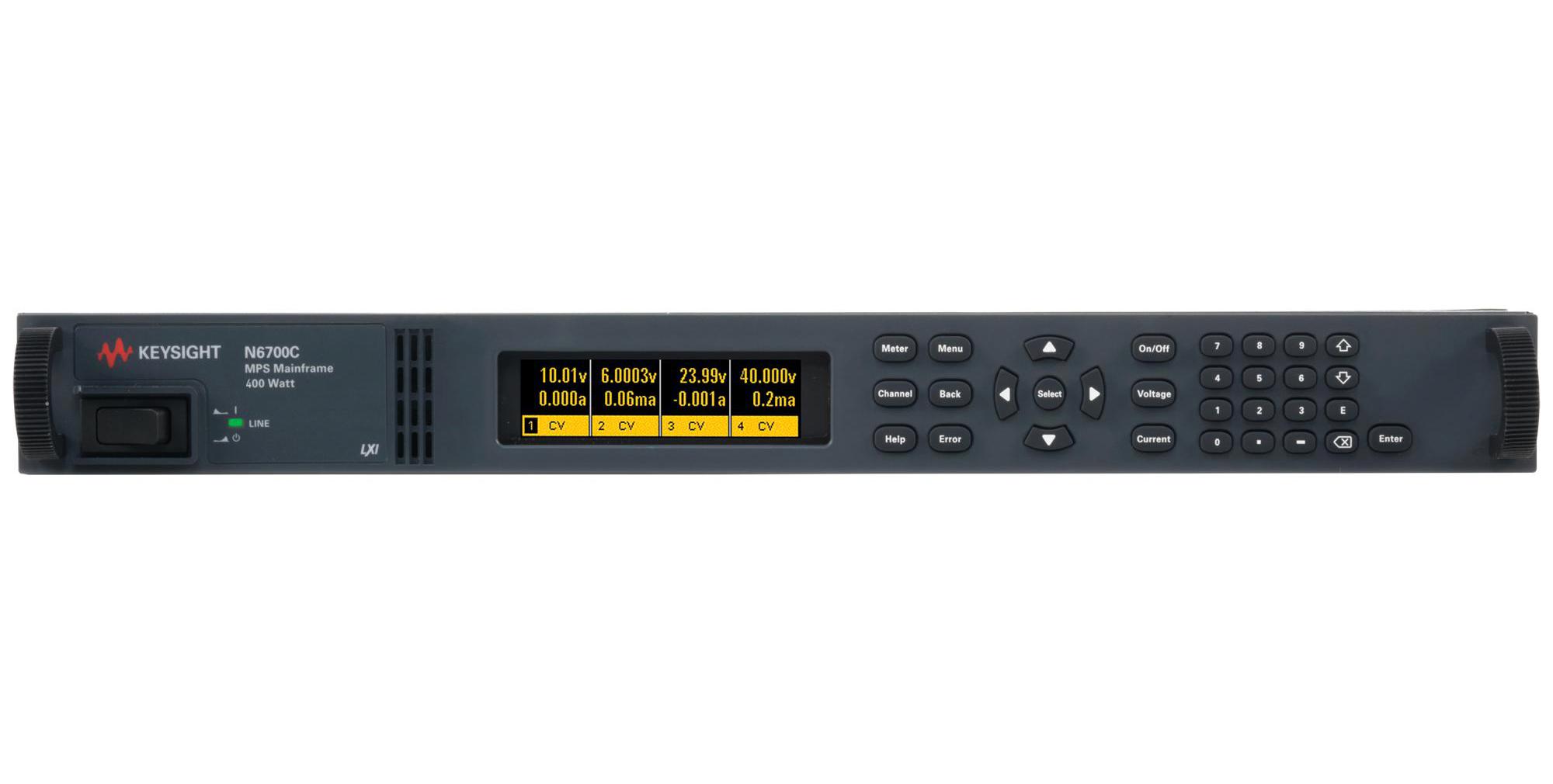

KEYSIGHT TECHNOLOGIES N6700C Modular Power System
The Keysight N6700C is a 400-watt, 1U high, four-slot modular power mainframe designed for versatile testing applications. It accommodates from one to four separately ordered N6700 series DC power modules, which can be configured in any combination. The system features standard GPIB, LAN, and USB interfaces, and is LXI compliant. It offers a wide selection of over 20 different power modules, ranging from basic to high-precision, with power outputs from 20 W to 300 W. The mainframe supports a flexible, modular setup for critical testing needs, providing fast command processing and output speeds to enhance throughput. Its input ratings are nominally from 100VAC to 240VAC at 50/60/400Hz. The unit consumes approximately 1000VA, measures 44.45mm x 432.5mm x 585.6mm, and weighs about 12.73kg. Ideal for test and measurement applications, this power system offers scalable performance to meet various testing requirements.
KEYSIGHT TECHNOLOGIES N6700C Modular Power System Specifications:
- Power Output: 400 W
- Form Factor: 1U rack-mount height
- Number of Slots: 4
- Interfaces: GPIB, LAN (10/100 Base-T), USB 2.0
- LXI Compatibility: Fully compliant
- Input Voltage Range: 100 VAC - 240 VAC
- Frequency: 50/60/400 Hz
- Power Consumption: approximately 1000 VA
- Dimensions: 44.45 mm H x 432.5 mm W x 585.6 mm D
- Weight: about 12.73 kg
- Modules Compatibility: Over 20 different modules with power from 20 W to 300 W
- Protection Features: Over-voltage, over-current, over-temperature
- Network Connectivity: Supports remote control and web-based monitoring
- Cooling: Fan speed controlled for quieter operation
- Operation Environment: Indoor, pollution degree 2, temperature 0°C to 55°C
- Standards: LXI Class C, SCPI compatible
Buy the Buy Keysight N6700C Power System Part Number N6700C Online
Purchase the Keysight N6700C modular power system online today to enhance your test setup. With flexible configurations, over 20 modules, and high-speed command processing, this 1U system is ideal for R&D, manufacturing, and design validation. Its LXI compliance, multiple interfaces including GPIB, LAN, and USB, and protection features ensure reliable and safe operation. Easily rack-mountable with optional accessories, this scalable power solution provides the versatility and performance needed for complex test environments. Order today for quick delivery and professional support.
Buy Keysight N6700C power system now and experience unmatched flexibility, high-speed operation, and scalability for your test requirements.
