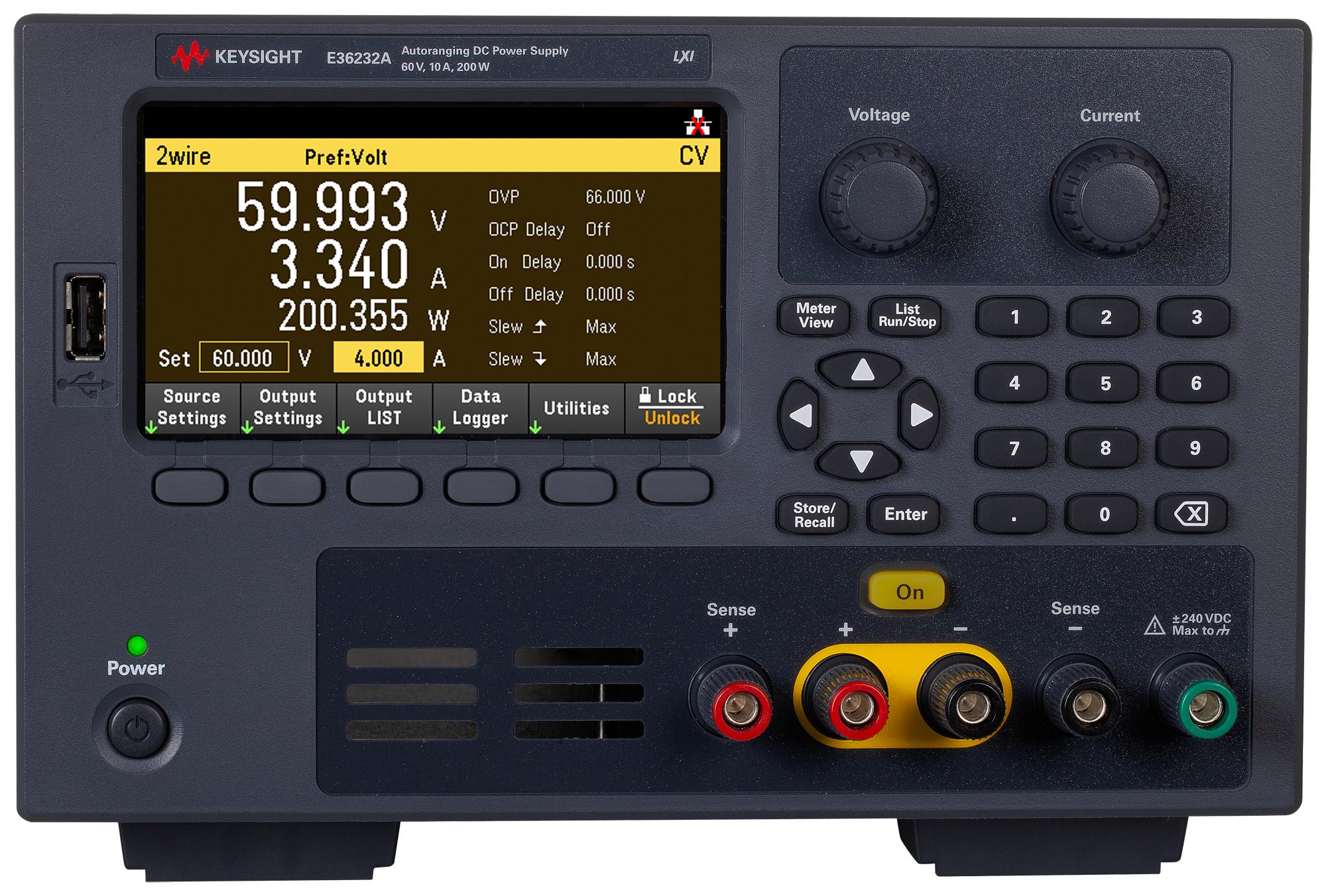

KEYSIGHT TECHNOLOGIES E36232A DC Power Supply
This 60V, 10A, 200W autoranging DC power supply is ideal for electronic testing and development, offering low ripple, high accuracy, and excellent regulation. It features a 4.3-inch color LCD display for real-time monitoring and supports both 2-wire and 4-wire remote sensing with protections against over-voltage, over-current, and temperature. Connectivity includes LAN, USB, and optional GPIB interfaces, along with data logging, output sequencing, and adjustable slew rate. The device includes the power supply, AC cord, digital I/O connector, and rear output terminals, making it perfect for laboratory and bench applications.
KEYSIGHT TECHNOLOGIES E36232A DC Power Supply Specifications:
- Power Output: 200 W
- Channel: 1
- DC Output Rating: 0 to 60 V, 0 to 10 A
- Mode: Autoranging
- Voltage Regulation: < 0.01% + 2 mV
- Current Regulation: < 0.01% + 250 μA
- Ripple and Noise: < 3.5 mVpp (20 Hz to 20 MHz)
- Line Regulation: < 0.01% + 2 mV
- Remote Sensing: 2-wire/4-wire, max voltage 0.7 V
- Protections: Over-voltage, over-current, over-temperature
- Display: 4.3-inch color LCD
- Connectivity: LAN (LXI), USB, optional GPIB
- Data Logging: Yes
- Output Sequencing: Yes
- Adjustable Slew Rate: Yes
- Dimensions: 132.5 x 212.8 x 385.0 mm
- Weight: 58 kg
Buy the Keysight Series E36200 60V, 10A, 200W Autoranging DC Power Supply: E36232A
Purchase the Keysight E36232A 60V, 10A, 200W autoranging DC power supply online today to enhance your electronic testing. Featuring low ripple, high accuracy, and multiple connectivity options, this bench-top device supports remote sensing, data logging, and output sequencing. Its intuitive LCD display provides real-time monitoring, while protections against over-voltage, over-current, and temperature ensure device safety. Compact and versatile, it is ideal for laboratories, development, and manufacturing environments, offering reliable power control for high-precision applications.
Get Keysight E36232A today—built for precision, reliable power, and versatile electronic testing.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E36232A?
You can click on the BUY or RFQ button to purchase E36232A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E36232A?
You can download the E36232A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E36232A?
KEYSIGHT TECHNOLOGIES
