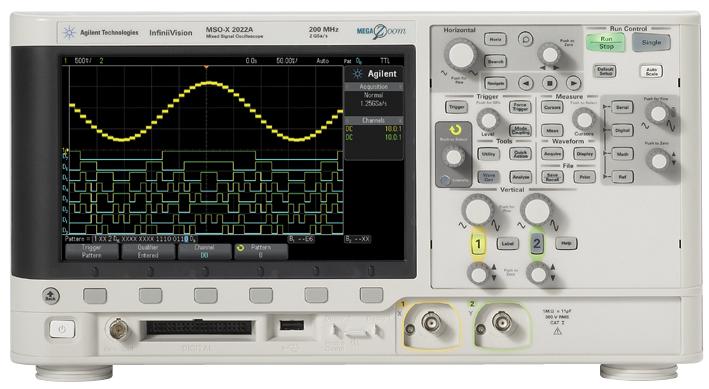

KEYSIGHT TECHNOLOGIES DSOX2022A Digital Oscilloscope
The InfiniiVision 2000 X-Series is an entry-level digital oscilloscope equipped with the DSOX2PLUS enhancement suite. Designed primarily for students and educational laboratories, it features advanced technology that enables users to view signals more clearly, with deep memory and rapid waveform update rates. The DSOX2PLUS suite includes enhancements like increased memory and faster data processing for improved analysis. Key features include an 8.5-inch WVGA display for optimal signal visibility, 25 automated measurements, 18 waveform math functions, MegaZoom IV custom ASIC technology for high-speed waveform capture at 200,000 waveforms per second, standard memory segments, mask testing, secure data erase, and a virtual front panel that supports remote access. Applications primarily include testing and measurement in educational and professional settings. The package includes the oscilloscope, a N2842A 300 MHz passive probe with 10:1 attenuation, calibration certificate, documentation CD, and a localized power cord.
KEYSIGHT TECHNOLOGIES DSOX2022A Digital Oscilloscope Specifications:
- Display: 8.5-inch WVGA color TFT LCD (800x480 pixels)
- Bandwidth: 70 to 200 MHz (upgradable to 1 GHz)
- Sample Rate: 2 GSa/s (standard) with MegaZoom IV ASIC technology
- Memory Depth: 1 Mpt per channel
- Waveform Update Rate: Up to 200,000 wfms/sec
- Input Channels: 2 (DSOX2 series), 4 (DSOX4 series)
- Input Impedance: 1 MΩ ± 2%, 11 pF
- Vertical Resolution: 8 bits (measurement resolution 12 bits with averaging)
- Vertical Sensitivity: 1 mV/div to 5 V/div
- Maximum Input Voltage: 135 Vrms; 190 Vpk support with probes
- Trigger Modes: Edge, pulse width, pattern, TV, runt, rise/fall time, Nth edge, serial protocol (I2C, SPI, UART, CAN, LIN)
- WaveGen Built-in: Optional, up to 20 MHz, supports sine, square, pulse, triangle, ramp, noise
- Serial Protocol Decoding: Optional; supports I2C, SPI, UART, CAN, LIN
- Connectivity: USB host, USB device, optional LAN, GPIB, VGA out
- Measurement Functions: 25 automated, 18 waveform math, including FFT
- Mechanical: Dimensions 381 mm x 204 mm x 142 mm, weight 3.9 kg
- Environmental: Operating temp 5-55°C, humidity up to 95%, meets IEC 61010 safety standards
Buy the Keysight DSOX2022A – Reliable Oscilloscopes for Education and Testing
Purchase your Keysight DSOX2022A digital oscilloscope online today and enjoy a powerful testing tool designed for education and professional measurement. Featuring an 8.5-inch WVGA display, deep memory, speed of up to 200,000 wfms/sec, and optional advanced analysis features including serial decoding and waveform math functions, this scope is perfect for precise signal capture and analysis. Its compact design saves space, and the included N2842A 300 MHz passive probe ensures accurate measurements. Enhance your lab or testing setup now with quick online ordering, secure data handling, and flexible upgrade options to support future requirements.
Order your Keysight DSOX2022A Series oscilloscope today and elevate your signal analysis with industry-leading features and upgrade options.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX2022A?
You can click on the BUY or RFQ button to purchase DSOX2022A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX2022A?
You can download the DSOX2022A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX2022A?
KEYSIGHT TECHNOLOGIES
