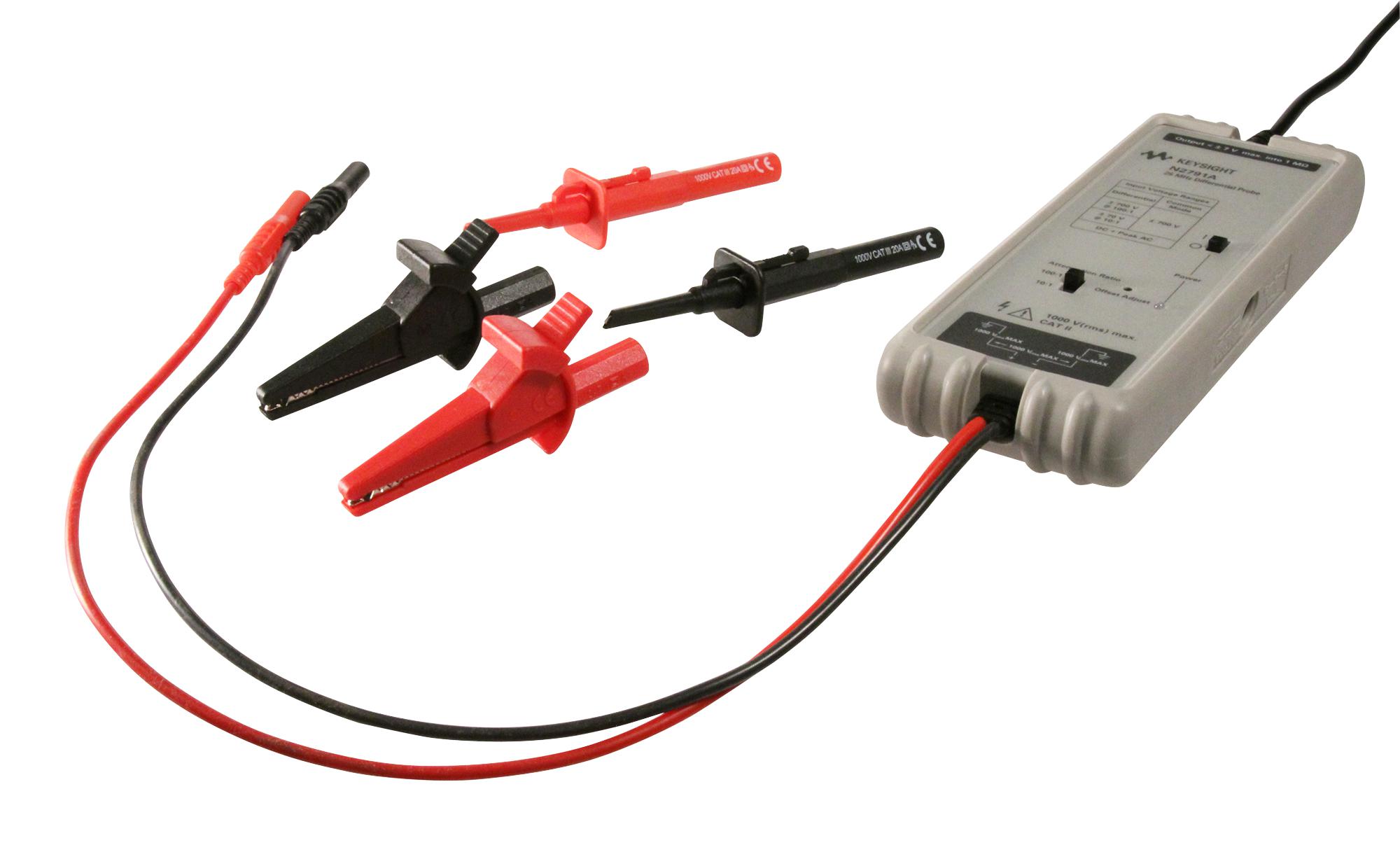

KEYSIGHT TECHNOLOGIES N2791A High-Voltage Differential Probe
The N2791A is a 25 MHz high-voltage differential probe designed for safe, precise floating measurements with oscilloscopes. It allows Keysight scopes to handle floating signals up to 700 V differential and common mode. Compatible with any oscilloscope with 1 MΩ BNC input, it can be powered by four AA batteries or via USB. Features include selectable attenuation of 10:1 or 100:1, overrange indicators, and versatile accessories like retractable hook tips and alligator clips. Ideal for sensing, instrumentation, metering, and testing applications demanding high-voltage measurement accuracy and safety.
KEYSIGHT TECHNOLOGIES N2791A High-Voltage Differential Probe Specifications:
- Bandwidth: 25 MHz
- Attenuation: 10:1 / 100:1
- Maximum differential voltage: ±700 V
- Maximum common mode voltage: ±700 V
- Input impedance to ground: 1 MΩ//10 pF
- Input impedance between inputs: 8 MΩ//8 pF
- Rise time (calculated): <14ns
- Gain accuracy: ±4% at 20-30°C
- DC CMRR: -80 dB at 50/60 Hz
- AC CMRR: -40 dB at 1 MHz
- Propagation delay: 12.8 ns
- Power: 4x AA batteries or USB
- Safety rating: IEC61010-031
- Includes: Retractable hook tips and alligator clips
Buy the Keysight N2791A – Reliable High-Voltage Differential Probe for Industrial Applications
Enhance your measurement capabilities with the Keysight high-voltage differential probe. Designed for precision and safety, it measures differential voltages up to 700 V and is compatible with standard oscilloscopes. Its adjustable attenuation settings of 10:1 and 100:1, combined with versatile accessories like hook tips and alligator clips, make it ideal for sensing, instrumentation, and testing applications. Power it via AA batteries or USB for convenience. Ensure accurate, safe, and reliable high-voltage measurements for your critical testing needs.
Buy Keysight N2791A now and experience unmatched accuracy and safety in high-voltage floating measurements.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N2791A?
You can click on the BUY or RFQ button to purchase N2791A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N2791A?
You can download the N2791A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N2791A?
KEYSIGHT TECHNOLOGIES
