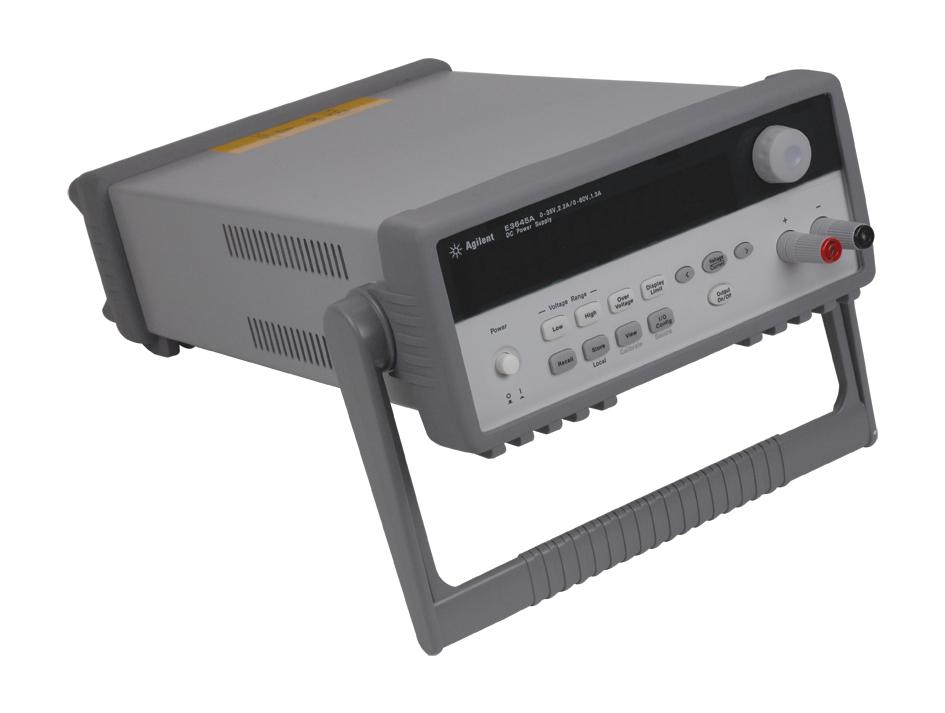

KEYSIGHT TECHNOLOGIES E3645A Programmable Power Supply
The Keysight E3645A is an 80W, single-output programmable DC power supply ideal for precise test and measurement applications. It offers adjustable overvoltage protection, remote sensing, and a large vacuum fluorescent display for easy monitoring. The device features dual voltage ranges, front and rear output terminals, and supports GPIB and RS-232 interfaces for versatile control. Its robust construction includes a handle for portability and an automatic cooling fan for quiet operation. Perfect for R&D, electronics testing, and power supply management, ensuring reliable, stable power output with high regulation and repeatability.
KEYSIGHT TECHNOLOGIES E3645A Programmable Power Supply Specifications:
- Maximum Power: 80 W
- Outputs: 1
- DC Output Rating: 0 to 8 V/8 A or 0 to 35 V/0.8 A or 0 to 8 V/5 A or 0 to 35 W/1.4 A
- Net weight: 6.6 kg
- Dimensions: 212.6 mm W x 88.5 mm H x 348.3 mm D
- Voltage Regulation: < 0.01% + 3 mV
- Current Regulation: < 0.01% + 250 pA
- Ripple & Noise: < 5 mVpp/0.5 mVrms (8 V/20 V models)
- Line & Load Regulation: < 0.02% + 2 mV
- Programming Accuracy: < 0.05% + 10 mV
- Readback Accuracy: < 0.05% + 5 mV
- Settling Time: < 90 msec
- Overvoltage Protection Accuracy: < 0.5% + 0.5 V
- Temperature Coefficient: < 0.01% + 3 mV per °C
- Remote Sensing: Up to 1 V drop allowed
- Input Voltage: 100-230 Vac ±10%
- Warranty: 1 year
Buy the Buy Keysight E3645A Programmable DC Power Supply Part Number E3645A Online
Discover the convenience of purchasing the Keysight E3645A online. This 80W programmable power supply ensures stable, accurate power output for your test and measurement projects. Featuring dual voltage ranges, remote sensing, and industry-standard GPIB and RS-232 interfaces, it offers flexible integration into any laboratory or production environment. Its rugged design includes a lockable handle for portability and an automatic cooling fan for quiet operation. Order now to enhance your testing capabilities with this reliable, versatile power source, backed by a one-year warranty.
Order your Keysight E3645A 80W bench power supply today and enjoy precise, reliable power with versatile control options for your testing needs.
