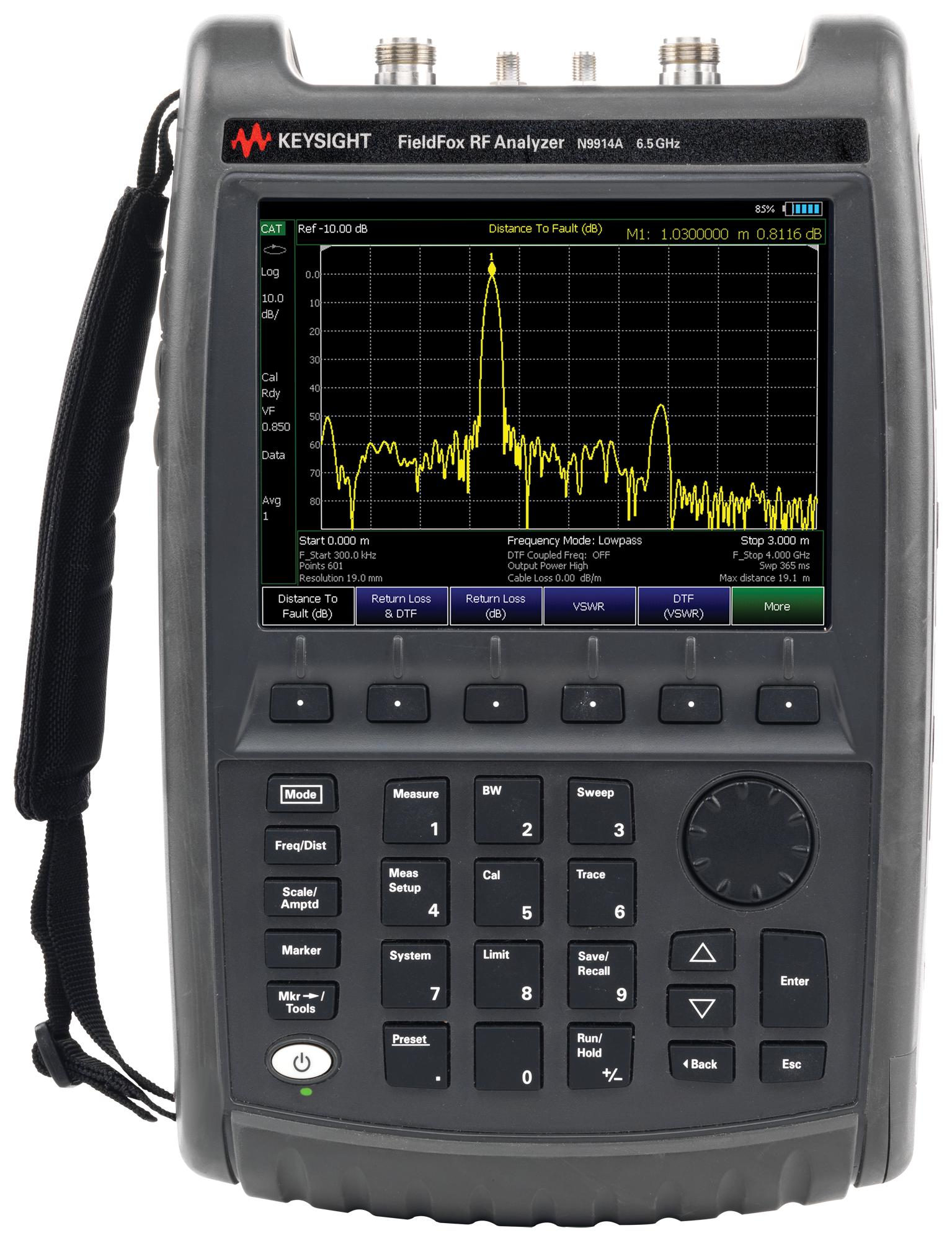

KEYSIGHT TECHNOLOGIES N9914A Handheld Network Analyzer
The FieldFox high-performance network analyzer from Keysight combines the precision of a benchtop RF and microwave analyzer into a compact, handheld device. Capable of measurements up to 50 GHz, it features optional spectrum and network analysis functions. Its small size (11.5 inches height, 7.4 inches width, 2.8 inches depth), lightweight design (approximately 7 pounds), and battery life of up to 3.5 hours make it highly portable for outdoor, lab, or bench use. The analyzer functions as a cable and antenna analyzer with additional options for spectrum analysis, vector network analysis, power measurement, signal generation, interference analysis, and GPS navigation. Key specifications include a bandwidth from 30 kHz to 6.5 GHz, a dynamic range of 100 dB, and integrated features such as a power meter, vector voltmeter, and various calibration and measurement tools. Optional capabilities include a vector network analyzer with S-parameters, full-spectrum tracking generator, and other advanced measurement functions. Designed for applications in sensing, instrumentation, signal processing, and testing, it is supplied with accessories including AC/DC power adapters, rechargeable battery, LAN cable, carrying case, and quick reference guide.
KEYSIGHT TECHNOLOGIES N9914A Handheld Network Analyzer Specifications:
- Frequency Range: 30 kHz to 6.5 GHz
- Maximum Frequency: 50 GHz
- Bandwidth: 30 kHz to 6.5 GHz
- Dynamic Range: 100 dB
- Size: 11.5 in x 7.4 in x 2.8 in
- Weight: Approximately 7 pounds
- Battery Life: Up to 3.5 hours
- Measurement Capabilities: Spectrum analysis, VNA, Power measurement, Signal generation, Interference analysis, GPS
- Connectivity: USB, LAN
- Accessories Included: AC/DC power adapters, rechargeable battery, LAN cable, carrying case, quick reference guide
- Options: Spectrum analyzer, VNA, Power Meter, GPS, Calibration tools
Buy the Buy Keysight Handheld Network Analyzer Part Number N9914A Online
Upgrade your testing arsenal with the Keysight Handheld Network Analyzer N9914A. Portable and versatile, it offers measurement up to 50 GHz, including spectrum and vector network analysis, power measurement, and GPS navigation. Its compact design, lightweight build, and long battery life of 3.5 hours make it perfect for outdoor, field, or benchtop applications. Equipped with advanced calibration and measurement options, this device supports sensing, instrumentation, and RF testing needs. Available with accessories like power adapters, LAN cables, and carrying cases, it ensures precise results wherever testing is required.
Order your Keysight Handheld Network Analyzer N9914A today and enjoy reliable, portable measurements up to 50 GHz for field and lab testing.
