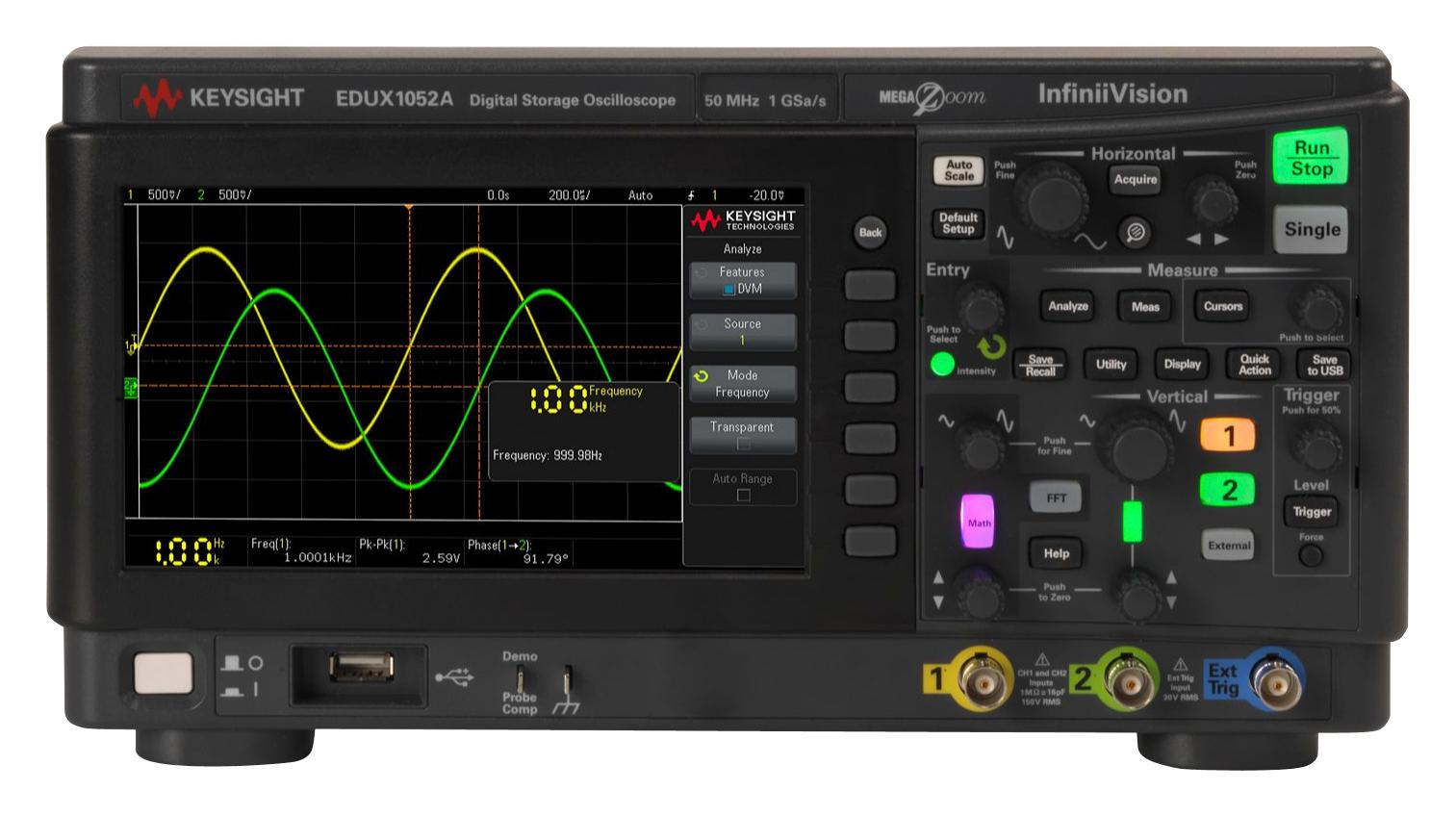

KEYSIGHT TECHNOLOGIES EDUX1052A Educational Oscilloscope
The InfiniiVision 1000 X-series 50MHz, 2-channel oscilloscope features a 7-inch TFT WVGA display, supporting serial protocols like I²C and UART/RS-232. It offers USB 2.0 (host and device) and LAN connectivity for versatile data transfer. With 14 amplitude, 14 timing, and 4 pulse count measurements, it includes built-in training signals and IoT courseware. Optional Bode plot analysis enhances learning. Compatible with BenchVue Software and including the BV0004B app, it provides comprehensive educational tools, standard probes, secure erase, multilingual interface, and calibration certification.
KEYSIGHT TECHNOLOGIES EDUX1052A Educational Oscilloscope Specifications:
- Bandwidth: 50 MHz
- Channels: 2 + external trigger (viewable as digital channel)
- Display: 7-inch TFT WVGA LCD
- Maximum sample rate: 1 GS/s (all channels)
- Memory depth: 200,000 points (all channels)
- Waveform update rate: 100,000 waveforms/sec
- Serial protocols: I²C, UART/RS-232
- Built-in training signals and comprehensive lab guide
- Connectivity: USB 2.0 (host and device), LAN
- Vertical resolution: 8 bits
- Input impedance: 1 MΩ ± 2%, 16 pF
- Input coupling: DC, AC (10 Hz high-pass)
- Vertical sensitivity range: 500 μV/div to 10 V/div
- Mechanical: Dimensions 314 x 165 x 130 mm, weight 3.23 kg
- Power: 100-240 V, 50/60 Hz
- Environmental: Max +50°C, 95% RH
- Certifications: UL, CSA, IEC 61010-1
Buy the Keysight EDUX1052A – Reliable Oscilloscope for Educational and Basic Testing Applications
Enhance your teaching or entry-level testing with the Keysight EDUX1052A oscilloscope. Featuring a 50MHz bandwidth, built-in training signals, and serial protocol support, it provides a complete educational and basic signal analysis tool. Its compact design, user-friendly interface, and versatile connectivity—including USB and LAN—make it ideal for classrooms and laboratories. The included comprehensive lab guide, tutorials, and training signals help students rapidly learn signal capture and analysis. A perfect choice for engineering education, hobbyists, and entry-level professionals seeking reliable performance at an affordable price.
Get Keysight EDUX1052A today—built for precise signal analysis and long-lasting durability, perfect for educational labs and fundamental testing.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES EDUX1052A?
You can click on the BUY or RFQ button to purchase EDUX1052A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part EDUX1052A?
You can download the EDUX1052A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of EDUX1052A?
KEYSIGHT TECHNOLOGIES
