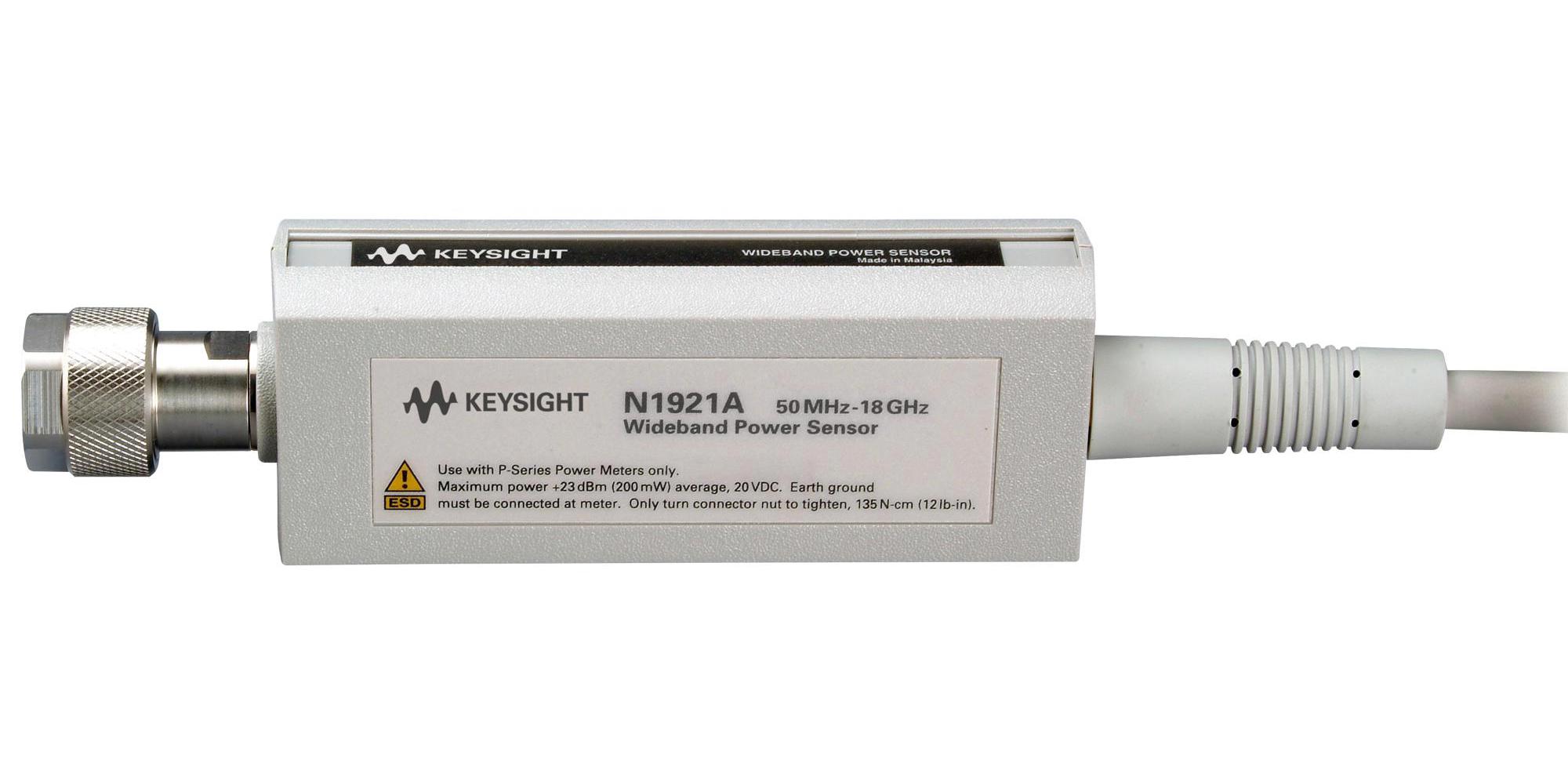

KEYSIGHT TECHNOLOGIES N1921A Wideband Power Sensor
The Keysight N1921A P-Series wideband power sensor offers comprehensive measurement capabilities for wideband signals. It provides peak, peak-to-average ratio, average power, rise time, fall time, maximum and minimum power, as well as statistical data. The sensor allows zeroing and calibration while connected to the device under test. It features a wide dynamic range from -35 dBm to +20 dBm for peak power measurements. Calibration factors, linearity, temperature, and bandwidth correction data are stored in EEPROM for accurate and consistent measurements. The sensor comes with a standard Precision Type-N connector and has fixed cable lengths of 1.5, 3, or 10 meters, suitable for sensing, instrumentation, and signal testing applications.
KEYSIGHT TECHNOLOGIES N1921A Wideband Power Sensor Specifications:
- Frequency Range: 50 MHz to 18 GHz
- Peak Power Measurement Range: -35 dBm to +20 dBm
- Average Power Measurement Range: -35 dBm to +20 dBm
- Dynamic Range: Wideband signals, suitable for RF testing
- Connector Type: Precision Type-N (f)
- Cable Lengths: Fixed 1.5 m, 3 m, 10 m options
- Calibration: Stored calibration factors in EEPROM
- Linearity & Temperature Correction: Data stored for accuracy
- Maximum SWR: 1.2 (50 MHz to 10 GHz), 1.26 (10 to 18 GHz)
- Dimensions: 135 mm x 40 mm x 27 mm
- Weight: 0.4 kg (Option 105), 0.6 kg (Option 106), 1.4 kg (Option 107)
Buy the Buy Keysight N1921A Wideband Power Sensor Part Number N1921A Online
Enhance your RF testing and measurement with the Keysight N1921A wideband power sensor. With measurement capabilities from -35 to +20 dBm across 50 MHz to 18 GHz, it offers high accuracy and stability. The sensor features a precision Type-N connector, multiple fixed cable lengths for versatile setups, and EEPROM-stored calibration data for consistent results. Its broad dynamic range, linearity, temperature correction, and SWR specifications make it ideal for sensing, signal processing, and instrumentation applications. Purchase online today for reliable RF measurements and improved testing efficiency.
Buy Keysight N1921A wideband power sensor now and ensure precise RF measurement with wide frequency coverage and reliable calibration.
