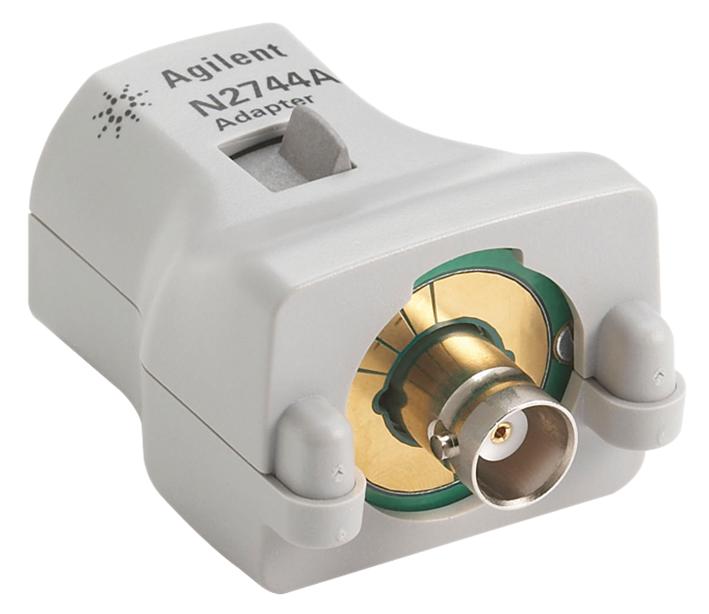

KEYSIGHT TECHNOLOGIES N2744A T2A Probe Adapter
The N2744A is a T2A Probe Interface Adapter that allows selected Tektronix TekProbe Level II probes to be used with Keysight oscilloscopes equipped with the AutoProbe interface. This easy-to-use plug-on adapter connects TekProbe BNC-type probes directly to the AutoProbe input channels on InfiniiVision or Infiniium oscilloscopes. It automatically configures the attenuation factor and probe type via the scope menu, and supplies the necessary probe power. The adapter also facilitates calibration (for select models) and offset control as required by the connected TekProbe probe.
KEYSIGHT TECHNOLOGIES N2744A T2A Probe Adapter Specifications:
- Maximum bandwidth: 4 GHz (adapter only)
- Power supplies: +15 V, -15 V, +5 V, -5 V (each 2%)
- Max output current: 200 mA for positive and negative supplies
- Offset control range: +1 V (from the adapter)
- Max input voltage: 42 V pk, 30 Vrms
- Operating temperature: 0 to 50 °C
- Non-operating temperature: -40 to 70 °C
- Humidity: 95% RH at 50 °C
- Altitude: 4000 m
- Physical Dimensions: 37 mm W x 29.5 mm L x 58 mm D
- Weight: 45 g
Buy the Keysight Series T2A Probe Interface Adapter: N2744A
Enhance your testing setup with the Keysight N2744A T2A Probe Interface Adapter, enabling seamless connection of TekProbe Level II probes to Keysight oscilloscopes with AutoProbe interface. This easy-to-install plug-on adapter provides automatic configuration of attenuation and probe type, supplies necessary probe power, and supports calibration and offset control, ensuring precise measurements. Compatible with InfiniiVision and Infiniium series oscilloscopes, the N2744A is optimal for engineers requiring versatile, high-performance probe interfacing for comprehensive signal analysis and troubleshooting.
Buy Keysight N2744A T2A probe interface adapter now and experience unmatched reliability and performance in connecting TekProbe level probes to oscilloscopes.
