KEYSIGHT TECHNOLOGIES E36313A Triple Output Power Supply

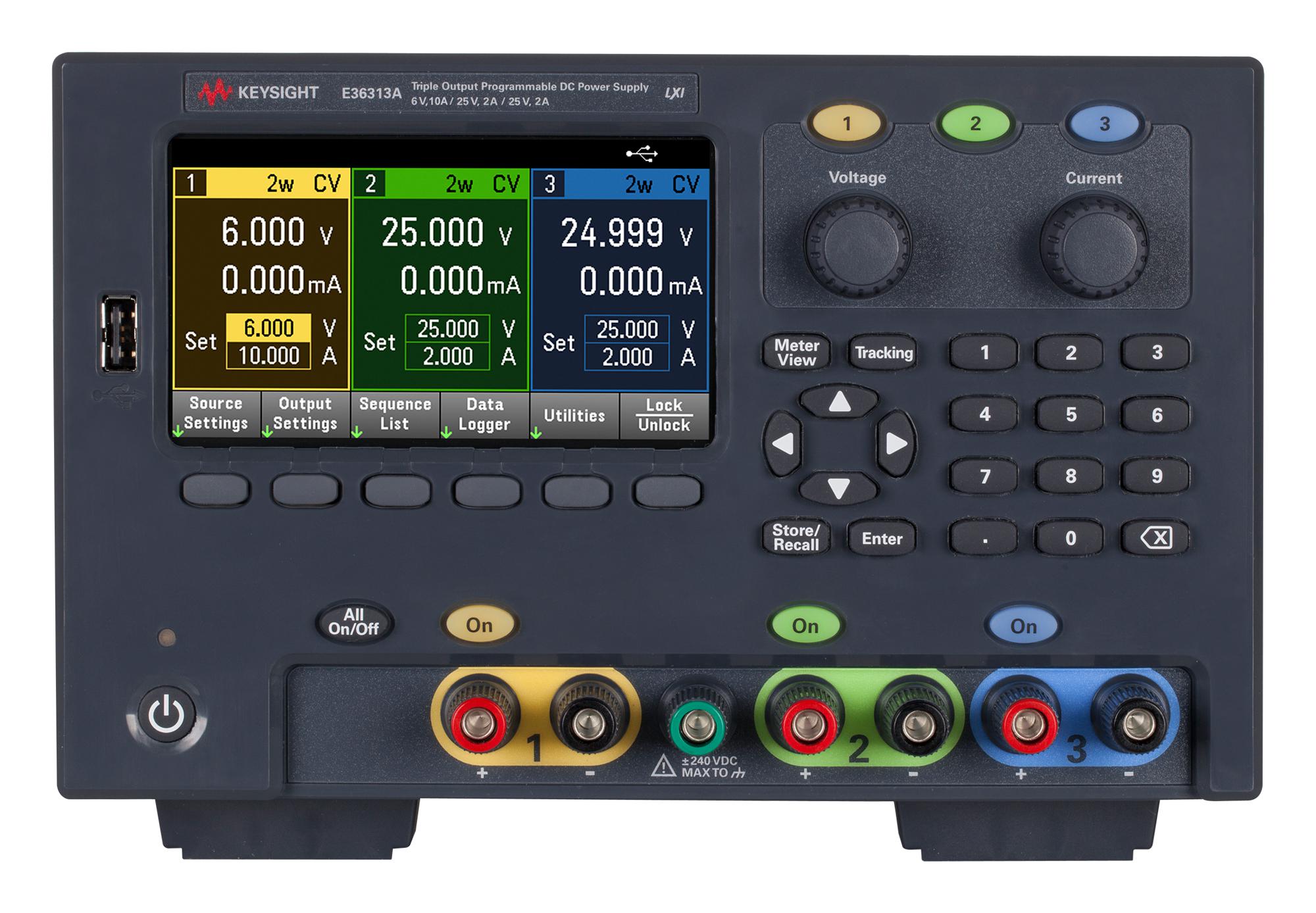

The Keysight E36313A is a triple-output programmable DC power supply from the E36300 series. It offers a total power output of 160W with three independent channels: Channel 1 provides 0-6V / 0-10A, while Channels 2 and 3 each deliver 0-25V / 0-2A. The device features high load and line regulation (0.01%), ensuring steady output under varying power line and load conditions. Its intuitive front panel includes a 4.3-inch color LCD display that shows voltage and current for all channels simultaneously, with color-coded channels for easy manual setup. Additional functionalities include data logging, output sequencing, LIST mode, auto series/parallel mode, and measurement enhancements like 4-wire sensing for improved accuracy. The power supply supports USB, LAN interfaces, and digital I/O port, with electrically isolated outputs for safety. Designed with two independent knobs for voltage and current control, it provides increased testing throughput via SCPI programming language, and offers comprehensive protection. It operates on 100, 115, or 230V AC input (±10%), at 50/60Hz, with safety certifications according to UL 61010-1 standards. Its precise regulation and measurement accuracy make it suitable for test and measurement applications.

View E36313ADatasheet [pdf]

Buy the Buy Keysight E36313A Triple Output Power Supply Part Number E36313A Online

Experience reliable power with the Keysight E36313A, a triple-output DC power supply designed for precision testing and measurement. It features independent channels, 4-wire sensing for improved accuracy, extensive data logging, sequencing modes, and auto series/parallel configurations. The intuitive front panel with a large color display allows quick and easy setup, while interfaces including USB, LAN, and digital I/O provide flexible connectivity. Its robust safety protections and UL certification ensure safe operation in demanding industrial and laboratory environments. The E36313A offers high regulation accuracy, making it ideal for production testing, research, and development projects.

Order your Keysight E36313A triple-output power supply today and enhance your testing efficiency with precise voltage regulation and advanced features.
