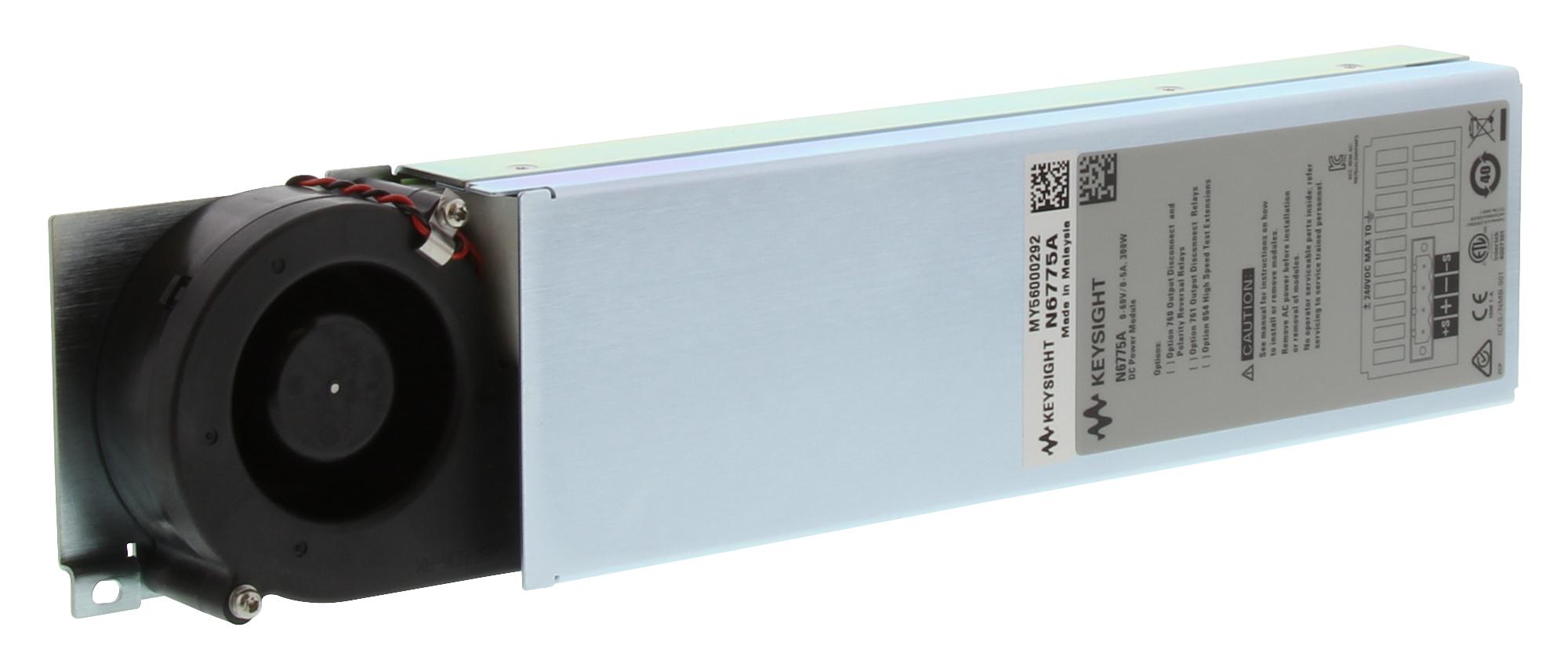

KEYSIGHT TECHNOLOGIES N6775A DC Power Module
The Keysight N6775A is a 60V, 5A, 300W basic DC power module designed for programmable voltage and current output, measurement, and protection. It is ideal for automated test equipment (ATE) systems used in research and development, design validation, and manufacturing. The compact size allows up to four outputs within a 1U rack space, offering a flexible modular system for customizable power and performance levels to optimize testing. Suitable for critical test requirements and basic DC power needs, it features fast command processing and output speeds to enhance throughput. Connectivity options include GPIB, LAN, and USB, and it is fully compliant with LXI Class C standards. Applications include test and measurement and power management.
KEYSIGHT TECHNOLOGIES N6775A DC Power Module Specifications:
- Voltage: 60 V
- Current: 5 A
- Power: 300 W
- Measurement Accuracy Voltage: 0.1% + 20 mV
- Measurement Accuracy Current: 0.15% + 20 mA
- Ripple & Noise: 15 mV (p-p)
- Output Disconnect Relays: Option 761
- Connectivity: GPIB, LAN, USB 2.0, LXI Class C
- Size: Occupies a single module slot in a 1U rack
- Input Voltage Range: 100-240 V AC
- Operating Environment: 0°C to 55°C, up to 95% humidity, 2000 meters altitude
- Dimensions (HxWxD): 44.45 mm / 17.53 in. / 23.06 in.
- Weight: 14.09 kg / 31 lbs.
- Protection Features: Over-voltage, over-current, over-temperature
Buy the Keysight Series N6700A 60V 5A Power Module: N6775A
Enhance your automated test equipment with the Keysight N6775A modular DC power module. It provides precise voltage and current control, rapid output speeds, and versatile connectivity via GPIB, LAN, and USB. Compact and efficient, it fits within 1U rack space, supporting multiple modules for scalable power solutions. Designed for research, development, and manufacturing, it features fast command processing, protection features, and full LXI Class C compliance. Get your N6775A online today for reliable, customizable power testing in your automation systems.
Order your Keysight Series N6775A 60V 5A power module today and enhance your automated test systems with reliable, flexible, and high-speed DC power capability.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6775A?
You can click on the BUY or RFQ button to purchase N6775A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6775A?
You can download the N6775A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6775A?
KEYSIGHT TECHNOLOGIES
