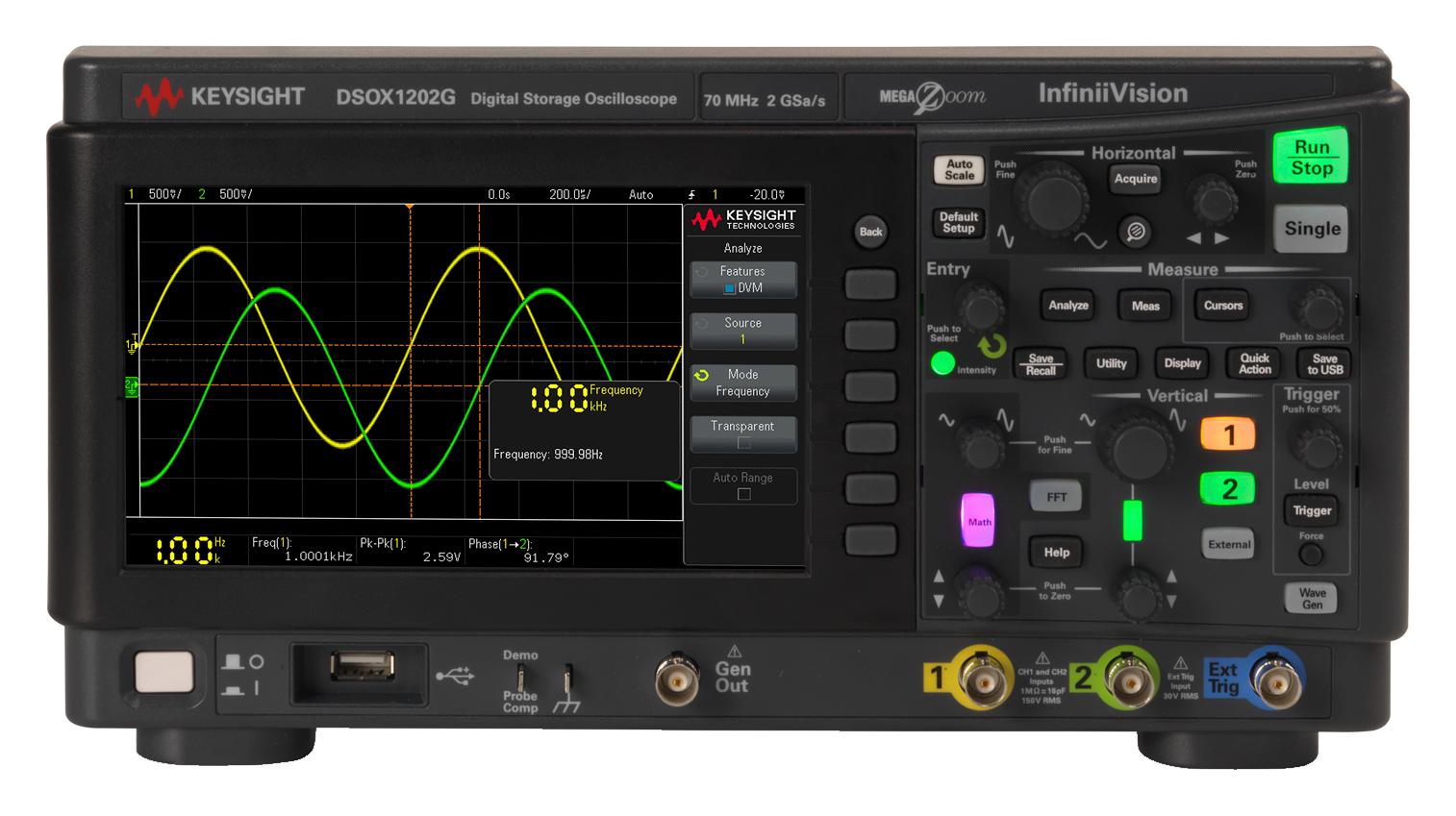

KEYSIGHT TECHNOLOGIES DSOX1202GDSOX1202A200 Digital Signal Oscilloscope
The InfiniiVision 1000 X-series 200MHz digital signal oscilloscope features two analog channels and offers a maximum sampling rate of 200,000 waveforms per second. It has an intuitive user interface with built-in help and training resources. The device supports serial protocols such as I²C, SPI, UART/RS-232, CAN, and LIN. It includes a 7-inch TFT LCD WVGA display, USB 2.0 ports (host and device), and LAN connectivity. Additional functionalities include mask/limit testing, an integrated digital voltmeter, a frequency counter, and advanced measurement capabilities such as Bode plots, math functions, FFT, and serial protocol analysis. The package contains the oscilloscope, standard passive probes, a calibration certificate, multilingual built-in help, GUI interface language support, and a localized power cord.
KEYSIGHT TECHNOLOGIES DSOX1202GDSOX1202A200 Digital Signal Oscilloscope Specifications:
- Bandwidth: 200 MHz
- Channels: 2 analog channels
- Maximum sampling rate: 200,000 waveforms/sec
- Display: 7-inch TFT LCD WVGA
- Input coupling: DC, AC (10 Hz–100 MHz)
- Input impedance: 1 MΩ ±2%, 16 pF
- Input voltage max: 150 V RMS
- Vertical resolution: 8 bits
- Memory depth: 2 M points per channel
- Trigger types: Edge, pattern, pulse width, setup/hold, video, serial protocols
- Smart protocol decode: I²C, SPI, UART/RS-232, CAN, LIN
- Math functions: Add, subtract, multiply, divide, FFT, low-pass filter
- Frequency measurement: 5-digit resolution
- Built-in measurements: Amplitude, timing, pulse count, voltage, frequency
- Connectivity: USB 2.0 host and device, LAN
- Additional features: Mask testing, serial analysis, Bode plots (G models), integrated voltmeter, frequency counter
- Power: 100–240 V, 50/60 Hz, approximately 50 W
- Dimensions: 314 mm x 165 mm x 130 mm
- Weight: ~3.23 kg
- Environmental: Operating from 0°C to +50°C, max 3000m altitude
Buy the Keysight Series 1000 X-Series Oscilloscope: DSOX1202G
Enhance your signal analysis with the Keysight 1000 X-Series 200MHz Oscilloscope. Featuring two channels, 200,000 waveforms/sec update rate, serial decoding, and an intuitive interface, it’s perfect for precise measurements. Whether for education or professional engineering, this device offers advanced functionalities like Bode plots, FFT, integrated voltmeter, and protocol analysis. Compact and easy to operate, it includes standard passive probes, a calibration certificate, multilingual support, and network connectivity. Order online now and elevate your testing and troubleshooting efficiency easily.
Order your Keysight Series 1000 X-Series DSOX1202G today and experience professional-grade signal analysis with versatile measurement capabilities.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1202GDSOX1202A200?
You can click on the BUY or RFQ button to purchase DSOX1202GDSOX1202A200 from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1202GDSOX1202A200?
You can download the DSOX1202GDSOX1202A200 datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1202GDSOX1202A200?
KEYSIGHT TECHNOLOGIES
