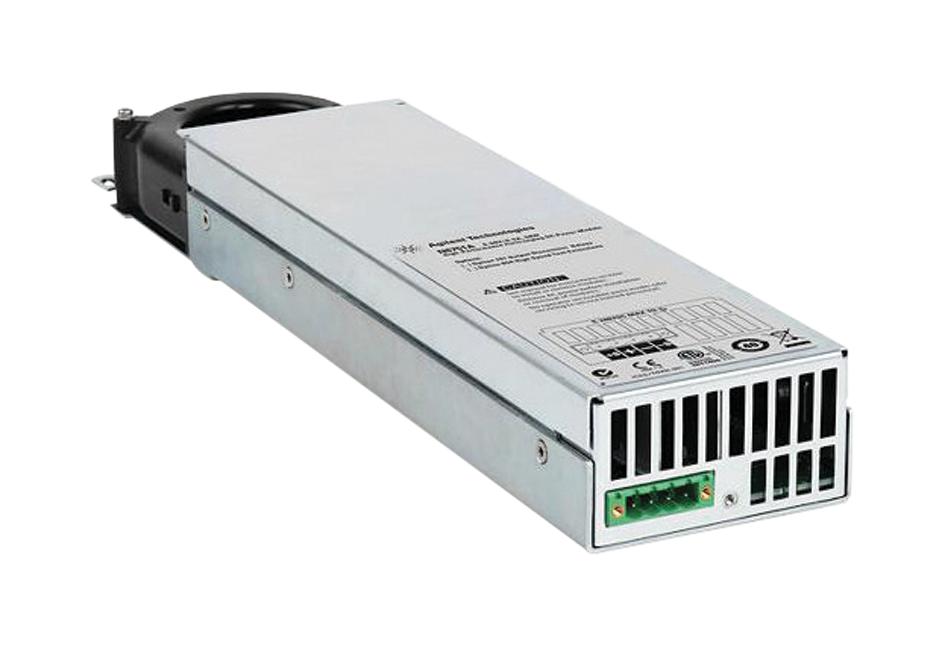

KEYSIGHT TECHNOLOGIES N6756A Basic DC Power Module
The Keysight N6756A is a 60V, 17A, 500W, basic DC power module designed for flexible laboratory and automated test setups. It provides programmable voltage and current, accurate measurements, and protection features to ensure reliable operation. Ideal for research, design validation, and manufacturing, this module features fast command processing, high-speed output, and multiple interface options including GPIB, LAN, and USB. Its modular design allows configuration of multiple modules for higher power needs, making it suitable for a wide range of applications such as device testing, power management, and system integration within comprehensive automated test systems.
KEYSIGHT TECHNOLOGIES N6756A Basic DC Power Module Specifications:
- Voltage: 60 V
- Current: 17 A
- Power: 500 W
- Output Type: Basic DC power supply
- Measurement Accuracy: 0.1% + 60 mV for voltage, 0.15% + 20 mA for current
- Protection Features: Over-voltage, over-current, over-temperature
- Interfaces: GPIB, LAN, USB
- Compliance: LXI Class C
- Command Processing: Fast response for high throughput
- Dimensions: Designed for modular rack systems, compatible with 1U size
- Operation Environment: Indoor use, temperature 0°C to 55°C, humidity up to 95%
- Weight: Approximately 0.5 kg
- Additional: Supports high-speed test extensions, sequencing, programmable voltage slew, parallel and series modes
Buy the Keysight Series N6756A Basic DC Power: 60V 17A 500W
Order the Keysight N6756A online today to enhance your test capabilities with this high-performance, programmable DC power module. Designed for flexibility, it offers precise voltage and current control, fast command response, multiple interface options, and robust protection features. Suitable for research, device validation, and manufacturing, this module integrates seamlessly into automated test systems, saving space and improving throughput. Its modular construction allows scaling for higher power demands, ensuring reliable power delivery and measurement accuracy for demanding applications in R&D and production environments.
Get Keysight N6756A today—built for precision and reliable power delivery in automated test systems.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6756A?
You can click on the BUY or RFQ button to purchase N6756A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6756A?
You can download the N6756A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6756A?
KEYSIGHT TECHNOLOGIES
