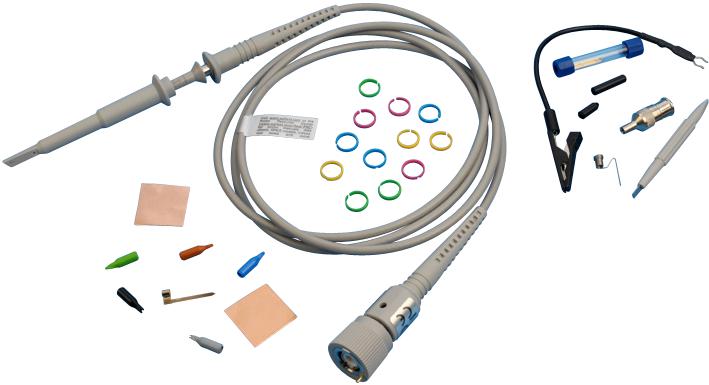

KEYSIGHT TECHNOLOGIES N2894A Digital Probe
The N2894A is a passive probe compatible with Keysight InfiniiVision 4000 X series oscilloscopes, offering a bandwidth of DC to 700 MHz and a 10:1 attenuation ratio. Its compact 2.5 mm probe head, low input capacitance, and fine-pitch accessories enable precise probing of densely populated ICs and surface-mount devices in high-speed digital applications. Features include a sharp spring-loaded tip, insulating IC caps for stability, flat blade ground connector, and optional accessories. Designed for high-speed digital testing, it ensures reliable measurements with a 9.5 pF input capacitance and 10 MΩ resistance.
KEYSIGHT TECHNOLOGIES N2894A Digital Probe Specifications:
- Bandwidth: DC to 700 MHz
- Attenuation Ratio: 10:1
- Input Resistance: 10 MΩ (when connected to 1 MΩ oscilloscope input)
- Input Capacitance: 9.5 pF
- Scope Compensation Range: 10 to 25 pF
- Probe Head Diameter: 2.5 mm
- Probe Tip: Fine-pitch, spring-loaded
- Ground Connection: Flat blade ground connector and copper ground pad
- Application: High-speed digital circuit analysis
- Compatibility: Keysight InfiniiVision 4000 X series oscilloscopes
Buy the Agilent N2894A – Reliable Digital Probe for High-Speed Applications
Purchase the Agilent N2894A digital probe online today to elevate your high-speed digital measurements. Designed for compatibility with InfiniiVision 4000 X series oscilloscopes, it offers a bandwidth of DC to 700 MHz and 10:1 attenuation. Its compact size, low input capacitance, and fine-pitch accessories make probing densely packed ICs and surface-mount devices efficient and accurate. Whether for debugging digital circuits or analyzing high-frequency signals, this probe ensures stable, high-quality signal capture, enabling reliable and precise diagnostics for advanced electronic testing needs.
Order your Agilent Series N2894A digital probe today and enhance your high-speed digital testing precision with reliable performance.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N2894A?
You can click on the BUY or RFQ button to purchase N2894A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N2894A?
You can download the N2894A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N2894A?
KEYSIGHT TECHNOLOGIES
