KEYSIGHT TECHNOLOGIES E36312A Datasheet & Stock

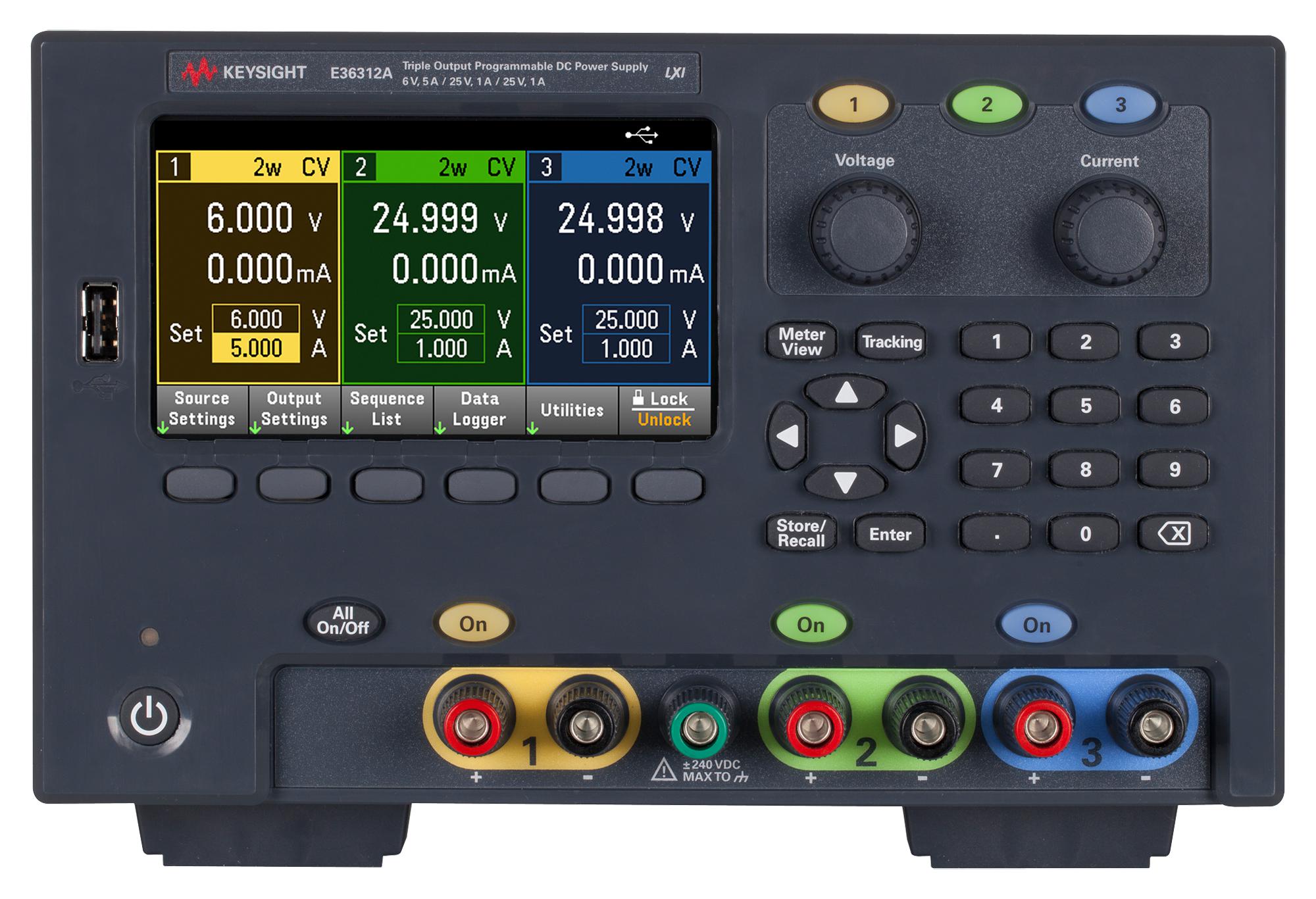

The E36312A from Keysight Technologies is an E36300 series triple output programmable DC power supply. Besides the 0.01% load and line regulation, the E36312A can also maintain a steady output when power line and load changes occur, giving more peace of mind. The user interface is intuitive and makes operation easy and improves your productivity. The 4.3inch LCD colour display can show the voltage and current of all three channels at the same time and the colour coded channel also simplifies manual set-up. The E36312A features data logger, output sequencing, output LIST mode, auto Auto series/parallel connections, convenient front and rear output terminals, improved measurement accuracy with 4-wire sensing, front panel USB, digital I/O port & electrically isolated outputs.




80W power output, 0 to 6V/0 to 5A (CH1), 0 to 25V/0 to 1A (CH2, 3) DC output

More test throughput via connectivity and easy to use SCPI programming language

More protection for device under test (DUT), 100, 115 or 230V AC input (±10%), 50/60 Hz, 250VA

Two individual knobs for voltage and current with rotary encoder control for precise setting

USB 2.0, LAN interface, transient response time

UL 61010-1 3rd edition, CAN/CSA-C22.2 No. 61010-1-12, IEC 61010-1:2010 3rd edition safety



0.03% +2mV /0.04% + 3mA (CH1), 0.03% +5mV/0.04% +2mA (CH2, 3) programming accuracy

0.04% +2mV/0.04% + 3mA (CH1), 0.04% + 5mV/0.04% + 3mA (CH2, 3) readback accuracy

145 x 216 x 367mm (H x W x D) dimension, 8.3kg weight, 0 to 40°C operating temperature





Applications


Test & Measurement






Contents

E36312A DC power supply, AC power cord (based on destination country), 0360-3139, 0360-3140 & 0360-3155 connector terminal blocks.
