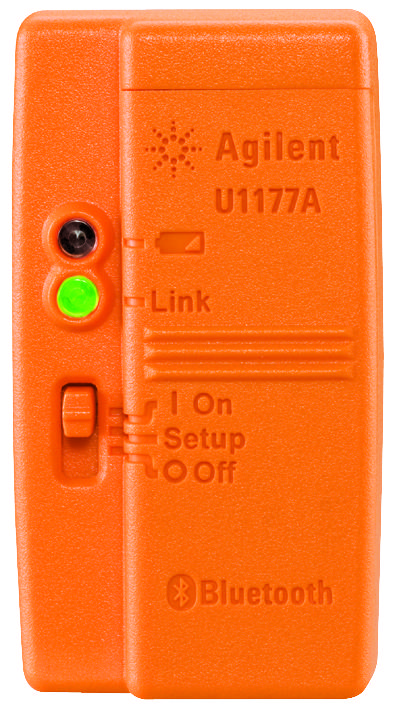

KEYSIGHT TECHNOLOGIES U1177A Infrared Bluetooth Adapter
The U1177A Infrared (IR)-to-Bluetooth adapter provides wireless connectivity for Keysight handheld multimeters by attaching to the IR port. Powered by two 1.5V AAA batteries, it offers Bluetooth connection to models in the U1210, U1230, U1240, U1250, and U1270 series. It features LED indicators for battery status and Bluetooth connection, a slide switch for power control, and supports operation within -20°C to 55°C. The device simplifies remote measurements and data logging, enhancing workflow efficiency in industrial and laboratory environments.
KEYSIGHT TECHNOLOGIES U1177A Infrared Bluetooth Adapter Specifications:
- Frequency: 2402 MHz ~ 2480 MHz
- Antenna Power: 1 mW or less
- Number of Channels: 79
- Modulation: GFSK / PSK
- Operating temperature: -20°C to 55°C
- Storage temperature: -40°C to 70°C
- Relative humidity: up to 95% at 40°C (non-condensing)
- Power consumption: Max 130 mVA for two 1.5 V AAA batteries
- Battery life: approximately 30 hours (continuous data transfer)
- Battery type: Alkaline 24 A or Zinc Chloride 24 D
- Dimensions: 39.0 x 71.0 x 37.0 mm
- Weight: 60 g with batteries
- Bluetooth version: 2.1 + EDR, Class 2
- Safety approvals: FCC, IC, EN standards
- Warranty: 3 months
Buy the Keysight Series U1177A IR-to-Bluetooth Adapter: U1177A
Upgrade your measurement setup with the Keysight U1177A IR-to-Bluetooth Adapter, enabling wireless remote access to compatible multimeters. Easily attach to the IR port and pair with Android devices for remote control, data logging, and trending analysis. The compact, lightweight design ensures portability, while the LED indicators provide quick status updates on battery and Bluetooth connection. Ideal for industrial, laboratory, or field environments, this adapter enhances efficiency and data accuracy in wireless measurements, supporting operation across a wide temperature range for versatile use.
Buy Keysight U1177A IR-to-Bluetooth Adapter now and experience reliable wireless connectivity and streamlined remote measurement capabilities.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES U1177A?
You can click on the BUY or RFQ button to purchase U1177A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part U1177A?
You can download the U1177A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of U1177A?
KEYSIGHT TECHNOLOGIES
