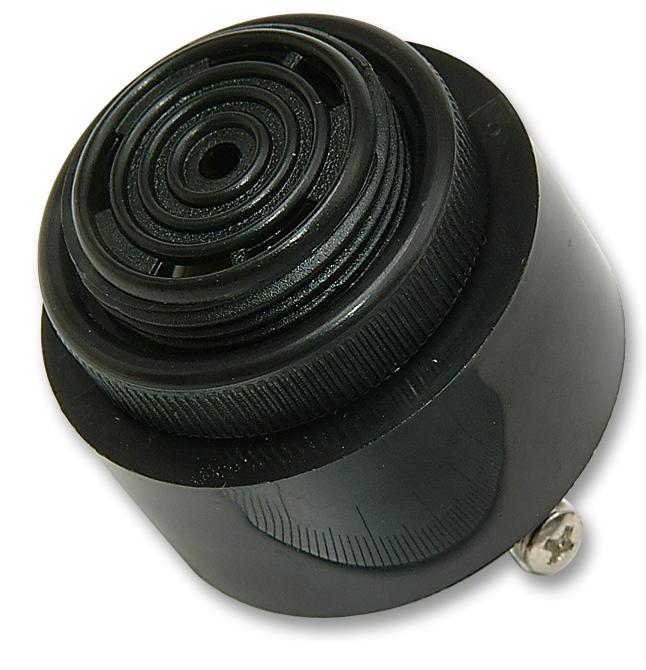

KINGSTATE KPEG650SA Piezo Audio Indicator
The KPEG-650SA is a high-performance piezo audio indicator designed for reliable audio signaling in industrial environments. This black device delivers a sound pressure level of at least 94dB, ensuring audible alerts in noisy settings. Made with durable ABS UL-94 materials, it features a resonant frequency of 28.405 KHz and operates on a voltage range of 6 to 28 V AC/DC. Its compact dimensions of approximately 42.5mm x 33.0mm and weight of 33.9 grams make installation straightforward. Suitable for temperatures from -30°C to +85°C, it is ideal for industrial automation, alarms, and warning systems requiring robust and dependable audio signals.
KINGSTATE KPEG650SA Piezo Audio Indicator Specifications:
- Resonant frequency: 28.405 KHz
- Operating Voltage Range: 6-28 V AC/DC
- Current Consumption: Max 12 mA at 12VDC
- Sound Pressure Level: Min 94dB at 30cm/12VDC
- Rated Voltage: 12 VDC
- Sound Tone: Continuous at 12VDC
- Operating Temperature Range: -30°C to +85°C
- Storage Temperature Range: -40°C to +95°C
- Dimensions: 42.5mm x 33.0mm
- Weight: 33.9 grams
- Material: ABS UL-94, Black
- Terminal: Tin-Plated Tapped Screw
- Protection Regulation: RoHS compliant
- Environmental Resistance: 6 months preservation at room temperature
Buy the Kingstate KPEG650SA – Reliable Piezo Audio Indicator for Industrial Applications
Enhance your safety and alert systems with the Kingstate KPEG650SA Piezo Audio Indicator. Featuring a robust ABS black housing and a sound pressure level of at least 94dB, it ensures clear audible signals in industrial environments. Operating efficiently from 6 to 28V AC/DC, it is ideal for alarms, warning devices, and automation signaling. Its compact size, light weight of 33.9 grams, and high-temperature resilience make it easy to deploy in diverse applications. Order online now to ensure reliable performance and quick delivery for your industrial projects.
Order your Kingstate Series KPEG650SA today and equip your systems with dependable, loud audio alerts suitable for harsh industrial environments.
Frequently Asked Questions
Where can I buy KINGSTATE KPEG650SA?
You can click on the BUY or RFQ button to purchase KPEG650SA from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KPEG650SA?
You can download the KPEG650SA datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KPEG650SA?
KINGSTATE
