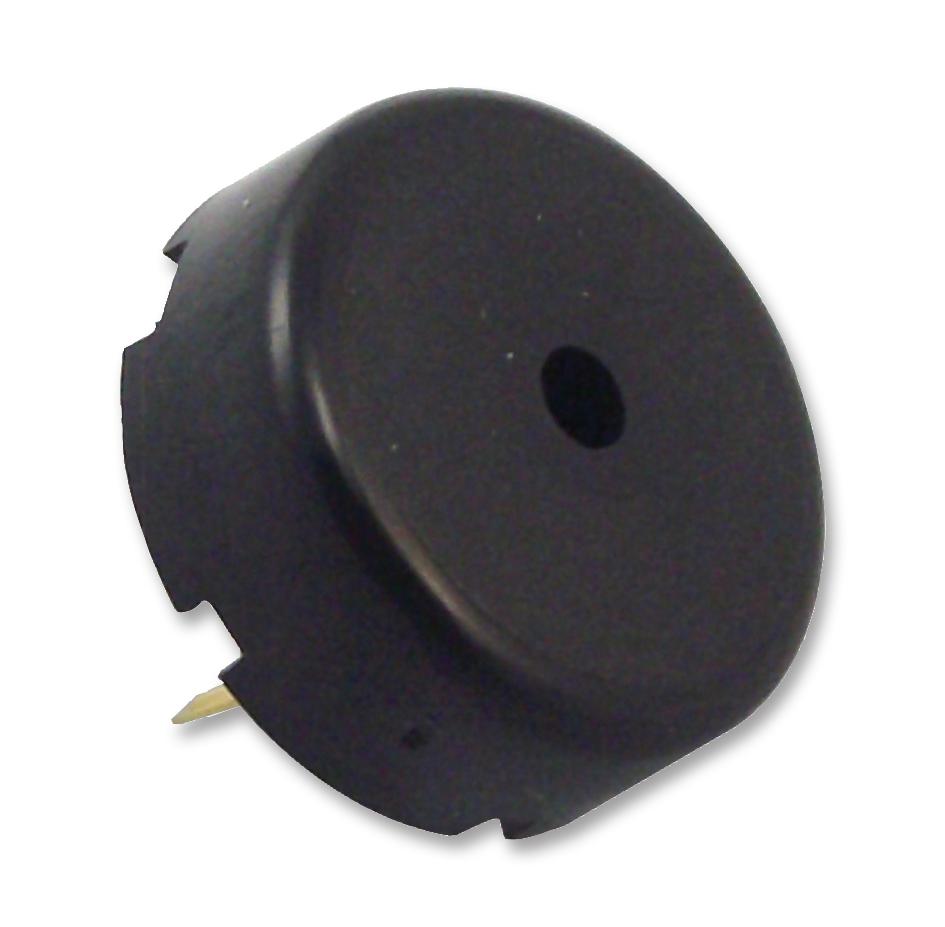

KINGSTATE KPEG812 Piezo Audio Transducer
The KPEG812 is a high-performance piezo audio transducer designed for sound alert applications in electronic devices and industrial equipment. It features a compact size, with a diameter of 22.1mm and height of 6.6mm, and weighs only 25 grams. Constructed with high heat-resistant ABS material (UL-94 V-0), it operates efficiently within a temperature range of -40°C to +85°C and withstands humidity levels of 40-95%. The transducer offers a sound pressure level of at least 92dB at 10cm when powered with 10Vp-p square wave at 4.0kHz, making it ideal for alert systems requiring clear audio signals.
KINGSTATE KPEG812 Piezo Audio Transducer Specifications:
- Dimensions: 22.1mm diameter x 6.6mm height
- Weight: 25 grams
- Material: ABS UL-94 V-0 high heat resistance
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +95°C
- Sound Pressure Level: 92dB min at 10cm/10Vp-p square wave at 4.0kHz
- Electrostatic Capacity: 25,000 pF ±30% at 1kHz/1V
- Rated Voltage: 10 Vp-p square wave
- Current: MAX 11mA at 10Vp-p, 4kHz
- Protection: RoHS compliant
Buy the Kingstate Series KPEG Transducer: KPEG812
Order the Kingstate KPEG812 piezo audio transducer online today and enjoy fast delivery and excellent performance. Designed for sound alert applications, it provides a sound pressure level of at least 92dB at 10cm when powered with 10Vp-p at 4.0kHz. Its compact size of 22.1mm diameter and 6.6mm height makes it perfect for space-constrained devices. Built with high heat-resistant ABS material, it withstands temperatures from -40°C to +85°C and operates reliably in humid environments. Enhance your alert systems with this durable, efficient transducer for industrial and consumer electronics.
Buy Kingstate KPEG812 now and experience powerful sound alert performance with reliable operation in compact design.
Frequently Asked Questions
Where can I buy KINGSTATE KPEG812?
You can click on the BUY or RFQ button to purchase KPEG812 from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KPEG812?
You can download the KPEG812 datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KPEG812?
KINGSTATE
