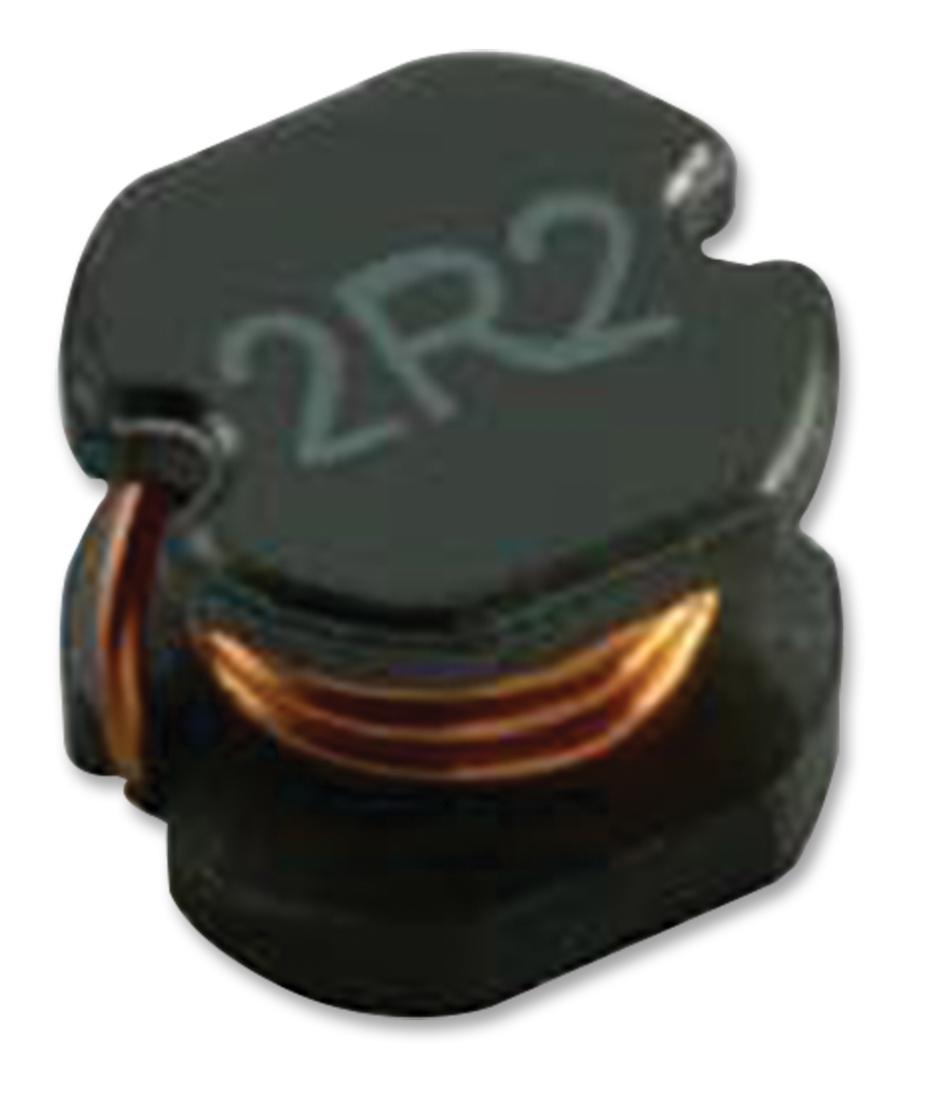

KYOCERA AVX LMXN0605M470DTAS SMD Power Inductor
The KYOCERA AVX LMXN series power inductors are non-shielded SMD components designed for a variety of applications including LCD televisions, notebooks, portable communication devices, and DC/DC converters. These inductors feature an open magnetic circuit construction, offering a small surface area and efficient performance. They are available in various sizes and inductance ranges to meet diverse design requirements. The LMXN0605M470DTAS specifically offers a balance of size and performance for space-constrained applications.
KYOCERA AVX LMXN0605M470DTAS SMD Power Inductor Specifications:
- Rated Current (IDC): The DC current that will cause an approximate ΔT of 40°C. (Ta=25°C)
- Operating temperature range: -40°C ~ +125°C
- Inductance Range (0605): 10.0μH ~ 220 μH
- Rated Current Range (0605): 1.44 ~ 0.35A
- Dimensions (0605): 5.80 ± 0.30mm (A) x 5.20 ± 0.30mm (B) x 4.50 ± 0.35mm (C) x 6.00mm (D) x 1.70mm (E) x 2.15mm (F) x 5.50mm (G)
- Electrical Specifications: at 25°C
- Tolerance: ±20%
- Test Condition: 100KHz, 1.0V
Buy the LMXN0605M470DTAS KYOCERA AVX SMD Power Inductor | myMectronic
Purchase the KYOCERA AVX LMXN0605M470DTAS SMD Power Inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX LMXN0605M470DTAS?
You can click on the BUY or RFQ button to purchase LMXN0605M470DTAS from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part LMXN0605M470DTAS?
You can download the LMXN0605M470DTAS datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of LMXN0605M470DTAS?
KYOCERA AVX
