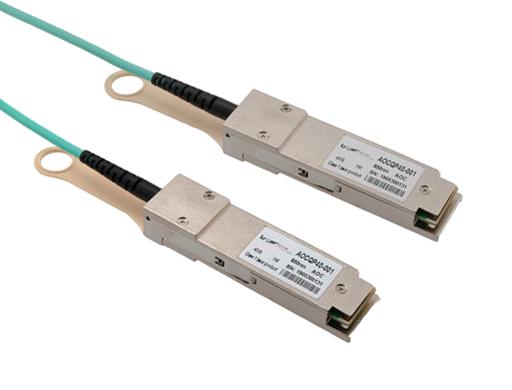

L-COM AOCQP40001 Active Optical Cable QSFP+
The L-COM AOCQP40-001 is a high-performance active optical cable specifically engineered for 40 Gigabit Ethernet applications. This QSFP+ cable provides a reliable and efficient solution for data transmission in data centers, HPC environments, and Fibre Channel systems. It's electrically and mechanically compliant with the QSFP+ MSA, enabling greater link distances and reduced power consumption compared to traditional transceiver setups. The AOCQP40-001 is ideal for applications requiring high bandwidth and reliable connectivity.
L-COM AOCQP40001 Active Optical Cable QSFP+ Specifications:
- Module Form Factor: QSFP+
- Number of Lanes: 4 Tx /Rx
- Maximum Aggregate Data Rate: 42.0 Gbps
- Maximum Data Rate per Lane: 10.5 Gbps
- Standard Cable Lengths: 3, 5, 7, 10, 50, 100 meters
- Protocols Supported: Infiniband, Fiber Channel, 40GEthernet
- Electrical Interface: 38-pin edge connector
- Standard Optical Cable Type: Multimode ribbon fiber cable assembly
- Maximum Power Consumption per End: 1.5 W
- Management Interface: Serial, I2C-based, 400 kHz
- Storage Temperature: -40 to 85 ºC
- Relative Humidity: 5 to 95 %
- Power Supply Voltage: -0.3 to 4 V
- Signal Input Voltage: -0.3 to Vcc+0.3 V
- Power Supply Voltage (Recommended Operating Conditions): 3.14 to 3.46 V
- Power Supply Current: 450 mA per cable end
- Case Operating Temperature: 0 to 70 ºC
- Differential data input swing: 180 to 1000 mV
- Single ended input voltage tolerance: -0.3 to 4.0 V
- Differential data output swing: 300 to 850 mV
- Single-ended output voltage: -0.3 to 4.0 V
- Output Rise and Fall time (20% to 80%): 24 ps
- Deterministic Jitter: 0.15 UI
- Total Jitter: 0.40 UI
- Output Deterministic Jitter: 0.38 UI
- Output Total Jitter: 0.64 UI
