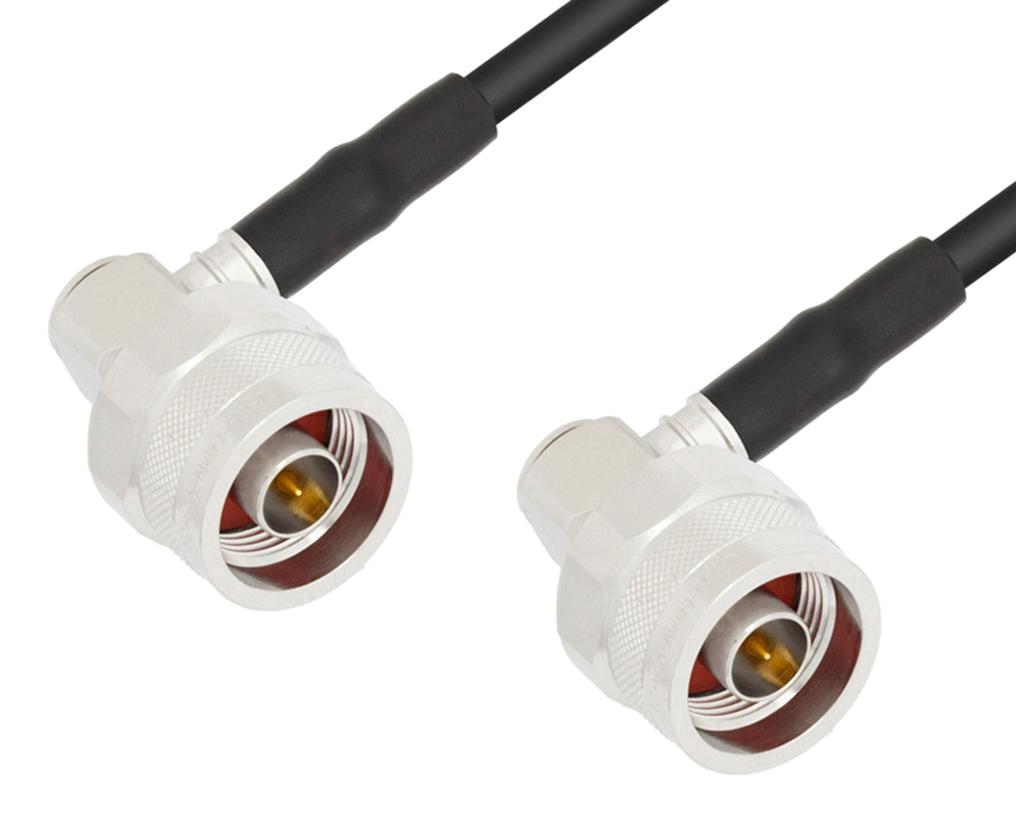

L-COM LCCA30155FT2 RF Cable Assembly
L-com’s LCCA30155-FT2 is a low loss N male right angle to N male right angle cable assembly using LMR-195 coax, 2 FT with Times Microwave components. It features low insertion loss, shielding effectiveness over 90 dB, and operates up to 5.8 GHz. The flexible design with a PE jacket makes it suitable for tight spaces in RF applications including land mobile radio, Wi-Fi, cellular systems, and antenna installations. The assembly offers easy connection in compact setups, ensuring optimal performance for diverse communication needs.
L-COM LCCA30155FT2 RF Cable Assembly Specifications:
- Frequency Range: 0 to 5.8 GHz
- Impedance: 50 Ohms
- Shielding Effectiveness: > 90 dB
- Insertion Loss: Typ. 0.51 dB at 0.25 GHz, up to 0.99 dB at 5.8 GHz
- Velocity of Propagation: 80%
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- Outer Conductor: 4.9 Ohms/1000ft
- Jacket Voltage: 3,000 Vrms
- Cable Type: LMR-195
- Length: 24 inches (609.6 mm)
- Diameter: 0.8 inches (20.32 mm)
- Weight: 0.209 lbs (94.8 g)
- Connector: N Male Right Angle, gold-plated brass
- Dielectric: PE (F)
- Bend Radius: 0.5 inches (12.7 mm)
- Min. Repeated Bend Radius: 2 inches (50.8 mm)
- Operating Temperature Range: -40°C to +85°C
Buy the Buy L-COM RF Cable Assembly Part Number LCCA30155FT2 Online
Order the Cor GLOBAL CONNECTIVITY SOLUTIONS RF cable assembly online today. Designed with high-quality LMR-195 coax and Times Microwave components, this 2 ft right angle N male to N male cable ensures excellent low-loss performance, superior shielding over 90 dB, and reliable operation up to 5.8 GHz. Its flexible design and durable PE jacket make installation in tight spaces straightforward, making it perfect for land mobile radios, Wi-Fi, cellular systems, and antenna setups. Purchase now for fast delivery and premium quality connectivity solutions.
Get Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30155-FT2 today—built for precision and long-lasting durability in demanding communication environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30155FT2?
You can click on the BUY or RFQ button to purchase LCCA30155FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30155FT2?
You can download the LCCA30155FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30155FT2?
L-COM
