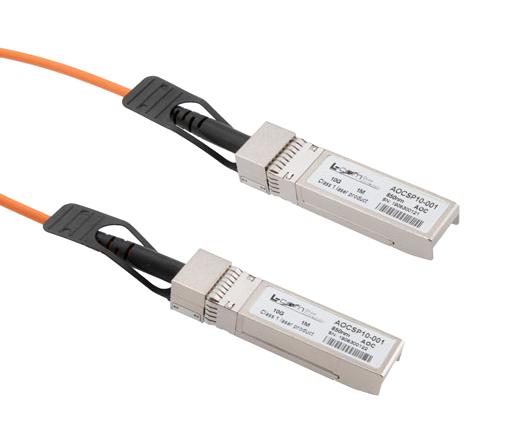

L-COM AOCSP10002 Active Optical Cable
The AOCSP10-001 is a 1-meter active optical cable designed for 10 Gigabit Ethernet links, supporting data rates up to 11.1 Gbps over long distances, with maximum link lengths of 100 meters. It complies with SFF-8431 and SFF-8432 standards and features high-reliability 850nm VCSEL technology. Its electrically hot-pluggable design makes it ideal for data centers, intra-rack, and inter-rack applications, providing a cost-effective, low-power solution with power dissipation below 1.0W per end and operating temperature from 0°C to 70°C.
L-COM AOCSP10002 Active Optical Cable Specifications:
- Maximum Data Rate: 11.1 Gbps
- Cable Length: 1 meter
- Cable Form Factor: SFP+
- Maximum Link Length: 100 meters
- Technology: 850nm VCSEL
- Power Dissipation: < 1.0W per cable end
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95%
- Compliance: RoHS
- Electrical Interface: SFF-8431, Mechanical Compliance: SFF-8432
- Supported Protocols: 10G Ethernet, Fibre Channel, Infiniband
- Cable Type: Multimode ribbon fiber
- Connector: 20-pin edge connector
- Voltage: 3.14V to 3.46V
- Current: 300mA per end
- Length: 39.37 inches (100 cm)
Buy the Buy INFINITG Active Optical Cable SFP+ Part Number AOCSP10002 Online
Secure your high-speed networking setup with the INFINITG Active Optical Cable. Designed for 10Gbps data rates and supporting up to 100 meters, this 1-meter MSA-compatible fiber optic cable ensures reliable, low-latency data transfer within data centers. Its high-efficiency VCSEL technology offers durability and low power consumption under operating temperatures of 0°C to 70°C. Easy to install and hot-pluggable, it’s an essential component for modern enterprise networks seeking speed, efficiency, and scalability. Order online today and enhance your network performance effortlessly.
Buy INFINITG AOCSP10002 now and experience unmatched reliability and performance in high-speed data transmission.
Frequently Asked Questions
Where can I buy L-COM AOCSP10002?
You can click on the BUY or RFQ button to purchase AOCSP10002 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCSP10002?
You can download the AOCSP10002 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCSP10002?
L-COM
