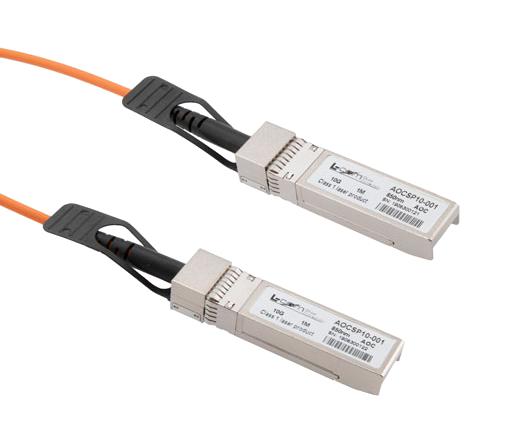

L-COM AOCSP10005 Active Optical Cable
The active optical cable compatible with SFP+ modules supports data rates up to 11.1 Gbps over lengths up to 100 meters, ideal for high-speed 10G Ethernet applications in data centers. It features high-reliability 850nm VCSEL technology, is electrically hot-pluggable, and complies with industry standards SFF-8431 and SFF-8432. The cable is designed for intra-rack and inter-rack connections, with power dissipation below 1 watt per end and an operating temperature range of 0°C to 70°C, ensuring robust performance and easy deployment in demanding environments.
L-COM AOCSP10005 Active Optical Cable Specifications:
- Maximum Data Rate: 11.1 Gbps
- Maximum Link Length: 100 meters
- Channel Technology: 850nm VCSEL
- Power Dissipation: < 1.0W per cable end
- Connector Type: SFP+ compliant
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95%
- Compliance: SFF-8431, SFF-8432
- Cable Length: 1 meter
- Cable Color: Orange
- Power Supply Voltage: 3.14V to 3.46V
- Standards: MSA compatible
- Application: 10G Ethernet, Data Center Links
- Management Interface: Serial, I2C
- Maximum Power: 1.0W per end
Buy the Buy INFINITG Active Optical Cable SFP+ Part Number AOCSP10005 Online
Purchase the INFINITG Active Optical Cable compatible with SFP+ modules, measuring 1 meter, supporting data rates up to 11.1 Gbps. Ideal for intra-rack and inter-rack connectivity in data centers, it features high-reliability 850nm VCSEL technology, low power consumption under 1 watt, and complies with industry standards SFF-8431 and SFF-8432. This cable ensures robust, high-speed data transfer over distances up to 100 meters, offering a cost-effective and scalable solution for high-performance Ethernet links with easy hot-plug capability and broad environmental tolerance.
Get INFINITG AOCSP10005 today—designed for high-speed data transfer, low power consumption, and reliable performance in data centers.
Frequently Asked Questions
Where can I buy L-COM AOCSP10005?
You can click on the BUY or RFQ button to purchase AOCSP10005 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCSP10005?
You can download the AOCSP10005 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCSP10005?
L-COM
