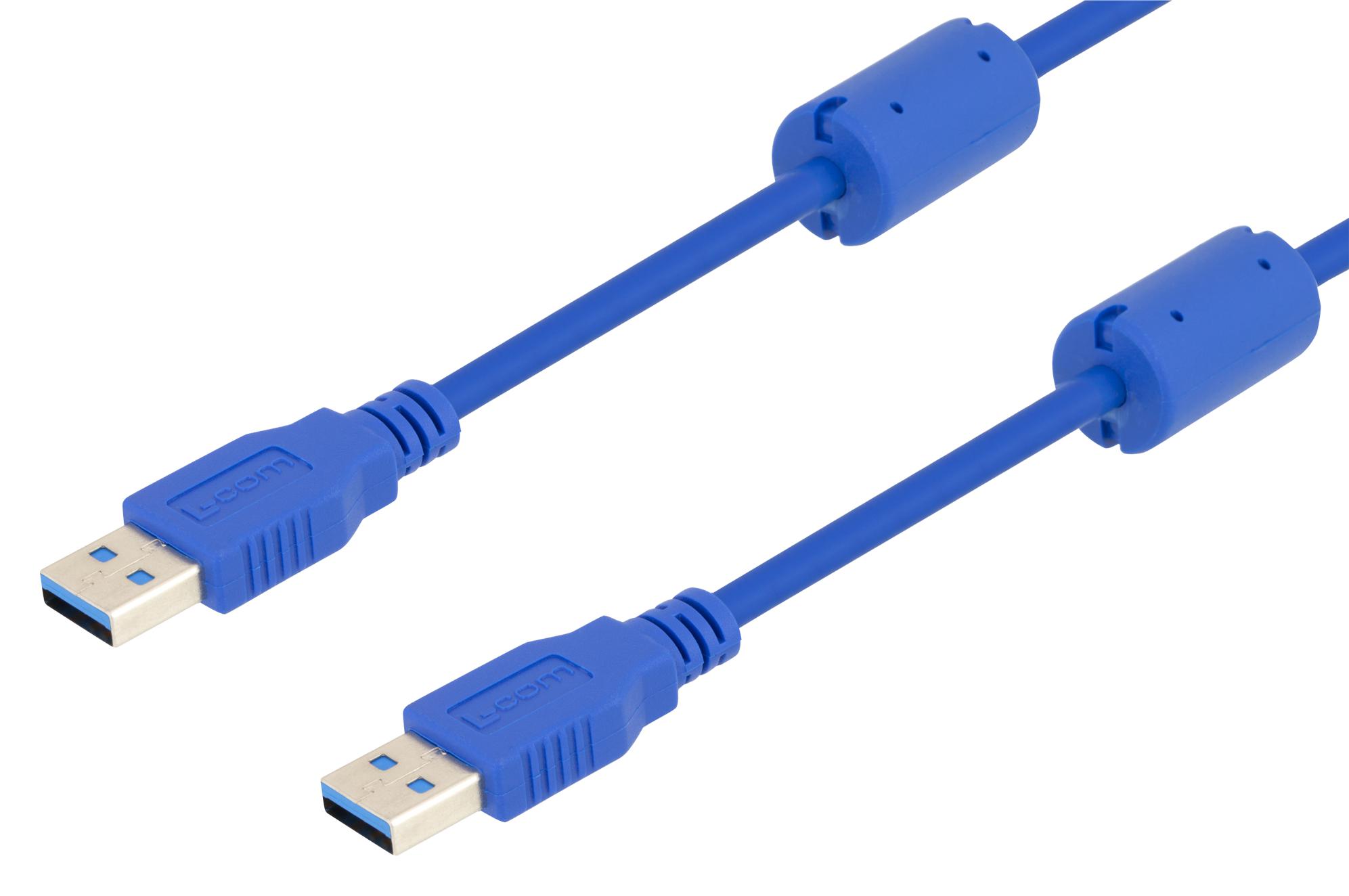

L-COM U3A000081M USB Connector Assembly
This USB 3.0 Type A male connector assembly features a molded hood, strain relief, and a blue dielectric insulator with PANTONE 300C coloring. It includes a gold-plated contact interface, a 30-inch PVC jacket, and a twisted pair cable design compliant with USB 3.0 standards for high-speed data transfer. The assembly ensures 360° shield termination, individual packaging, and testing for continuity, making it suitable for professional applications requiring reliable and durable connections. It is ideal for high-performance data and power transfer in industrial or commercial environments.
L-COM U3A000081M USB Connector Assembly Specifications:
- Cable Length: 30 inches (0.5, 1.0, 1.5 meters options)
- Wire Gauge: 30 AWG for twisted pair, 24 AWG for overall braid shield
- Jacket Material: PVC, blue (Pantone 300C)
- Conductors: 2 twisted pairs with foil shield and drain wire, one unshielded twisted pair
- Connector: USB 3.0 Type A plug, gold-plated contacts
- Shielding: 360° foil shield and braided shield, overall 65% coverage
- Compliance: USB 3.0 standards, UL Style 20276, RoHS compliant
- Temperature Rating: Not specified
- Dimensions: Not specified
- Certification: UL Listed
- Color: Blue with Pantone 300C color coding
Buy the L-Com Series USB 3.0 Connectors: U3A000081M
Order the USB Connector Assembly with 30-inch twisted pair cable online today. This high-quality assembly features gold-plated contacts, shielded design, PVC jacket, and compatibility with USB 3.0 standards. It offers reliable data transfer and durability for industrial, professional, and commercial applications. The assembly is individually packaged, tested for continuity, and ensures 360° shield termination for maximum interference protection. Enhance your connectivity system by purchasing this durable and high-performance USB 3.0 cable assembly today.
Buy L-Com USB 3.0 connector assembly with shielded twisted pair cable now and experience unmatched reliability and performance for high-speed data applications.
Frequently Asked Questions
Where can I buy L-COM U3A000081M?
You can click on the BUY or RFQ button to purchase U3A000081M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U3A000081M?
You can download the U3A000081M datasheet or visit the L-COM website for support.
Who is the manufacturer of U3A000081M?
L-COM
