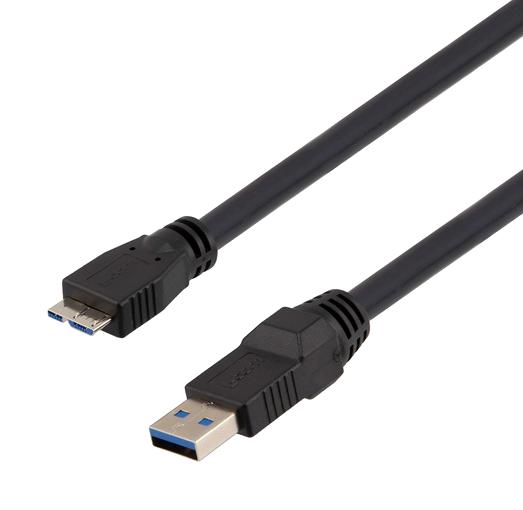

L-COM CAU3HFAMBBLK05M USB 3.0 High Flex Cable
The CAU3HFAMB family comprises high flex, drag chain rated USB cable assemblies designed for continuous motion environments, such as factory automation and camera systems. Manufactured by L-com, these cables are tested for 5 million flex cycles and feature rugged construction with molded connector ends for enhanced durability. The assembly includes a Type A male (plug) connector at one end and a Micro B male (plug) connector at the other, with fully shielded cables to ensure maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI). Constructed with 22 AWG power conductors, they support high current transfer capabilities. The cables feature a blue PVC jacket conforming to style 20276 with a VW-1 flame rating, suitable for high flex applications, mainly for video transfer. Applications include industrial automation and communication/control systems. The cable also includes a 90° left angle Type A male connector, optimized for space-constrained setups. These USB 3.0 cables support transfer rates up to 4.8 Gbps.
L-COM CAU3HFAMBBLK05M USB 3.0 High Flex Cable Specifications:
- Cable type: USB 3.0 high flex drag chain rated
- Connectors: Type A male (plug) with 90° angled version, Micro B male
- Shielding: Fully shielded with aluminum/polyester and braided shield
- Wire gauge: 22 AWG power conductors, 28 AWG twisted pairs, 26 AWG twisted pair
- Conductors: 2 twisted pairs + 1 unshielded twisted pair + 1 unshielded twisted pair
- Jacket material: PVC, black, conforming to style 20276, VW-1 flame rating
- Flex rating: 5 million cycles minimum
- Bend radius: Fixed – 5× O.D., Moving – 10× O.D.
- Overall diameter: approximately 0.276 inches (7.0 mm)
- Cable length options: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m
- External shield: Alum/poly, spiral shield, and braid for EMI/RFI protection
- Temperature rating: UL VW-1 flame rated
- Application: Industrial automation, camera systems, communication and control environments
Buy the Buy L-com USB 3.0 High Flex Drag Chain Part Number CAU3HFAMBBLK05M Online
Order the L-com USB 3.0 high flex drag chain rated cable assembly today to ensure reliable performance in continuous motion environments. Designed with molded connectors, full shielding, and flame-rated PVC jacket, this cable supports up to 5 million flex cycles, making it ideal for robotics, factory automation, and camera systems. The rugged construction guarantees longevity while maintaining high data transfer rates of 4.8 Gbps. Available in multiple lengths, it features a 90° Type A connector for space-constrained setups and provides superior EMI/RFI protection for demanding industrial environments.
Buy L-com CAU3HFAMBBLK05M now and experience unmatched durability and high-speed data transfer for industrial automation applications.
