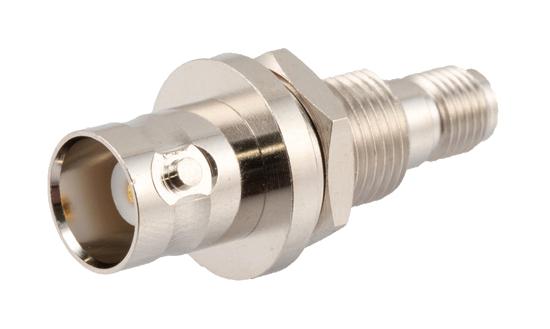

L-COM LCAD30027 RF Coaxial Adapter
The L-com RF Coaxial Adapter features SMA female and BNC female bulkhead connections, designed for reliable RF signal interfacing up to 4 GHz. Made from brass with a nickel finish, it offers robust durability, with gold-plated center contacts for improved conductivity. Suitable for applications requiring secure, high-frequency connections, this straight bulkhead adapter provides a stable connection interface, ensuring optimal performance for RF systems. Ideal for professional deployments in telecommunications, test equipment, and broadcast setups, the adapter’s design ensures easy installation and dependable operation within demanding environments.
L-COM LCAD30027 RF Coaxial Adapter Specifications:
- Impedance: 50 Ohm
- Frequency Range: Up to 4 GHz
- Operating Voltage (AC): 335 Vrms
- Dielectric Withstanding Voltage (AC): 1,000 Vrms
- Size: Length 1.32 inches (33.53 mm), Width 0.6 inches (15.24 mm)
- Material: Brass body and outer conductor, Phosphor Bronze contacts, Nickel finish
- Contact Material: Gold-plated Phosphor Bronze
- Insulation Material: PTFE
- Temperature Operating Range: -65°C to +165°C
- Application: RF, coaxial connections, telecommunications, test equipment
- Mounting Type: Bulkhead
- Connector Types: SMA Female, BNC Female
- Electrical Specifications: Voltage rating 335 Vrms, Dielectric voltage 1,000 Vrms
Buy the Buy Infinite Electronics RF Coaxial Adapter Part Number LCAD30027 Online
Purchase the Infinite Electronics RF Coaxial Adapter LCAD30027 online now and enjoy fast shipping. Designed for secure RF signal connections up to 4 GHz, this adapter features SMA female and BNC female bulkhead connectors, made from durable brass with gold-plated contacts for optimal conductivity. Its bulkhead mount ensures easy installation in professional RF systems used in telecommunications, broadcast, and test environments. Enhance your system’s reliability with a high-quality, durable coaxial adapter built to perform under demanding conditions. Order today for immediate dispatch and technical support.
Get Infinite Electronics LCAD30027 today—built for durable RF connections up to 4 GHz and reliable bulkhead mounting solutions.
Frequently Asked Questions
Where can I buy L-COM LCAD30027?
You can click on the BUY or RFQ button to purchase LCAD30027 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30027?
You can download the LCAD30027 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30027?
L-COM
