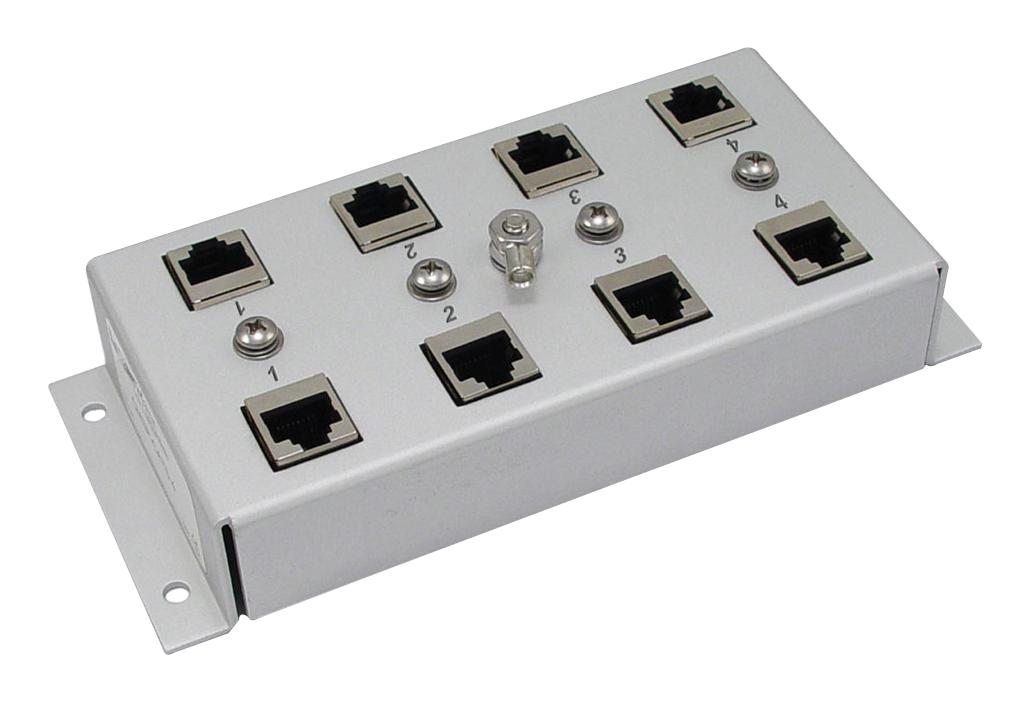

L-COM CMSPCAT6T4 Ethernet Surge Protector
The CMSP-CAT6T-4 lightning and surge protector offers robust protection for indoor 10/100/1000 Ethernet networks, supporting up to four lines with advanced gas discharge tubes for superior surge absorption. Compatible with CAT5, CAT5e, and CAT6 cables, it enables reliable PoE operation in PoE modes A and B, while minimizing high-speed signal distortion. Rugged and easy to install with shielded RJ-45 jacks, aluminum chassis, and mounting holes, it ensures dependable protection against lightning and power surges for critical network equipment.
L-COM CMSPCAT6T4 Ethernet Surge Protector Specifications:
- Ethernet Connectors: 8 shielded RJ-45 jacks
- Clamping Voltage Line to Ground: 90 Volts
- Clamping Voltage Line to Line: 90 Volts
- Data Line Impedance: 100 Ohms Balanced
- Supports PoE Mode A and B for power
- Chassis Material: Aluminum
- Grounding Lug: 10 AWG Max.
- Operating Temperature: -40°C to +80°C
- Dimensions: 3.1 x 7.0 x 1.2 inches (79 x 177.8 x 38.1 mm)
- Weight: 2.5 lbs (1.2 kg)
- RoHS Compliant: Yes
Buy the Buy L-com Surge Protector Part Number CMSPCAT6T4 Online
Secure your Ethernet infrastructure by ordering the L-com surge protector CMSPCAT6T4 online. Designed for indoor use, it supports four Ethernet lines with advanced gas discharge tubes for superior surge protection. Compatible with CAT5, CAT5e, and CAT6 cables, it handles both PoE modes A and B, ensuring reliable PoE-powered devices. Its rugged aluminum chassis and shielded RJ-45 jacks make installation straightforward, providing durable, dependable protection against lightning and electrical surges to keep your network equipment safe and operational.
Order your L-com Series CMSPCAT6T4 surge protector today and safeguard your Ethernet connections with reliable lightning and power surge protection.
Frequently Asked Questions
Where can I buy L-COM CMSPCAT6T4?
You can click on the BUY or RFQ button to purchase CMSPCAT6T4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CMSPCAT6T4?
You can download the CMSPCAT6T4 datasheet or visit the L-COM website for support.
Who is the manufacturer of CMSPCAT6T4?
L-COM
