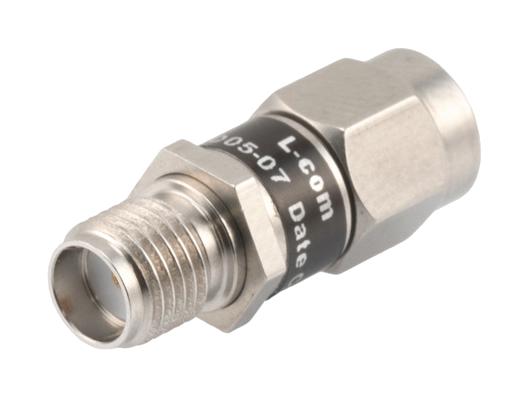

L-COM LCAT100507 RF Fixed Attenuator
The LCAT1005-07 is a high-quality, fixed RF attenuator rated for 2 Watts, operating from DC to 18 GHz. It features SMA female to SMA male connectors with stainless steel bodies for durability and corrosion resistance. This attenuator offers a nominal attenuation of 7 dB with an accuracy of ±0.5 dB and a VSWR of less than 1.30:1, ensuring precise signal reduction. Suitable for instrumentation, prototyping, and precision measurements, it can handle peak input power of 500 Watts and continuous power of 2 Watts, making it ideal for protecting sensitive equipment and impedance matching in RF systems.
L-COM LCAT100507 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 7 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: <1.30:1
- Input Power, Peak: 500 Watts (40 us pulse)
- Input Power, CW: 2 Watts
- Body Material: Stainless Steel
- Connector Type: SMA Female to SMA Male
- Operating Temperature Range: -55°C to +125°C
- Size: Length 0.85 in [21.59 mm], Diameter 0.312 in [7.92 mm]
- Weight: 0.0088 lbs [3.99 g]
- Design: Fixed, Connectorized Module
Buy the INFINITG Series RF Attenuator: LCAT1005-07
Order the INFINITG LCAT1005-07 RF fixed attenuator online today and enjoy a durable stainless steel body, SMA connectors, and a wide frequency range up to 18 GHz. This 2W rated device provides precise 7 dB attenuation with ±0.5 dB accuracy, ensuring optimal signal reduction for instrumentation, prototyping, and measurement applications. Its compact size, robust construction, and high power handling make it ideal for protecting equipment, impedance matching, and extending measurement system capabilities. Purchase now for fast shipping and reliable performance.
Buy INFINITG LCAT1005-07 fixed RF attenuator now and experience unmatched reliability and performance in RF signal attenuation.
Frequently Asked Questions
Where can I buy L-COM LCAT100507?
You can click on the BUY or RFQ button to purchase LCAT100507 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100507?
You can download the LCAT100507 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100507?
L-COM
