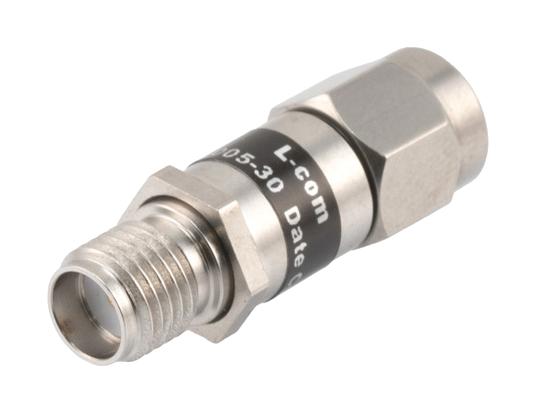

L-COM LCAT100530 RF Fixed Attenuator
The 2W/30 dB Fixed Attenuator by Infinite Electronics is a high-quality RF component designed for precise signal attenuation up to 18 GHz. Featuring a stainless steel body, SMA male to SMA female connectors, and an impedance of 50 Ohms, it ensures durability and reliable performance in instrumentation, prototyping, and measurement applications. Rated for 2 Watts continuous power and up to 500 Watts pulse power, it provides accurate attenuation of 30 dB with a VSWR of less than 1.30:1, suitable for protecting sensitive equipment and optimizing signal levels in advanced RF systems.
L-COM LCAT100530 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 30 dB
- Attenuation Accuracy: ±0.8 dB
- VSWR: <1.30:1
- Input Power (CW): 2 Watts, Peak: 500 Watts
- Operating Temperature: -55°C to +125°C
- Body Material: Stainless Steel
- Connectors: SMA Male to SMA Female
- Size: Length 0.98 in [24.89 mm], Diameter 0.312 in [7.92 mm]
- Weight: 0.011 lbs [4.99 g]
Buy the INFINITG Series RF Attenuator: LCAT1005-30
Enhance your RF measurement setup with the INFINITG RF Fixed Attenuator offering 30 dB attenuation across DC to 18 GHz. Crafted with a stainless steel body and SMA connectors, this durable component features a 2W continuous power rating and a VSWR below 1.30:1 for reliable signal control. Ideal for instrumentation, testing, and signal protection, it ensures precise attenuation essential for high-frequency signal management. Order online now to optimize your RF system efficiency with this robust, high-performance attenuator designed for demanding applications.
Get INFINITG RF attenuator LCAT1005-30 today—built for precision and long-lasting durability in RF systems.
Frequently Asked Questions
Where can I buy L-COM LCAT100530?
You can click on the BUY or RFQ button to purchase LCAT100530 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100530?
You can download the LCAT100530 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100530?
L-COM
