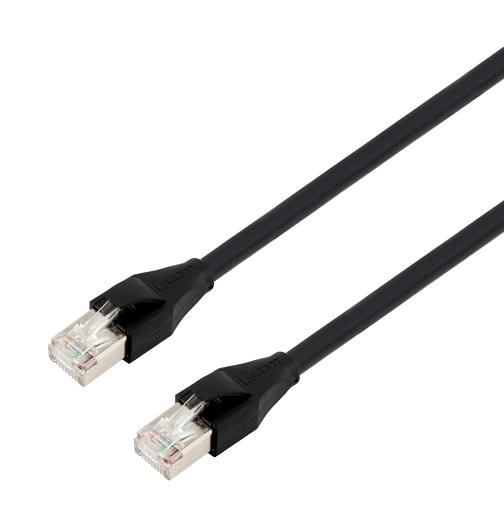

L-COM TRD795BLK3M Shielded Ethernet Cable
L-com's double-shielded Category 7 Ethernet cable features an overall braided shield around individually shielded twisted pairs, suitable for high-noise environments. The cable has a durable PVC jacket in black, is flame tested according to IEC 60332-1 standards, and uses 26 AWG stranded conductors for flexibility. It is wired to TIA specifications with RJ45 male plugs on each end. Rated for 1 gigabit speeds and compatible with up to 10G Category 7 and Category 6a applications, it supports data centers and high-speed network deployments. Operating within a temperature range of -10°C to +80°C, it is rated for 30V and suitable for communication and networking applications.
L-COM TRD795BLK3M Shielded Ethernet Cable Specifications:
- Conductor Material: 26 AWG stranded copper
- Shielding: Aluminum/polyester foil shielding per pair, overall tinned copper braid
- Jacket Material: PVC, color: black
- Jacket Diameter: 0.236 inches (6.0 mm)
- Operating Temperature: -10°C to +80°C
- Voltage Rating: 30V
- Connectivity: RJ45 shielded modular plugs with snagless boot, gold-plated contacts
- Certifications: IEC 60332-1 flame test, TIA-1096 compliance, UL recognized
- Maximum Length: Over 10 meters (32.8 ft) rated for channel operation
- Application: High-noise environments, high-speed data transfer, data centers, networking
- Wiring Map: TIA-568A and TIA-568B compatible, Cat 7 and Cat 6a compatible
Buy the L-com TRD795BLK3M – Reliable Ethernet Cable for Industrial Applications
Purchase L-com shielded Ethernet cable TRD795BLK3M today to ensure reliable, high-speed network connectivity in demanding industrial and data center environments. This durable, double-shielded cable with braided outer shield and individually shielded twisted pairs guarantees minimal interference and maximizes data integrity. Ideal for high-noise settings, supporting speeds up to 10G, and built with quality materials such as 26 AWG stranded copper conductors, PVC jacket, and gold-plated RJ45 connectors, it offers excellent performance for professionals requiring robust networking solutions. Order now for fast, secure online shipping.
Get L-com TRD795BLK3M today—built for high-speed data transfer and durable high-noise environment performance.
Frequently Asked Questions
Where can I buy L-COM TRD795BLK3M?
You can click on the BUY or RFQ button to purchase TRD795BLK3M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795BLK3M?
You can download the TRD795BLK3M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795BLK3M?
L-COM
