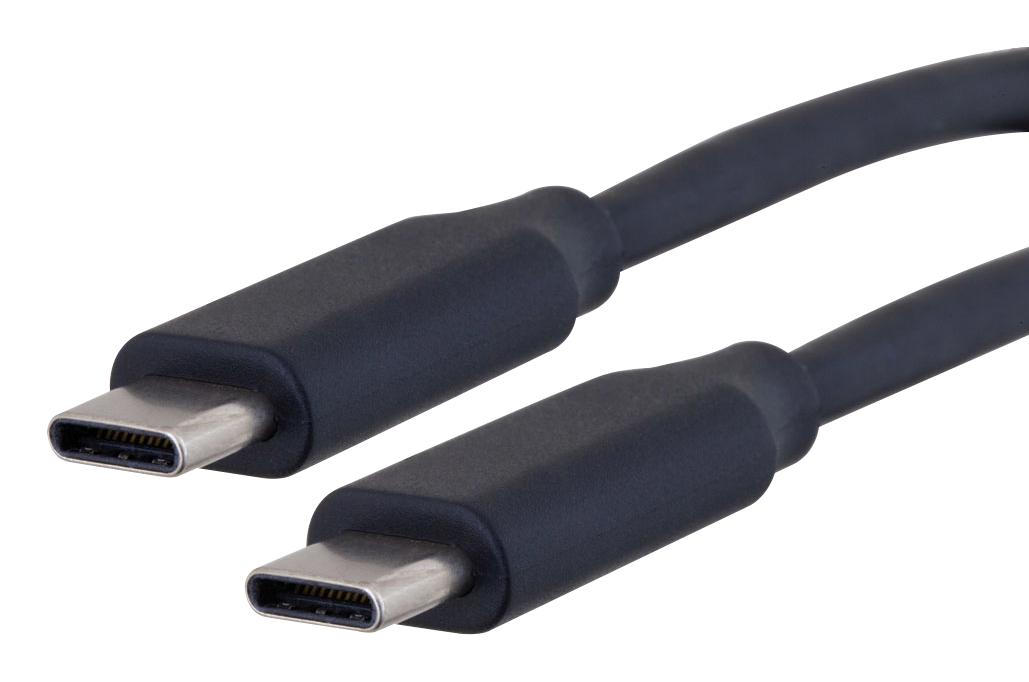

L-COM U1A0000305M USB Type C Cable
This USB 3.1 Type C cable features gold-plated contacts, a low smoke zero halogen (LSZH) black jacket, and complies with RoHS directives. Designed for high-speed data transfer up to 10Gbps, it includes an E-mark chip for certification. The cable is 0.5 meters long, with woven braid for durability and insulation resistance tested at 10M ohms minimum. It withstands electrical testing including open-short and H-POT at 100V AC, ensuring reliable connectivity for professional and consumer electronics.
L-COM U1A0000305M USB Type C Cable Specifications:
- Connector Type: USB 3.1 Type C Plug
- Data Transfer Rate: 10Gbps
- Cable Length: 0.5 meters (1.64 feet)
- Jacket Material: Low Smoke Zero Halogen (LSZH) Black
- Wire Gauge: 32AWG*1 P+E (4C) and 23AWG* IC
- Shielding: Braid 85%
- Contacts: Gold plated
- Shell Plating: Nickel
- Electrical Tests: Open-short, H-POT at 100V AC/0.1S, Insulation Resistance >10MΩ at 100V DC
- Insulation Resistance: ≥10MΩ
- Conductor Resistance: ≤3Ω
- Certifications: RoHS, UL, CE 2011/65/EU
- Packaging: Individually packed according to specified standards
- Dimensions: Length 0.5 meters, diameter 4.8mm
- Operating Temperature: Not specified, typical for high-quality data cables
Buy the Brand Series USB Type C Cable: U1A0000305M
Experience high-speed data transfer with the USB 3.1 Type C cable. Featuring gold-plated contacts, LSZH jacket, and RoHS compliance, this 0.5-meter cable ensures reliable and safe connectivity. Designed for durability with a braided shield, it supports transfer rates up to 10Gbps, perfect for data-intensive applications. Suitable for professional and personal use, it guarantees excellent performance, easy plug-and-play operation, and robust build quality. Purchase online today to upgrade your connection experience effortlessly.
Order your Brand Series USB Type C Cable U1A0000305M today and give your electronic devices fast, reliable connectivity with durable construction and high transfer speeds.
Frequently Asked Questions
Where can I buy L-COM U1A0000305M?
You can click on the BUY or RFQ button to purchase U1A0000305M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U1A0000305M?
You can download the U1A0000305M datasheet or visit the L-COM website for support.
Who is the manufacturer of U1A0000305M?
L-COM
