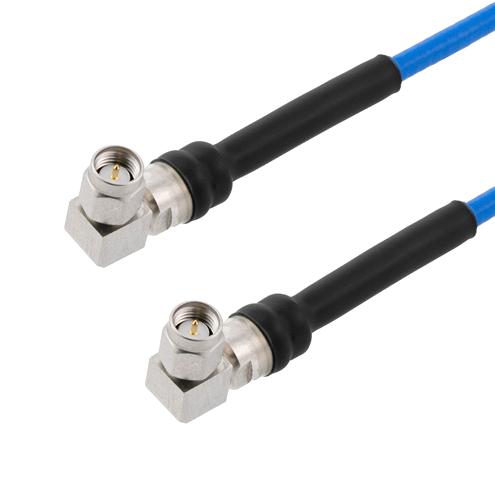

L-COM LCCA30004FT6 SMA Right Angle Coaxial Cable
L-com's LCCA30004-FT6 is a 6.0 ft flexible SMA male right angle to SMA male right angle coaxial cable assembly using 402SS Series coax with a heavy-duty boot. Operating up to 18 GHz, it features double shielding with a silver-plated copper braid over a spiral strip, providing shielding effectiveness greater than 110dB. The lightweight cable has a 50-ohm impedance, PTFE dielectric, and durable stainless-steel connectors, perfect for tight spaces and demanding RF applications such as laboratory tests and general purpose use.
L-COM LCCA30004FT6 SMA Right Angle Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Connector Type: SMA Male Right Angle
- Connector Material: Brass with Gold plating
- Cable Type: 402SS Series
- Cable Length: 6.0 ft
- Cable Diameter: 0.315 in
- Shielding: Silver Plated Copper Tape and Braid, Effectiveness > 110dB
- Dielectric: PTFE
- Inner Conductor: Stranded Copper, Silver Plated
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Operating Temperature Range: -55°C to +165°C
- Heavy Duty Heat Shrink Boot for strain relief
- Weight: ~122.47 g
- Repeated Minimum Bend Radius: 1 inch
Buy the Buy INFINITG SMA Male Right Angle Cable Part Number LCCA30004FT6 Online
Purchase the INFINITG SMA Right Angle Coaxial Cable LCCA30004-FT6 online today. This 6 ft high-performance RF cable features 18 GHz maximum frequency, double shielding for superior signal integrity, and heavy-duty heat shrink boots. Its compact right angle connectors and lightweight design make it ideal for tight spaces and demanding environments. Enjoy quick same-day shipping, custom configurations, and guaranteed quality. Perfect for laboratory, test systems, and general RF applications needing reliable, flexible connectivity with excellent shielding and durability.
Order your INFINITG Series LCCA30004-FT6 coaxial cable today and enhance your RF connectivity with a durable, high-frequency rated assembly suitable for tight spaces.
Frequently Asked Questions
Where can I buy L-COM LCCA30004FT6?
You can click on the BUY or RFQ button to purchase LCCA30004FT6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30004FT6?
You can download the LCCA30004FT6 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30004FT6?
L-COM
